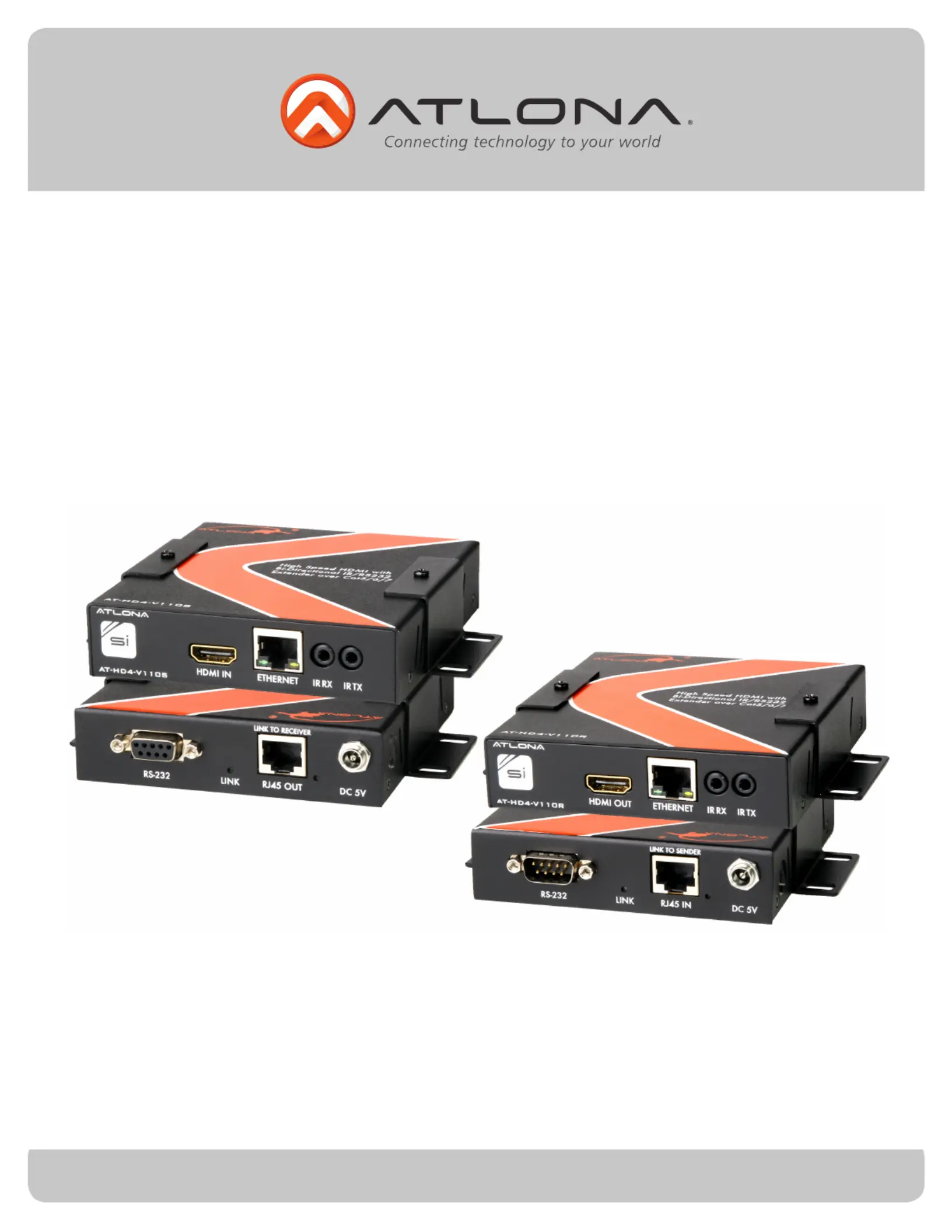

User Manual

Atlona HDMI with RS232 and with

Bi-Directional IR Extenders

over CAT5/6/7

AT-HD4-V110SR

Toll free: 1-877-536-3976

Local: 1-408-962-0515

atlona.com

Toll free: 1-877-536-3976

Local: 1-408-962-0515

atlona.com

1. Introduction ............................................................................ 3

2. Package Contents ............................................................................ 3

3. Features ............................................................................ 3

4. Specification ............................................................................ 4

5. Panel Description ............................................................................ 4

5.1. Transmitting Module ............................................................................ 4

5.1.1. Front Panel ............................................................................ 4

5.1.2. Rear Panel ............................................................................ 5

5.2. Receiving Module ............................................................................ 5

5.2.1. Front Panel ............................................................................ 5

5.2.2. Rear Panel ............................................................................ 5

6. Connection and Operation ............................................................................ 6

7. Connection Diagram ............................................................................ 6

8. Troubleshooting ............................................................................ 7

9. Atlona Product Registration ............................................................................ 7

10. Safety Information ............................................................................ 8

11. Warranty ............................................................................ 9

Table of Contents

Toll free: 1-877-536-3976

Local: 1-408-962-0515

atlona.com

• 1 x AT-HD4-V110S (transmitter module)

• 1 x AT-HD4-V110R (receiving module)

• 2 x 5v Power supplies (Universal 110/240V)

• 1 x Set of Wall Mounting Ears

• 1 x IR Emitter sensor

• 1 x IR Receiver sensor

• 1 x Instructions manual

• Transmits HDMI (Digital Video and Audio), RS232 and Bi-Directional IR up to 330ft (100m)

• Supports full uncompressed HD video

• Supports high resolution video HD: 480i, 576i, 480p, 576p, 720p, 1080i, 1080p (24/30/50/60Hz),

2k (2048x1080p) and 4kx2K (4096x2160p) - 4 times higher than 1080p

• Supports high resolution Video VESA: 640x480, 800x600, 1024x768, 1280x800, 1280x768,

1280x1024, 1680x1050, 1600x1200, 1920x1080, 1920x1200, 2048x1080p, 4096x2160p - 4 times

higher than 1080p

• Full HD and 3D support - all 7 3D formats

• Fully EDID Compliant

• Fully HDCP Compliant

• Supports all VESA formats which is perfect when used with specialized projectors or commercial

LCD panels.

• Enables 10.2Gbps of HDMI (including HDCP) over 330ft Cat5/6/7 cable.

• Highest Audio Formats: Dolby TrueHD & DTS Master Audio 7.1 (and all below)

• Supports Refresh Rates: 24Hz, 30Hz, 50, 60Hz

• Supports bi-directional IR transmission, perfect for Control4, RTI, HAI users as this ability allows

sending IR to the remote locations from the control systems and from the remote locations to the

control systems.

• Supports RS-232 pass-though, perfect for integrating a 3rd party control system.

• Supports transmission distances up to 330ft @ at full resolution

• Wall Mountable, mounting ears are included.

• Locking Power Supplies

• Easy to install, simple to operate and the most effective solution for long signal extension.

• Ideal for whole house A/V, video broadcasting, remote monitoring, presentations and educational

facilities.

The Atlona AT-HD4-V110SR is HDMI with RS232 and bi-directional IR Extender Kit over Cat5/6/7, designed

on HDBaseT technology which allows full 3D and 4Kx2K (4 times the 1080p) up to 330ft.

The HD4-V110SR is capable of transmitting Ethernet channel from one location to another, perfect for

digital signage applications.

Introduction

Package Contents

Features

Produkspesifikasjoner

Merke:	Atlona
Kategori:	AV ekstender
Modell:	AT-HD4-V110SR
Vekt:	950 g
LED-indikatorer:	Ja
Bruksanvisning:	Ja
Maksimal oppløsning:	4096 x 2304 piksler
HDMI inn:	1
Dimensjoner (B x D x H):	151.8 x 104.9 x 30 mm
Antall HDMI-utganger:	1
Driftsspenning:	5 V
Produktfarge:	Black, Red
Støttede grafikkoppløsninger:	1920 x 1080 (HD 1080)
Støttede videofunksjoner:	1080p
Modell/Type:	AV-sender og -mottaker
RJ-45-inngangsporter:	1
Ekstern strømadapter:	Ja
DC-inngangskontakt:	Ja
Lydsystem:	Flerkanal
Maksimal overføring avstand:	100 m
Kabeltyper som støttes:	Cat5, Cat5e, Cat6, Cat7
RJ-45-utgangsporter:	1
