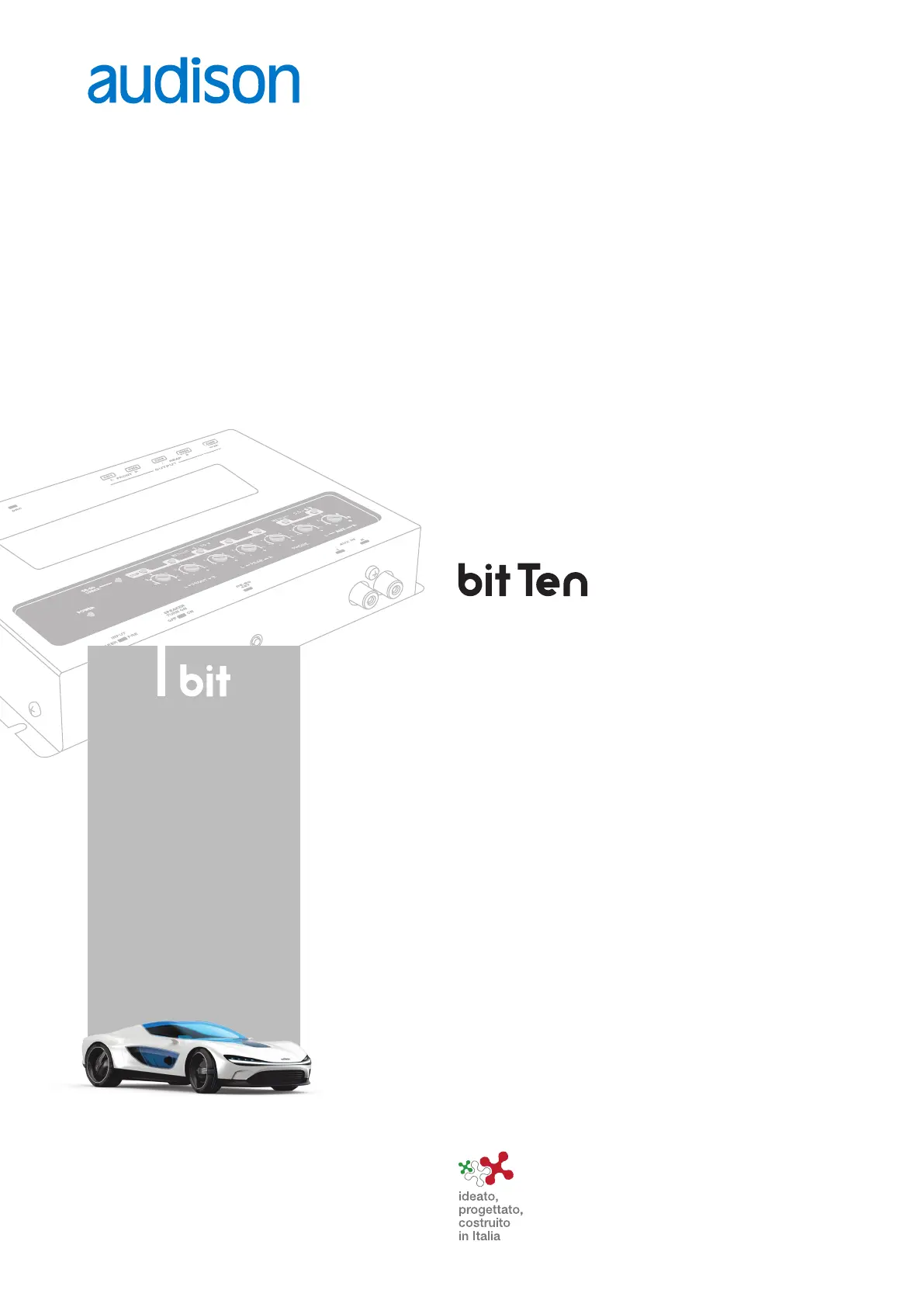

Audison bit Ten Bruksanvisning
Les nedenfor 📖 manual på norsk for Audison bit Ten (49 sider) i kategorien Prosessor. Denne guiden var nyttig for 4 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/49
rev. 1.1h
ADVANCED
MANUAL
audison.com
ADVANCED MANUAL / bit Ten /
2
Index
1. PRODUCT DESCRIPTION - PRECAUTIONARY NOTES ..................................................................................................03
2. PACKAGING CONTENTS ........................................................................................................................................................03
3. bit Ten AND DRC INSTALLATION ........................................................................................................................................04
4. CONNECTION PANELS - DESCRIPTION ...........................................................................................................................05
4.1 Multipolar connector ......................................................................................................................................................05
4.2 Input signals ...................................................................................................................................................................06
4.3 Output signals ................................................................................................................................................................07
4.4 Inputs - remote control outputs and power supply ................................................................................................07
4.5 Controls and settings ...................................................................................................................................................08
5. CONNECTIONS ........................................................................................................................................................................09
5.1 Power supply and remote turn on ...............................................................................................................................09
5.2 How to turn the bit Ten on / off ...................................................................................................................................09
5.3 Personal computer and Digital Remote Control (DRC) ..........................................................................................10
5.4 High-Level input signals ...............................................................................................................................................10
5.5 Low-Level input signals ................................................................................................................................................11
5.6 Connection with hands-free phone kit ......................................................................................................................11
5.7 Output signals ................................................................................................................................................................12
6. HOW TO SETUP THE bit Ten WITHOUT A PC ...................................................................................................................13
6.1 How to calibrate the MASTER Front-Rear input sensitivity ...................................................................................13
6.2 Source de-equalization .................................................................................................................................................14
6.3 Amplifiers sensitivity calibration .................................................................................................................................16
6.4 How to calibrate the PHONE and AUX IN INPUT sensitivities ...............................................................................16
7. bit Ten SOFTWARE AND DRIVERS INSTALLATION / UNINSTALLATION GUIDE ...................................................... 17
7.1 PC Software installation guide .....................................................................................................................................17
7.2 Drivers installation guide ..............................................................................................................................................19
7.3 bit Ten software uninstall .............................................................................................................................................20
8. bit Ten INSTALLATION GUIDE USING A PC ......................................................................................................................21
8.1 Selecting the MASTER (Front / Rear) inputs and outputs - TARGET Mode .......................................................21
8.2 OFFLINE mode ................................................................................................................................................................28
8.3 Adjusting acoustic reproduction .................................................................................................................................29
8.4 Device info .......................................................................................................................................................................29
8.5 FILE main menu ..............................................................................................................................................................30
8.6 CONFIG main menu ......................................................................................................................................................31
8.7 SELECTED INPUT ...........................................................................................................................................................32
8.8 CHANNEL MAP ...............................................................................................................................................................32
8.9 SELECT CHANNEL .........................................................................................................................................................32
8.10 FILTER SETTINGS ........................................................................................................................................................33
8.11 Set Distance and Delay ...............................................................................................................................................35
8.12 Graphic equalizer .........................................................................................................................................................37
8.13 Output level ....................................................................................................................................................................38
8.14 Memory ..........................................................................................................................................................................39
9. TROUBLESHOOTING ..............................................................................................................................................................40
9.1 Synchronization with a PC ............................................................................................................................................40
9.2 Background noise ...........................................................................................................................................................40
9.3 Firmware upgrade ..........................................................................................................................................................40
9.4 RESCUE MODE ................................................................................................................................................................43
10. DRC - DIGITAL REMOTE CONTROL ...................................................................................................................................44
10.1 Phone call ......................................................................................................................................................................45
10.2 SEL button - functions ................................................................................................................................................45
10.3 Bypassing the DRC ......................................................................................................................................................45
10.4 DRC firmware upgrade ...............................................................................................................................................46
11. bit Ten ACCESSORIES ...........................................................................................................................................................47
11.1 DRC cable extension kit ..............................................................................................................................................47
12. TECHNICAL SPECIFICATIONS ............................................................................................................................................48
ADVANCED MANUAL / bit Ten /
3
WARNING: 1- a PC provided with Windows XP, Windows Vista, Windows 7 or Windows 8 operating system,1.5 GHz
minimum processor speed, 1 GB RAM minimum memory and a graphics card with a minimum
resolution of 1024 x 600 pixels are required to install the software and setup the .
2- Before connecting your bit Ten, carefully read this manual. Improper connections may cause damage to
the bit Ten or to the speakers in the car audio system.
1. PRODUCT DESCRIPTION / PRECAUTIONARY NOTES
The bit Ten is a digital signal processor essential to maximize the acoustic performance of your car audio system.
It consists of a 32-bit DSP processor and 24-bit AD and DA converters.
It can connect to any factory system, even in vehicles featuring an integrated audio processor, since, thanks to the
de-equalization function, the bit Ten will send back a linear signal.
It features 7 signal inputs: 4 Hi-Level, 1 Aux Stereo, 1 Phone and provides 5 PRE OUT analog outputs.
Each output channel has a 31-band equalizer available. It also features a 66-frequency electronic crossover as
well as BUTTERWORTH or LINKWITZ filters with 6-24 dB slopes and a digital time delay line. The user can select
adjustments that allow him or her to interact with the bit Ten through a remote control device called DRC.
2. PACKAGING CONTENTS
- bit Ten - Signal Interface Processor
- DRC (Digital Remote Control) control panel
OPTIONAL:
- 2 fixing brackets with 2.9 x 6.5 mm
self-tapping, cross-head screws
- 4.5 m / 177.16” DRC - AC Link cable
- Power supply cable / Remote / Inputs
- 3.0 m / 118.11” USB cable
- 4 of 4.2 x 20 mm self-tapping,
cross-head fixing screws
- CD ROM with:
bit Ten 1.0 software
This advanced manual (.pdf format)
Test tracks
- Quick start guide
- Warranty
1/2
