USER’S
MANUAL
AP5.9
USER’S MANUAL
2
AP5.9 bit /
Index
1. PRODUCT DESCRIPTION / PRECAUTIONS .......................................................................................................................... 3
2. PACKAGE CONTENTS ...............................................................................................................................................................3
3. AP5.9 bit and DRC INSTALLATION ........................................................................................................................................4
4. CONNECTION PANEL DESCRIPTION .....................................................................................................................................5
1 POWER ..............................................................................................................................................................................5
2 INPUTS / REM IN-OUT...................................................................................................................................................6
3 ASP AUTOMATIC SPEAKER PRESENCE ....................................................................................................................7
4 SPEAKER OUT ..................................................................................................................................................................7
5 OPTICAL IN .......................................................................................................................................................................8
6 DSP OUT ...........................................................................................................................................................................8
7 DRC ................................................................................................................................................................................9
8 USB ..............................................................................................................................................................................10
9 UPGRADE OFF-ON ........................................................................................................................................................10
10 PRESET ...........................................................................................................................................................................10
11 FUSE ..............................................................................................................................................................................10
12 LOGO STATUS ...............................................................................................................................................................10
5. CONNECTIONS .........................................................................................................................................................................11
5.1 POWER SUPPLY AND REMOTE TURN ON. .............................................................................................................11
5.2 INPUT SIGNALS ............................................................................................................................................................12
5.3 DIGITAL OPTICAL IN INPUT SIGNALS .....................................................................................................................13
5.4 OUTPUT SIGNALS ........................................................................................................................................................14
5.4.1 PRESET 0: DEFAULT: 2 WAY ACTIVE FRONT + SUBWOOFER ................................................................15
5.4.2 PRESET 1: FRONT + REAR + SUBWOOFER .................................................................................................16
5.4.3 PRESET 2: 2 WAY ACTIVE FRONT + SUBWOOFER .................................................................................... 17
5.4.4 PRESET 3: 2 WAY ACTIVE FRONT + SUBWOOFER ....................................................................................18
5.4.5 PRESET 4: 3 WAY ACTIVE FRONT + SUBWOOFER .................................................................................... 19
5.4.6 PRESET 5: 3 WAY ACTIVE FRONT + REAR + SUBWOOFER .....................................................................20
5.4.7 PRESET 6: 2 WAY ACTIVE FRONT + REAR + SUBWOOFER .....................................................................21
5.4.8 PRESET
7
: 2 WAY ACTIVE FRONT + REAR + 2 WAY CENTER CHANNEL +
SUBWOOFER
............................22
5.5 PERSONAL COMPUTER AND DIGITAL REMOTE CONTROL (DRC). ................................................................... 23
6. GUIDE FOR INSTALLING/UNINSTALLING PRIMA SOFTWARE AND DRIVERS .......................................................... 24
6.1 GUIDED PROCEDURE FOR PC SOFTWARE INSTALLATION ................................................................................24
6.2 GUIDED PROCEDURE FOR DRIVER INSTALLATION .............................................................................................26
6.3 UNINSTALLING AP5.9 bit SOFTWARE ....................................................................................................................27
7. HOW TO SET UP AP 8.9 BIT WITH A PC AP5.9 bit WITH A PC ....................................................................................28
7.1 OFFLINE MODE .............................................................................................................................................................. 28
7.2 TARGET MODE ..............................................................................................................................................................29
7.3 ADJUSTING ACOUSTIC REPRODUCTION ...............................................................................................................35
7.3.1 DEVICE INFO ......................................................................................................................................................35
7.3.2 FILE MAIN MENU ..............................................................................................................................................36
7.3.3 MEMORIES MAIN MENU .................................................................................................................................36
7.3.4 SETTINGS MAIN MENU ................................................................................................................................... 37
7.3.5 DEVICE MAIN MENU ........................................................................................................................................40
7.3.6 HELP MAIN MENU ............................................................................................................................................41
7.3.7 SELECTED INPUT .............................................................................................................................................41
7.3.8 CHANNEL MAP .................................................................................................................................................. 41
7.3.9 SELECT CHANNEL ............................................................................................................................................ 42
7.3.10 FILTER SETTINGS .............................................................................................................................................42
7.3.11 SET DISTANCE AND DELAY ............................................................................................................................44
7.3.12 PARAMETRIC EQUALIZER ...............................................................................................................................47
7.3.13 OUTPUT LEVEL .................................................................................................................................................48
7.3.14 MEMORY ............................................................................................................................................................. 48
7.3.15 STATUS BAR ......................................................................................................................................................48
8. TROUBLESHOOTING ...............................................................................................................................................................49
8.1 SYNCHRONIZATION WITH A PC ................................................................................................................................49
8.2 BACKGROUND NOISE ..................................................................................................................................................49
8.3 FIRMWARE UPGRADE .................................................................................................................................................. 49
9. DRC - DIGITAL REMOTE CONTROL (OPTIONAL) .............................................................................................................52
9.1 SEL BUTTON FUNCTIONS ..........................................................................................................................................53
9.2 OPERATIONAL ERROR MESSAGES ........................................................................................................................... 53
10. ACCESSORIES ...........................................................................................................................................................................54
10.1 ASP - AUTOMATIC SPEAKER PRESENCE ..................................................................................................................54
10.2 ACP2 - 2 RCA ADAPTER CABLE ..................................................................................................................................54
10.3 ACP6 - 6 RCA ADAPTER CABLE ..................................................................................................................................54
10.4 APL 2 - AP4 D / AP1 D LINK CABLE ............................................................................................................................54
10.5 APK 3 - AUDISON PRIMA TOWER KIT 3 ..................................................................................................................... 55
10.6 DRC DIGITAL REMOTE CONTROL ...............................................................................................................................55
10.7 ECK DRC - CABLE EXTENSION KIT .............................................................................................................................55
10.8 OP 1.5 TOSLINK OPTICAL CABLE 1,5 m / 59.05 in. .................................................................................................55
10.9 OP 4.5 TOSLINK OPTICAL CABLE 4,5 m / 177.16 in................................................................................................56
10.10 STA - F/F SOCKET TOSLINK ADAPTER.. ..................................................................................................................56
10.11 SFC SAMPLING FREQUENCY CONVERTER.. ..........................................................................................................56
11. TECHNICAL SPECIFICATIONS ..............................................................................................................................................57
USER’S MANUAL
3
AP5.9 bit /
1. PRODUCT DESCRIPTION / PRECAUTIONS
2. PACKAGE CONTENTS
The AP5.9 bit is a 5-channel amplifier with a 32-bit, 147-MHz digital signal processor (DSP) and 24-bit Analog-Digital
and Digital-Analog converters, essential to optimize the acoustic performance of your Car Audio entertainment
system. It connects to any standard system, even in vehicles with an integrated audio processor, since the AP5.9 bit
sends back a linear signal via a de-equalization function.
It comes with 7 signal inputs including 6 Hi-Level and 1 S/PDIF optical digital inputs and provides 5 amplified
outputs and 4 relays for analog amplifiers to give a 9-channel amplified system.
Each output channel features a graphically adjustable parametric equalizer group, a 68-frequency electronic
crossover as well as BUTTERWORTH or LINKWITZ filters with 6-24 dB slopes and a digital time delay line.
The user can adjust the AP5.9 bit settings through the DRC remote control device.
WARNING: 1. a PC provided with Windows XP, Windows Vista, Windows 7 or Windows 8 operating system, 1.5 GHz minimum
processor speed, 1 GB RAM minimum memory and a 1024 x 600 pixels minimum resolution graphics card as
well as at least 512 MB of available hard-disk space are required to install the software and setup the product.
2. Before connecting the product, carefully read this manual. Improper connections may cause damage
to
AP5.9 bit
or to the speakers in your car audio system.
1/2

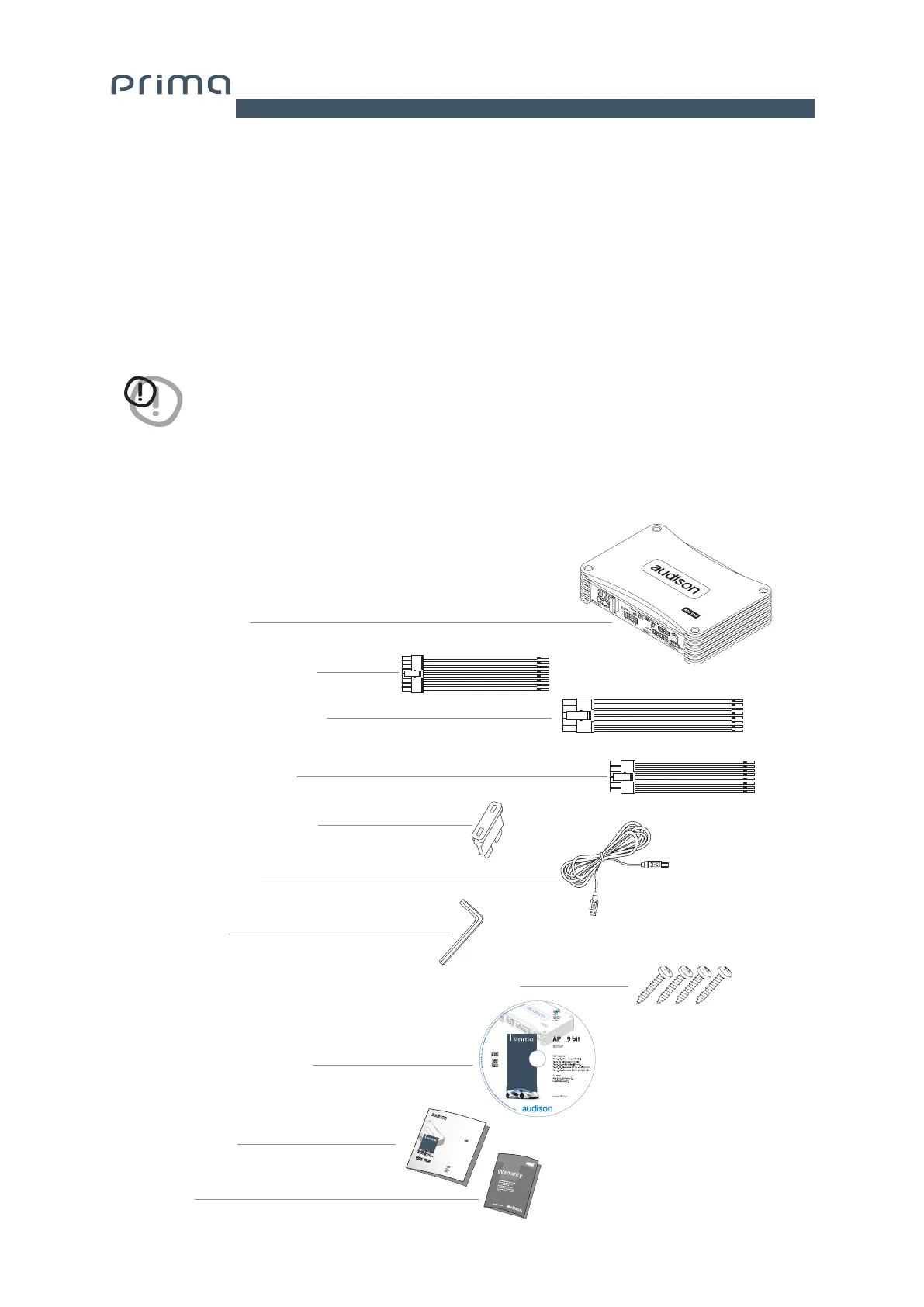

- Multipolar cable, Inputs/Rem:
- Multipolar cable, Speakers out:
- NR. 1 - 30A replacement fuse:
- 1.8 m USB cable:
- 2.5 mm hex key:
- NR. 4 - 4.2 x 50 mm self-tapping, cross head mounting screws:
- AP5.9 bit amplifier
- Warranty
- Quick start guide
- CD ROM containing:
AP5.9 bit Software
This owner’s manual (.pdf)
Audio Test Tracks
QUICK
START
GUIDE
AP5.9
30 A
CD 1.0A
5
- Multipolar cable, DSP out:
