Side 1/6

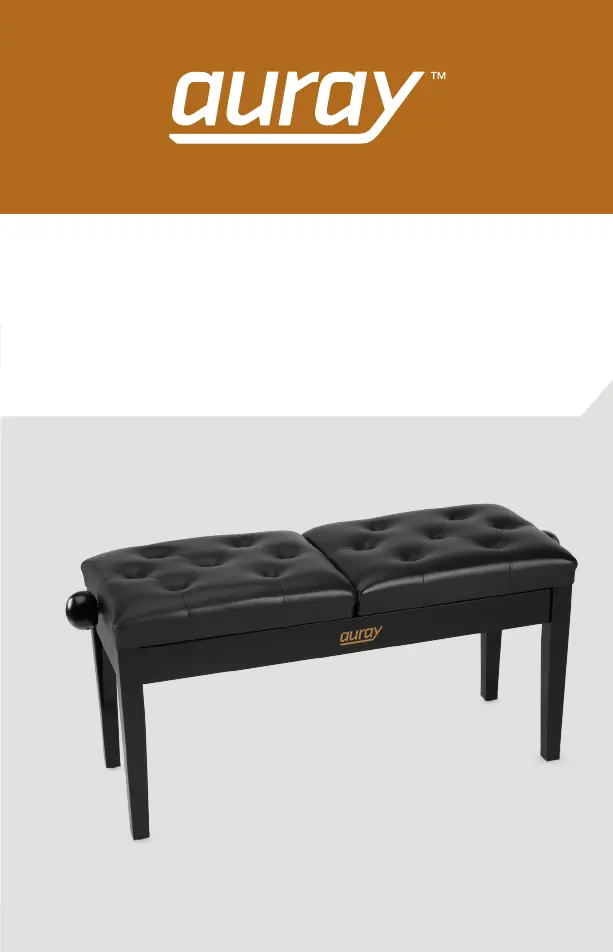

Wooden Piano Bench for Two
with Individual Height Adjustment
PBS-TS
Owner’s Manual
GG1
65 PBS-TSPBS-TS
Owner’s ManualOwner’s Manual
Specifications
This AURAY product is warranted to the original purchaser to be
free from defects in materials and workmanship under normal
consumer use for a period of one (1) year from the original purchase
date or thirty (30) days after replacement, whichever occurs later.
The warranty provider’s responsibility with respect to this limited
warranty shall be limited solely to repair or replacement, at the
provider’s discretion, of any product that fails during normal use of
this product in its intended manner and in its intended environment.
Inoperability of the product or part(s) shall be determined by
the warranty provider. If the product has been discontinued, the
warranty provider reserves the right to replace it with a model of
equivalent quality and function.
This warranty does not cover damage or defect caused by misuse,
neglect, accident, alteration, abuse, improper installation or
maintenance. EXCEPT AS PROVIDED HEREIN, THE WARRANTY
PROVIDER MAKES NEITHER ANY EXPRESS WARRANTIES NOR
ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO
ANY IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS
FOR A PARTICULAR PURPOSE. This warranty provides you with
specific legal rights, and you may also have additional rights that
vary from state to state.
To obtain warranty coverage, contact the Auray Customer Service
Department to obtain a return merchandise authorization (“RMA”)
number, and return the defective product to Auray along with the
RMA number and proof of purchase. Shipment of the defective
product is at the purchaser’s own risk and expense.
For more information or to arrange service, visit aurayaudio.com
or call Customer Service at 212-594-2353.
Product warranty provided by the Gradus Group.
www.gradusgroup.com
AURAY is a registered trademark of the Gradus Group.
© 2016 Gradus Group LLC. All Rights Reserved.
One-Year Limited Warranty
Seat dimensions (W ¬ D): 18.2” × 13.8” (46.25 × 35 cm)
Weight capacity: 400 lb. (200 kg)
Bench width: 36.4” (92.5 cm)
Height: 19.3" - 21.4" (49 - 58.8 cm)
Weight: 27 lb. (12.3 kg)
!
Warnings
3 42 PBS-TS PBS-TSPBS-TS
Owner’s Manual Owner’s ManualOwner’s Manual
Thank you for choosing Auray.
This elegant piano bench for two is suitable for use in a
concert hall, studio, or at home. It features genuine wood
construction and dual tufted bi-cast leather seats for
comfort through many hours at the keyboard. The dual-
seat design oers individual height adjustment on each
seat, and custom positioning for each performer.
Seat
1
Height adjustment knob
2
Corner bracket
3
Bolted leg (4)
4
Washer (4)
5
Locking washer (4)
6
Hex nut (4)
7
Wrench
8
Overview
Instructions
Assembling the PBS-TS
Follow these steps for all four legs:
1. Place the piano bench upside
down on a stable, flat surface.
2. Align and insert the threaded
bolt from the leg with the hole
in the corner bracket.
1
3. Fit the washer onto the bolt,
followed by the locking washer.
4. Screw the hex nut onto
the threaded bolt, and
use the wrench to tighten
until secure.
2
After all of the legs are attached,
stand the bench upright, and place
it on a flat surface.
Adjusting the height
To adjust the height of the
PBS-TS, turn the seat’s height
adjustment knob located on the
corresponding side of the bench.
3
Warning: Keep your fingers
clear when lowering the seat.
1
2
3
4
3
2
1
6
7
8
5
• Please read and follow these instructions, and keep this
manual in a safe place.
• Make sure this product is intact and that there are no
missing parts.
• Make sure all parts are secure before use.
• All images are for illustrative purposes only.
• To avoid damage to this product, be careful not to
overtighten or improperly thread any of the threaded fittings.
• Do not exceed the maximum load capacity.
