Side 1/2
EQ570 Audio Equalizer
Connection guide
SPECIFICATIONS:
Input Impedance: 47k
Output Impedance: 47 ohms
Frequency Response: 5Hz to 154kHz
Adjustment: +/-12dB for 60Hz and 7500Hz
+/-6dB for 400Hz and 2000Hz
THD: .003% @ 1KHz
S/N Ratio: >100 dB unweighted
PWR: 15 VDC
Size: 5.5"w x 3.5"d x 1.25"h
Weight: .8 lbs
Indicator: 1 Power LED
Bellari
Salt Lake City, UT
3/19
What's in the box?
1 - EQ570 proudly made in USA
1 - 15V power supply PN PS27s
1 - This owners manual
1 - Love for audio, Decades of experience building and designing
0 - Eorts to change the minds of audiophiles

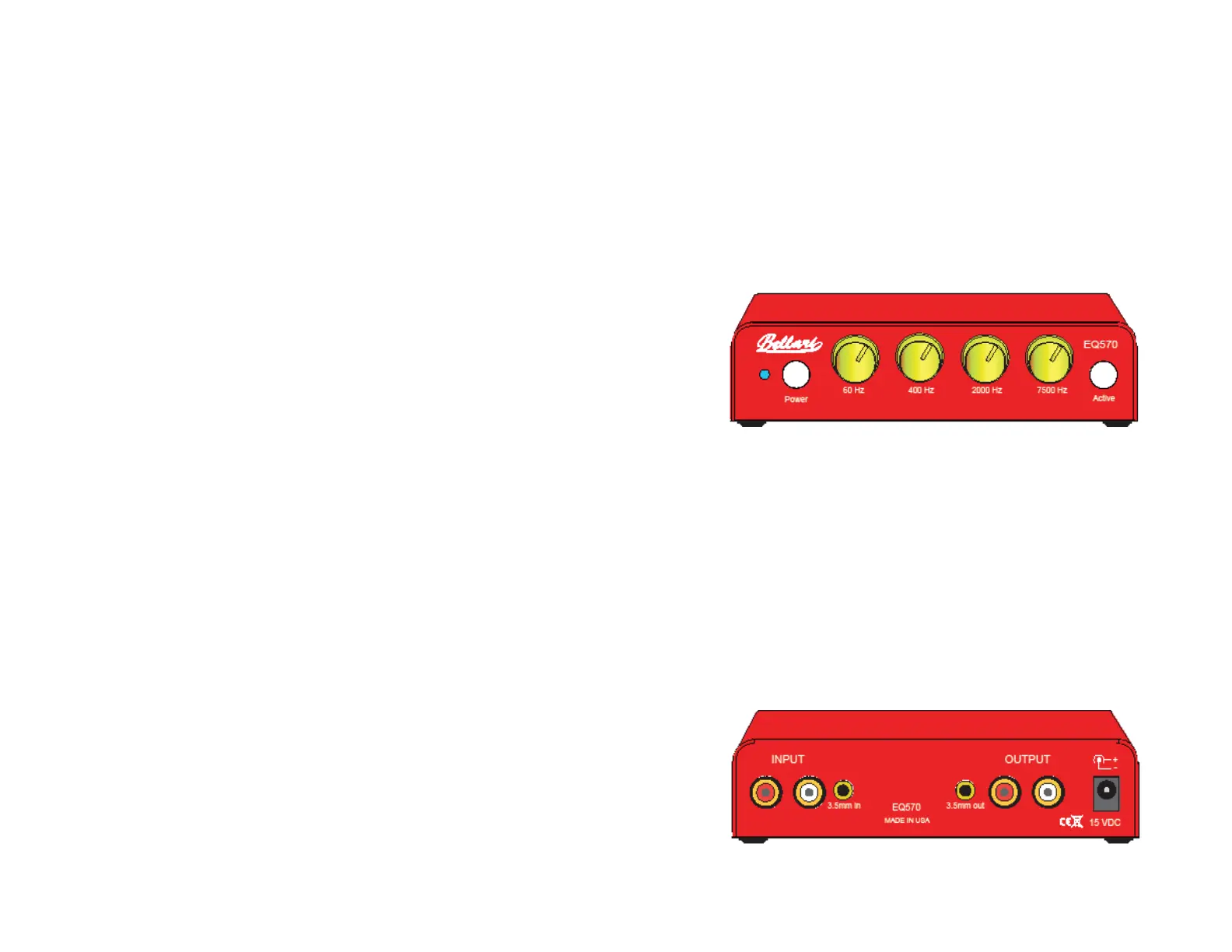

REAR PANEL
RCA OUTPUT: For connection to your preamplier, amplier or other device.
RCA INPUT: Source input (preamp, phone, tablet, DAC, Phono Pre or other
player).
3.5MM IN and OUT: Same functions as the RCA's just with Stereo 3.5 MM (1/8")
jacks.
15 VDC: For connection to the included power supply.
FRONT PANEL
FREQUENCY CONTROLS: Adjusts the level of signal at the labeled frequency.
At the half way position the signal is at unity gain meaning that the signal is not
cut or boosted, it is at at the half way position.
ACTIVE: When in - the EQ is active. When out - the original unaltered signal is
sent out. It is a true bypass direct out design.
POWER: Main power switch for the unit. (with the "active switch out" the EQ570
will pass the original unaltered signal without any power required).
INTRODUCTION
The EQ570, whether you are using it as a phono, DAC or CD equalizer. At every
design stage we focused on one thing, sound quality.
OPERATION - CONNECTION
The EQ570 can be used in many places for audio improvement.
-Simply plug your source (phone, tablet, DAC, CD player or other player) into the
EQ570 then out of the EQ570 to your preamplier or headphone amplier.
-It can ll the role of a turntable only EQ for your system. From your phono pre/
stage to the EQ570 then out to your preamp. You must use a phono pre/stage
with the EQ570 for your turntable.
-It also can act as a whole system EQ by plugging the output of your preamp into
the EQ570 then out to your amplier.
Where to set the frequency controls? The simple answer is where ever you feel
your system sounds best. For any part of your music selection that is to low or
too strong adjust the control for that area and enjoy.
Thank you for purchasing the Bellari EQ570. We spent a considerable
amount of time designing and developing the EQ570. We hope you enjoy
using the EQ570, and that it makes listening to your music collection
rewarding. We sincerely appreciate the opportunity to build a product
for you and participate in your love of quality music and sound. We love
what we do and we’re happy to help. All Bellari products are hand built in
Salt Lake City, Utah by people who care about high quality music.
