Side 1/3

HDMI 2.0 ACTIVE

OPTICAL CABLE,

4K60, 4:4:4, 18 G

24/7 TECHNICAL SUPPORT AT 877.877.2269 OR VISIT BLACKBOX.COM

DATA SHEET

SOURCE

1.877.877.2269

BLACKBOX.COM

INTRODUCTION

Black Box HDMI Active Optical Cables awlessly transmit

uncompressed, full Ultra HD 4K60 (4:4:4) video signals

hundreds of meters. This all-in-one cable design is plug-and-

play, and eliminates the need for a modular solution including a

transmitter, receiver, copper cabling, power and all

of the potential points of failure that come with it. Simply

connect the cable between your source and display like

a standard copper cable and leave it to awlessly transmit your

audio/video signal without worry of signal loss or degradation.

The cable is unidirectional: the source side connector connects

to the source, and the display side connects to the display.

Built-in technology inside the connectors actively converts the

electrical HDMI signal into an optical signal for transmission,

and then back to electrical for display. They also use a hybrid

design that includes both copper and ber, in which the ber

technology allows for signicantly increased bandwidth that

supports transmission of full Ultra HD video resolutions at

distances that the copper alternatives just can’t come close to.

It also provides higher immunity to EMI/RFI interference and

electromagnetic noise. And the inclusion of copper wiring in

the design allows for power to go over the cable, meaning no

external power is required. This design also makes for a much

thinner and more exible cable with a tighter bend radius,

making it easy to pull through tight spaces and more freely

navigate around corners and bends, not to mention much lighter

than its all-copper counterparts.

Black Box Active Optical Cables are the perfect A/V distribution

solution for control rooms, digital signage, healthcare,

conference rooms, mass transit and any other application

where uncompromised, Ultra High Denition video is required

at extended distances.

FEATURES

§§ EXTEND FULL 4096 X 2160 (4K) @ 60 HZ 4:4:4 VIDEO SIGNALS

UP TO 100 M

§§ DATA TRANSFER RATES UP 18 GBPS

§§ HIGH DYNAMIC RANGE (HDR) VIDEO FOR EXPANSIVE CONTRAST

RATIO AND COLOR ACCURACY

§§ SUPPORTS DELIVERY OF DUAL VIDEO STREAMS TO A DISPLAY

(IF SUPPORTED BY DISPLAY)

§§ 21:9 CINEMA ASPECT RATIO

§§ SUPPORTS BT.2020 COLORIMETRY

§§ COMPLIANT WITH CATEGORY 2 (600 MHZ CLOCK FREQUENCY)

SPECIFICATIONS

§§ PCM 8-CHANNEL, DTS-HD MASTER, AND DOLBY DIGITAL TRUE HD

SURROUND SOUND AUDIO

§§ UP TO 32 AUDIO CHANNELS WITH 1536 KHZ SAMPLING RATE

§§ SUPPORTS DELIVERY OF MULTI-STREAM AUDIO TO UP TO 4 USERS

§§ COMPATIBLE WITH AUDIO RETURN CHANNEL (ARC)

§§ SUPPORT EDID/CEC/DDC

§§ COMPLIANT WITH ALL HDMI 2.0 AND HDCP 2.2 SPECIFICATIONS

§§ GOLD-PLATED CONNECTORS ENSURE OPTIMAL PERFORMANCE

§§ PLUG AND PLAY, NO SOFTWARE TO BE INSTALLED. THE SOURCE

SIDE CONNECTOR CONNECTS TO THE SOURCE, AND THE DISPLAY

SIDE CONNECTOR CONNECTS TO THE DISPLAY

§§ HYBRID CONSTRUCTION UTILIZES BOTH COPPER AND FIBER.

NO EXTERNAL POWER IS REQUIRED.

§§ ULTRA-THIN, FLEXIBLE CABLING MAKES IT EASY TO PULL THROUGH

TIGHT SPACES AND NAVIGATE CORNERS AND BENDS WITH LOW

RISK OF SIGNAL LOSS

§§ FIBER TECHNOLOGY GREATLY REDUCES EMI/RFI EMISSIONS

§§ TRIPLE-SHIELDING FURTHER PROTECTS AGAINST INTERFERENCE

TO ENSURE OPTIMAL SIGNAL QUALITY

§§ FEATURES ZINC ALLOY HDMI CONNECTORS FOR ENHANCED

DURABILITY

HDMI 2.0 ACTIVE OPTICAL CABLE, 4K60, 4:4:4, 18 GBPS DATA SHEET

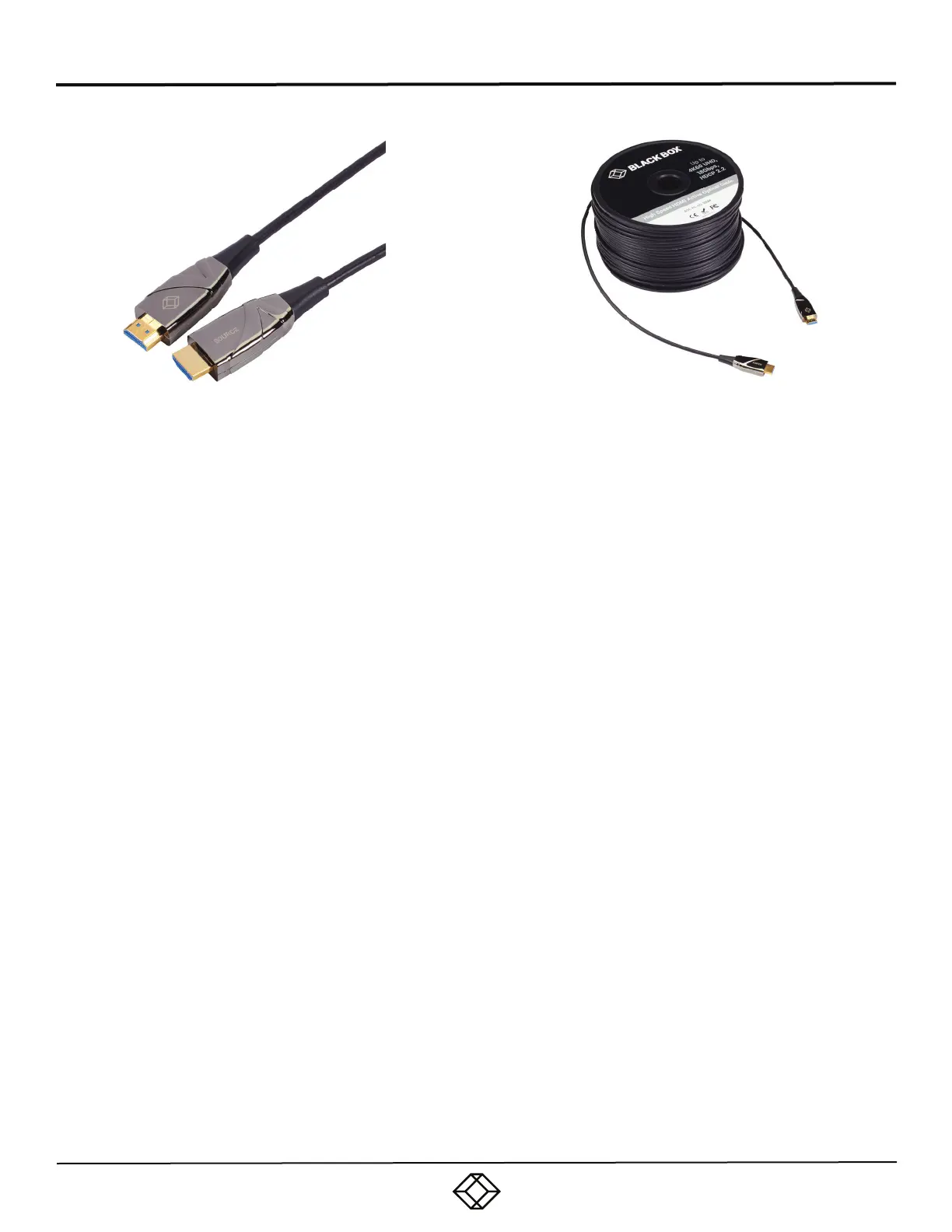

OVERVIEW

Produkspesifikasjoner

Merke:	Black Box
Kategori:	kabler for datamaskiner og annet
Modell:	AOC-HL-H2-50M
Sertifisering:	CE, FCC
HDCP:	Ja
Maksimal oppdateringshastighet:	6000 Hz
HDMI-versjon:	2.0
Antall per pakke:	1 stykker
Fargedybde:	48 bit
Tilkobling 1:	HDMI Type A (Standard)
Tilkobling 2:	HDMI Type A (Standard)
Kabelhylsemateriale:	Low smoke zero halogen (LSZH)
Kabelmateriale:	Fiber optic/Copper
Dolby-teknologier:	DTS-HD, Dolby TrueHD
Kabellengde:	50 m
Produktfarge:	Sort
Støttede grafikkoppløsninger:	3840 x 2160,4096 x 2160
Driftstemperatur (T-T):	0 - 70 °C
Oppbevaringstemperaturomåde (Celsius):	-10 - 70 °C
Lagringsrelativ fuktighet:	5 - 89
Bærekraftsertifikater:	RoHS
Harmonisert system (HS)-kode:	84733080
Kabeldiameter:	4.8 mm
Relativ luftfuktighet under drift (H-H):	10 - 85
Plugg inn og spill:	Ja
Kontaktplettering:	Gull
Magnetisk beskyttet:	Ja
Connector 1 kjønn:	Hankjønn
Connector 2 kjønn:	Hankjønn
Tilkobling 1 formfaktor:	Rett
Tilkobling 2 formfaktor:	Rett
