I AM CONNECTING TO

MY SOURCE

DISPLAY PORT

HDMI DVI VGA

DISPLAY PORT

VCB-DP-xxxx-MM (CBL)

AOC-HL-DP4-XXXM (AOC)

VA-DP-CPL (CPL)

VA-DP12-HDMI4K-A (ACT)

EVNDPHDMI-MF-R3 (PAS)

EVNDPDVI-XXX-MM (CBL)

EVNDPDVI-MF-R3 (PAS)

VA-DP-DVID-A (ACT)

EVNDPVGA-MF-R3 (DNG)

MINI DISPLAY PORT

ENVMDPDP-XXX-MM (CBL)

VA-MDP12-DP12 (DNG)

ENVMDP-HDMI (PAS)

VA-MDP12-HDMI4K-A (ACT)

ENVMDP-DVI (PAS) EVNMDP-VGA (ACT)

HDMI

VA-HDMI-DP (DNG)

VCB-HD2L-XXX (CBL 2.0)

AOC-HL-H2-XXM (AOC)

EVHDMI01T-XXXM (CBL 1.3)

VCB-HDMI-XXXM (CBL 1.4)

VCL-HDMIL-XXXM (DLCBL 1.4)

VCS-HDMI-XXXM (SLMCBL 1.4)

VA-HDMI-CPL (CPL)

EVHDMI02T-XXXM (CBL)

FA790 (ADP)

VA-HDMI-VGA (DNG)

DVI

N/A

EVHDMI02T-XXXM (CBL)

VCL-HDMIDVI-XXXM (SLCBL 1.4)

VA-DVID-HDMI (DNG)

FA795-R2 (ADP)

DVI-I-DL-XXXM (DVII CBL)

EVNDVI02-XXXX (DVID CBL)

VA-DVI-CPL (CPL)

EVNDVI01-XXXX (CBL)

VA-VGA-DVII (DNG)

FA461 (ADP)

VGA

N/A N/A

EVNDVI01-XXXX (CBL)

VA-VGA-DVII (DNG)

KVGA-DVID

EVNPS06B-XXXX-MM (CBL)

EVNPS06-XXXX-MM (CBL)

FA452-R2 (CPL)

FA454-R2 (CPL)

USB-C

VA-USBC31-DP12 (DNG)

VA-USBC31-DP4KC (DNG)

VA-USBC31-DP12M-010 (CBL)

VA-USBC31-DP12-XXX(CBL)

VA-USBC31-HDMI4K (DNG)

VA-USBC31-HD4KC (DNG)

VA-USBC31-HDR4K-XXX (CBL)

VA-USBC31-HDMI4K-016 (CBL)

VA-USBC31-DVID(DNG)

VA-USBC31-DVIC (DNG)

VA-USBC31-DVID-XXX (CBL)

VA-USBC31-VGA (DNG)

VA-USBC31-VGAC (DNG)

VA-USBC31-VGA-XXX (CBL)

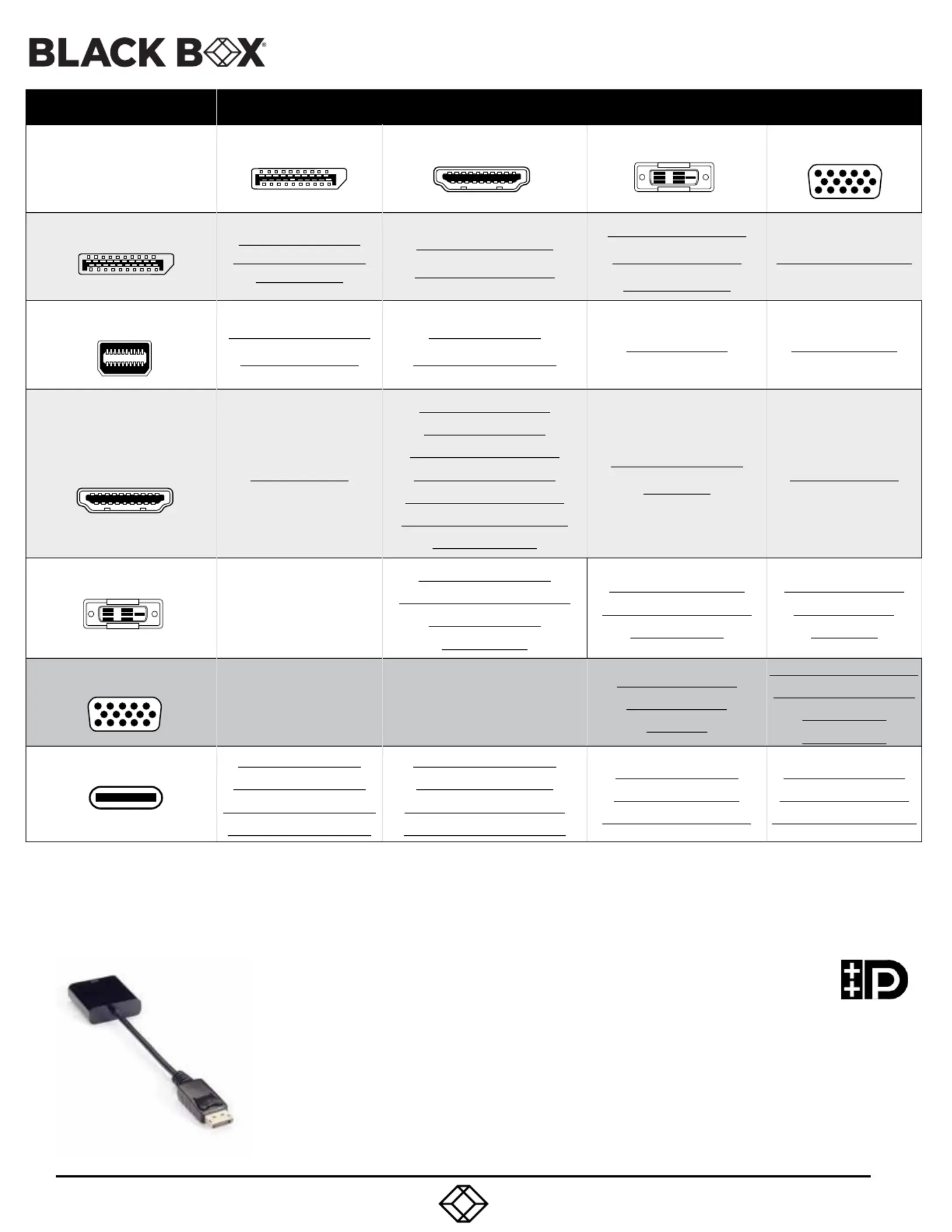

VIDEO ADAPTER SELECTOR GUIDE

WHEN TO CHOOSE AN ACTIVE DISPLAYPORT ADAPTER

When you connect a source with a (mini)DisplayPort interface to one or more DVI or

HDMI display(s), you need to know the difference between active and passive video

adapters.

PCs and other video sources with dual-mode DisplayPort (also known as DP++) interface support the

conversion between DisplayPort and HDMI or DVI. You can use a . Watch out for passive video adapter

the DP++ symbol at your

source port.

Use always an , if your video source has a single-mode DisplayPort interface or active video adapter

needs to support multiple video outputs. Active adapters are equipped with an internal chip that per-

forms the conversion between single-mode or dual-mode DisplayPort and HDMI or DVI.

Key: CBL = Cable; CBL 1.3 = Cable, HDMI v1.3 (1080p); CBL 1.4 = Cable, HDMI v1.4 (4K); SLCBL 1.4 = Single Locking HDMI v1.4 Cable; DLCBL 1.4 = Dual

Locking HDMI v1.4 Cable; DVID CBL = DVI-D Cable; DVII CBL = DVI-I Cable; SLMCBL 1.4 = Slim HDMI v1.4 Cable; DNG = Dongle; LDNG = Dongle w/locking

HDMI; CPL = Coupler; ADP = Adapter; ACT = Active; AOC = Active Optical Cable; CBL 2.0 = Cable HDMI 2.0 with Ethernet; PAS = Passive

1.877.877.2269 BLACKBOX.COM/VIDEOADAPTER

Produkspesifikasjoner

Merke:	Black Box
Kategori:	kabler for datamaskiner og annet
Modell:	EVHDMI01T-001M
HDMI-versjon:	1.3b
Antall per pakke:	1 stykker
Tilkobling 1:	HDMI Type A (Standard)
Tilkobling 2:	HDMI Type A (Standard)
Kabeltype:	Rund kabel
Kabelhylsemateriale:	Polyvinylklorid (PVC)
Kabelmateriale:	Kopper
Kabellengde:	1 m
Produktfarge:	Sort
Kontaktplettering:	Gull
Magnetisk beskyttet:	Ja
Connector 1 kjønn:	Hankjønn
Connector 2 kjønn:	Hankjønn
Tilkobling 1 formfaktor:	Rett
Tilkobling 2 formfaktor:	Rett
AWG-ledningsstørrelse:	28
Antall beskyttende lag:	2
