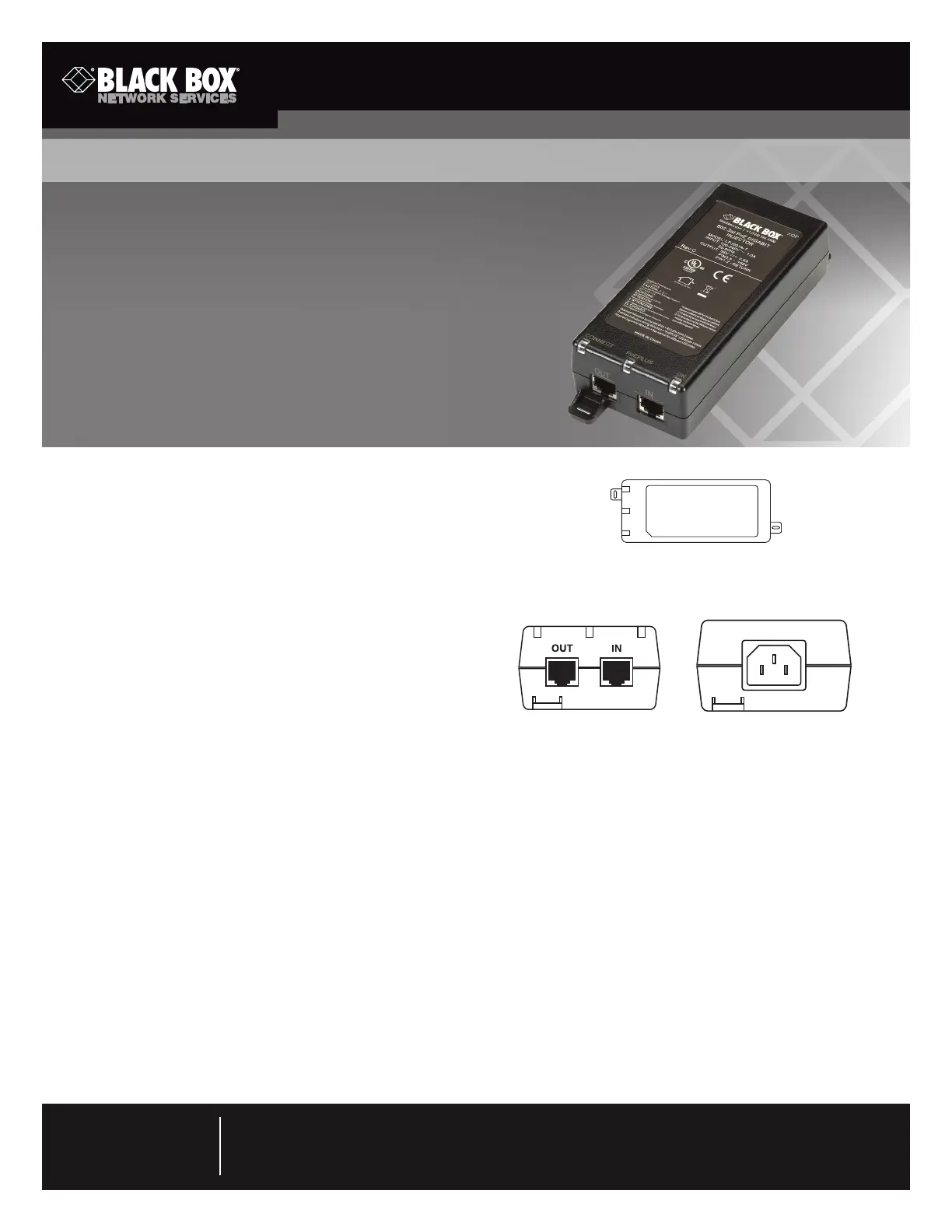

Side 1/2

Exceeds the 802.3at standard.

Use with IP telephones, wireless access

points, IP print servers, IP cameras,

and Bluetooth

access points.

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500) •

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax 724-746-0746 •

Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence, PA 15055-1018 •

Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

BL A C K B O X

LPJ001A-T

802.3at PoE Gigabit Injector, 1-Port

1. Specifications

Compliance: cUL/UL

; RoHS

Load (Maximum): 0.60 A

Regulation: Line and load: 54–57 VDC under all

conditions

Connectors: Data in: (1) RJ-45 (10/100/1000);

Data/PoE out: (1) RJ-45 (10/100/1000);

Power: (1) IEC 320 (3-pin)

Indicators: (3) LEDs: (1) ON, (1) PoE PLUS, (1) CONNECT

Power: AC input voltage range: 90–264 VAC;

AC input voltage rating: 100–240 VAC, 47–63 Hz;

Output: 33.6 W at 56 VDC

Size: 1.4"H x 2.6"W x 5.5"D (1 x 6.6 x 14 cm)

Weight: 0.4 lb. (0.2 kg)

2. Overview

The LPJ001A-T is a high-powered Gigabit power injector

that conforms to the IEEE 802.3at power standard.

As defined in 2009, this standard allows for a minimum

of 25 W of power to operate with PoE equipment over

a single Ethernet cable.

Use the LPJ001A-T with IP telephones, wireless access points, IP print

servers, IP cameras, and Bluetooth access points.

3. Setting Up Your Power Injector

NOTE: Use CAT5e or higher Ethernet cables (not included).

1. Using screws, affix the metal feet on the front and/or rear to a

flat surface such as a table or wall. See Figure 1.

NOTE: The power injector should not use the weight

of the Ethernet cables for support.

Figure 1. Location of metal feet on the power injector.

Power and Data in

data out

Front panel.

IEC-320 power connector.

Back panel.

Figure 2. Ports on the power injector.

2. Connect the 3-pin IEC320 AC input connector to a

power source. Power on the injector.

3. Using CAT5e or higher cable, connect the RJ-45 port

on the injector labeled “IN” to your network switch.

See Figures 2 and 3.

4. Connect the RJ-45 port labeled “OUT” on the injector over

Ethernet cable to the powered device. See Figures 2 and 3.

5. The LEDs will light to diagnose the connection. See Tables 1

and 2.

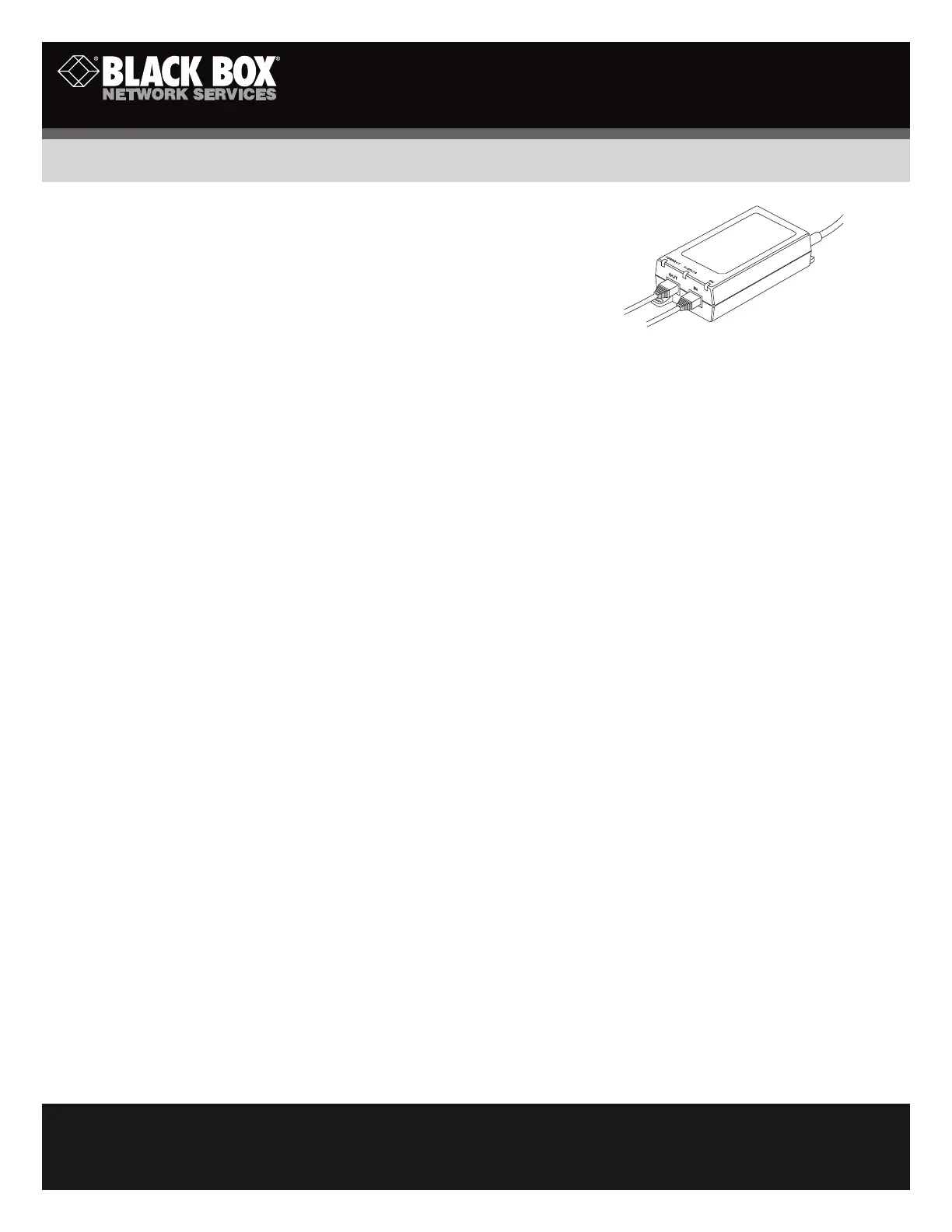

Figure 3. Cable connections to the power injector.

Insert a screw to

secure the unit

to a surface

Insert a screw

to secure the unit

to a surface

Produkspesifikasjoner

Merke:	Black Box
Kategori:	netverkskort/adapter
Modell:	LPJ001A-T
Vekt:	200 g
LED-indikatorer:	Ja
AC-adapter inngangsspenning:	90 - 264 V
Dimensjoner (B x D x H):	66 x 140 x 10 mm
Driftstemperatur (T-T):	-4 - 122 °F
Oppbevaringstemperaturomåde (Celsius):	-20 - 65 °C
Samsvar med industristandarder:	cUL/UL
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Ethernet-grensesnittype:	Gigabit Ethernet
Strømforsyning via Ethernet/Power over Ethernet (PoE):	57 V
AC-adapter frekvens:	47/63 Hz
