Black Box VSC-VGA-TV Bruksanvisning

Black Box lyd / video konverterer VSC-VGA-TV

Les nedenfor 📖 manual på norsk for Black Box VSC-VGA-TV (28 sider) i kategorien lyd / video konverterer. Denne guiden var nyttig for 2 personer og ble vurdert med 4.7 stjerner i gjennomsnitt av 1.5 brukere

Last ned PDF

Side 1/28

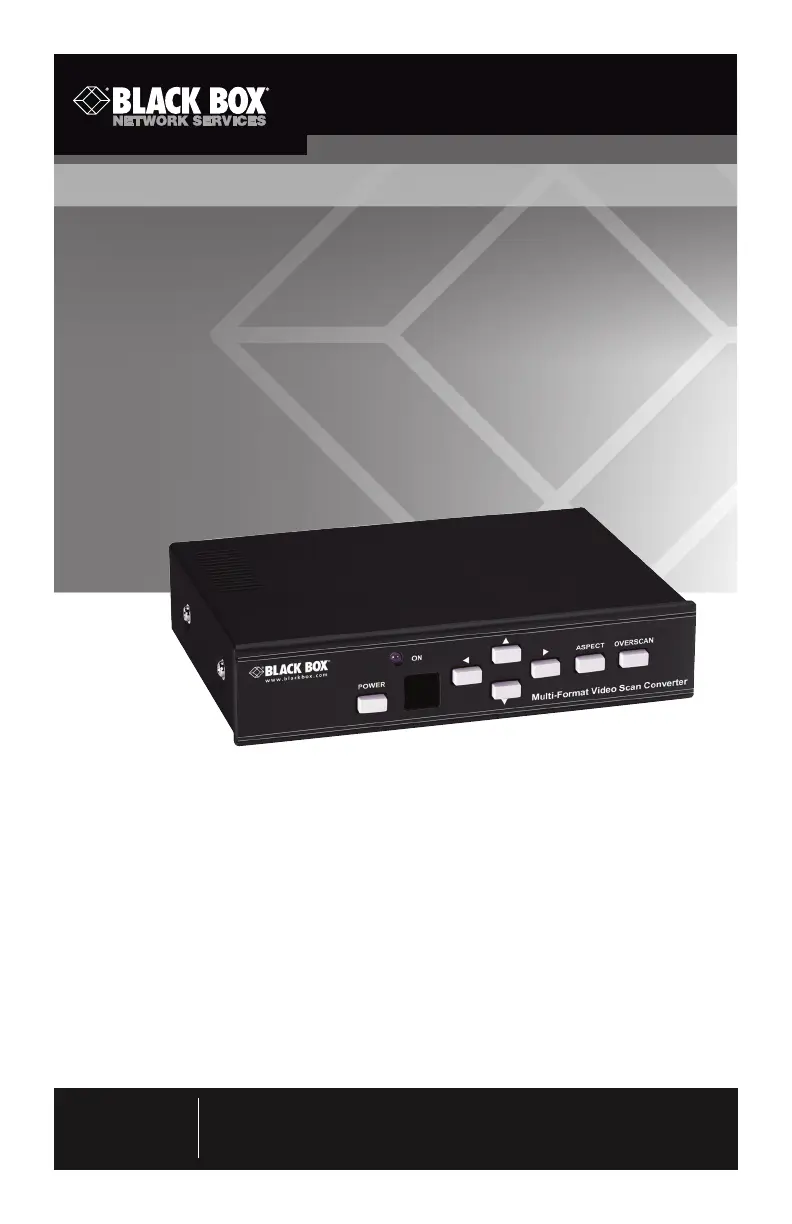

BL A C K B O X

Converts PC and HDTV to interlaced NTSC/PAL

and Component output.

Multi-Format Video Scan Converter

Order toll-free in the U.S.: Call 877-877-BBOX (outside U.S. call 724-746-5500)

FREE technical support 24 hours a day, 7 days a week: Call 724-746-5500 or fax

724-746-0746 • Mailing address: Black Box Corporation, 1000 Park Drive, Lawrence,

PA 15055-1018 • Web site: www.blackbox.com • E-mail: info@blackbox.com

Customer

Support

Information

July 2010

VSC-VGA-TV

Page 2

724-746-5500 | blackbox.com

Multi-Format Video Scan Converter

FEDERAL COMMUNICATIONS COMMISSION AND

INDUSTRY CANADA RADIO FREQUENCY INTERFERENCE STATEMENTS

This equipment generates, uses, and can radiate radio-frequency energy,

and if not installed and used properly, that is, in strict accordance with the

manufacturer’s instructions, may cause inter ference to radio communication.

It has been tested and found to comply with the limits for a Class A computing

device in accordance with the specifications in Subpart J of Part 15 of FCC rules,

which are designed to provide reasonable protection against such interference

when the equipment is operated in a commercial environment. Operation of

this equipment in a residential area is likely to cause interference, in which case

the user at his own expense will be required to take whatever measures may be

necessary to correct the interference.

Changes or modifications not expressly approved by the party responsible

for compliance could void the user’s authority to operate the equipment.

This digital apparatus does not exceed the Class A limits for radio noise

emis sion from digital apparatus set out in the Radio Interference Regulation

of Industry Canada.

Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les

limites applicables aux appareils numériques de la classe A prescrites dans le

Règlement sur le brouillage radioélectrique publié par Industrie Canada.

Produkspesifikasjoner

Merke:	Black Box
Kategori:	lyd / video konverterer
Modell:	VSC-VGA-TV
Vekt:	1800 g
Bredde:	203 mm
Dybde:	152 mm
Høyde:	51 mm
Bruksanvisning:	Ja
Sertifisering:	CE\nRoHS
Maksimal videooppløsning:	1920 x 1080 piksler
Inngangsspenning:	110 - 220 V
Vertsgrensesnitt:	PC (VGA): HD15 F; HDTV/SDTV: (3) RCA F (YPbPr or YCbCr)
Driftsspenning:	5 V
Utgangsgrensesnitt:	(1) RCA F; S-Video: (1) 4-pin mini DIN F; Component video: (3) RCA F (YCbCr); PC (VGA) passthrough: (1) HD15 F; HDTV passthrough: (3) RCA F (YPbPr/YCbCr); Control: (1) DB9 F (RS-232)
Produktfarge:	Sort
Analogt signalformatsystem:	NTSC, PAL
Kabler inkludert:	Component, Composite, RS-232, S-Video, VGA
Støttede videofunksjoner:	1080i, 480i, 480p, 576i, 576p, 720p
Inngangsfrekvens:	50/60 Hz
Ekstern strømadapter:	Ja
Driftsstrøm:	2 A
