Specifications

The above parameters can ba modified without separate notification

Images sensors:

PC1030

MT9V136

PC3030

Power upply:

DC9V - 15V

Lens Angle(Deg.):

170

TV System:

PAL/NTSC

Video Output:

1.0vp-p,75ohm

S/N Ratio:

48dB

IP rating:

IP68

Operating

-30 ~ +70 RH95%MAX.

White Balance: Auto

Minimum illumination:

0.5Lux

AGC:

Auto

Electronic shutter

1/60(NTSC) 1/50(PAL)

Effective pixels:

656*492

Resolution(TV Lines):

420 480

1/10,000second

Temperature(Deg.C):

User Manual

Mini Rear-view

Flush Mount Camera

Model : CAM22

Thank you for choosing Boss Audio.

DO NOT FULLY RELY ON THE REVERSE

CAMERA WHEN BACKING UP, know your

surroundings before backing.

142*100mm

Simple Troubleshooting Guide

Image Blurring

Please check if there is water stain or dust on

the camera.

Image Shaking

Please adjust and fix-up

No Image.

Please check if the power cable is well connected.

Note:

If any of the problems persist after check list had been made, consult your nearest

service dealer. Never attempt to disassemble your unit by yourself.

The following checklist might help to solve the problems which you meet when using

the unit. Please double check and make sure if the connection and the procedure of

the operation is done properly before using the checklist .below

Problem

Cause/Solution

Image Slanting

Please adjust the bracket of camera

Please make sure good connection between the

video in and the monitor.

Please check if reverse gear is in place.

Please make sure correct setup of monitor.

Please make sure cleaness of the camera lens.

Red and black back lights 12V Line

DC 12V

Power / video

Camera

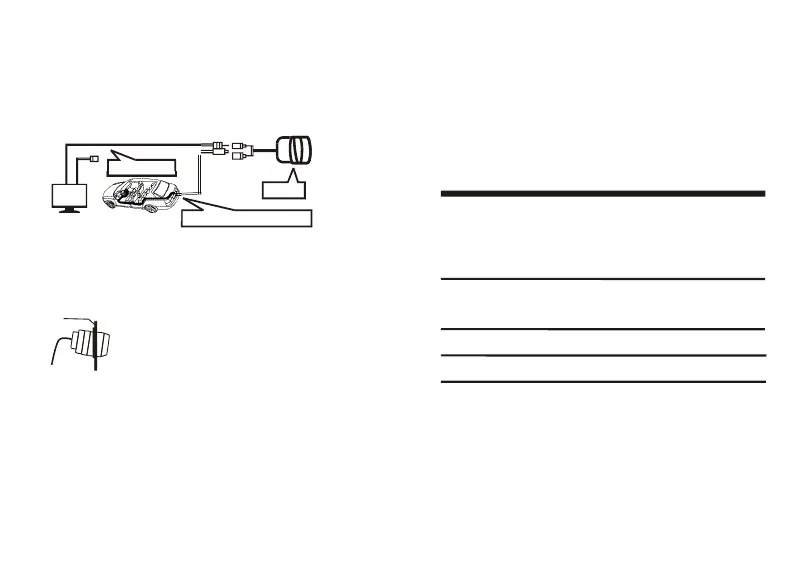

Complete all of the required connections in the way that make all the lines

hided in the car.

Installation

1. Wire connection

2. Installation

The camera can be installed in the following way:

Flush-mount (see diagram 1)

Flush-mount: Install by drilling a hole on the rear bumper.

Attention: The camera switch is controlled by the reverse gear shift.

Car body

(diagram 1)

Produkspesifikasjoner

Merke:	Boss
Kategori:	Sikkerhetskamera
Modell:	Mini Rearview CAM22
Wi-Fi:	Nei
USB-port:	Nei
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	656 x 492 piksler
Optisk zoom:	0 x
Innebygd mikrofon:	Nei
PTZ-kontroll:	Nei
Antall TV-linjer:	420
Dag/natt-modus:	Nei
Automatisk sporing:	Nei
NTSC-oppløsninger:	420 piksler
PAL-oppløsninger:	480 piksler
Synsfelt:	170 °
Produktfarge:	Sort
Mikrofon, linje-inn-støpsel:	Nei
Driftstemperatur (T-T):	-30 - 70 °C
Innebygd kortleser:	Nei
Fjernkontroll medfølger:	Nei
nattsyn:	Nei
Beskyttelsesfunksjoner:	Vannbestandig
Signal-til-støy-forhold (SNR):	48 dB
Kroppsmateriale:	Plast
Innebygd harddisk:	Nei
DC-inngangskontakt:	Ja
Minimumsbelysning:	0.5 lx
Ethernet/bredbåndsforbindelse:	Nei
Relativ luftfuktighet under drift (H-H):	0 - 95
Støttede plasseringer/plasseringer som kan benyttes:	Utendørs
Totale megapiksler:	0.3 MP
Strøm over Ethernet (PoE):	Nei
Strøm-LED:	Nei
DC-ut, volt:	+12V
Komposittvideo ut:	1
Veske:	Nei
