Side 1/36

1-800-265-2150 EN

info@omcbbq.com

40094-E50 REV M 12/20

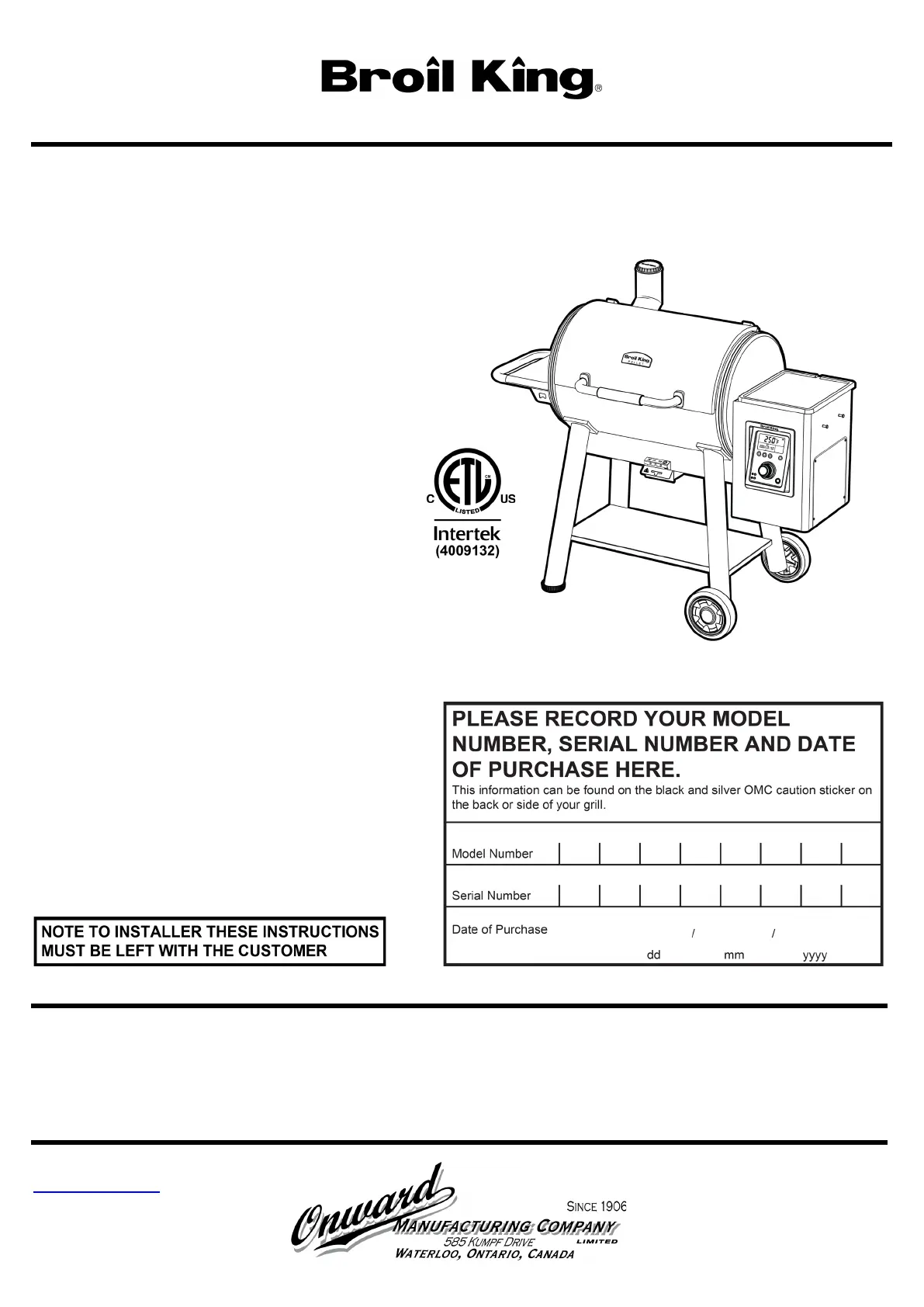

OWNER'S MANUAL

FOR USE WITH

Broil King

Regal Pellet 500 / 400

For Model(s) 496051, 495051

CERTIFIED TO UL SUBJECT 2728

CERTIFIED TO ULC/ORD C2728

CONTENTS

INTRODUCTION .............................................. 2

SAFETY ............................................................ 2

PELLET GRILL PARTS ................................... 3

DIGITAL CONTROL ......................................... 4

GETTING STARTED ........................................ 5

PELLET GRILL APP ........................................ 6

PELLET FUEL .................................................. 7

COOKING TECHNIQUES ................................ 7

RECIPES ........................................................ 10

MAINTENANCE ............................................. 11

WARRANTY ................................................... 12

GUIDE DE L’UTILISATEUR ........................... 13

MANUAL DEL USUARIO ............................... 25

PLEASE READ THIS ENTIRE MANUAL BEFORE INSTALLATION AND USE OF THIS PELLET-

BURNING APPLIANCE. FAILURE TO FOLLOW THESE INSTRUCTIONS COULD RESULT IN

PROPERTY DAMAGE, BODILY INJURY, OR EVEN DEATH.

CONTACT LOCAL BUILDING OR FIRE OFFICIALS ABOUT RESTRICTIONS AND INSTALLATION

INSPECTION REQUIREMENTS IN YOUR AREA.

SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE.

SAFTEY INSTALLATION

Your new Broil King

Pellet Grill is a safe, convenient appliance

when assembled and used properly. As with all pellet fuel-burning

products, however, certain safeguards must be observed. Failure

to follow these safeguards may result in serious injury or damage.

If you have questions concerning assembly or operation, consult

your dealer, or our direct customer service line at 1-800-265-2150.

/ info@omcbbq.com

• Please read this entire manual before installation and use of

this pellet-burning appliance. Failure to follow these

instructions could result in property damage, bodily injury, or

even death.

• Contact local building or fire officials about restrictions and

installation inspection requirements in your area.

• Save these instructions for future reference.

DANGER

• This grill and its accessible parts become HOT during use.

Take care DO NOT touch HOT surfaces without protective

gloves.

• This grill is designed for OUTDOOR USE ONLY. If used

indoors, toxic fumes will accumulate and cause serious bodily

injury or death. Follow these guidelines to prevent this

colorless, odorless gas from poisoning you, your family, or

others.

• Know the symptoms of carbon monoxide poisoning:

headache, dizziness, weakness, nausea, vomiting,

sleepiness, and confusion. Carbon monoxide reduces the

blood’s ability to carry oxygen. Low blood oxygen levels can

result in loss of consciousness and death.

• See a doctor if you or others develop cold- or flu-like

symptoms while cooking or in the vicinity of this appliance.

Carbon monoxide poisoning, which can easily be mistaken for

a cold or flu, is often detected too late.

• Alcohol consumption and drug use increase the effects of

carbon monoxide poisoning.

• Carbon monoxide is especially toxic to mother and child

during pregnancy, infants, the elderly, smokers, and people

with blood or circulatory system problems, such as anemia or

heart disease.

• Never use gasoline, gasoline-type lantern fuel, kerosene,

charcoal lighter fluid, or flammable liquids with this appliance

to start or maintain a fire.

• Never store any combustible material close or under the

appliance

• Do not leave children or pets unattended near a hot grill.

• Do not attempt to move a hot grill.

• Do not use unless grill is fully assembled and all parts are in

place.

• Do not remove ashes until all pellet fuel is completely burned

out and fully extinguished.

• Do not use grill in high winds.

• If a flare up occurs, do not use water to put out fire. Turn OFF.

Unplug power cord and wait for grill to cool.

ELECTRICAL CAUTION

• This appliance uses an external electrical power source and

must be electrically grounded in accordance with local codes.

In the absence of local codes, the following standards apply:

(U.S.A) ANSI/NFPA No. 70-Latest Edition and (Canada) CSA

C22.1 Canadian Electrical Code.

• Do not operate unit if the plug receptacle is damaged.

• Do not cut or remove the grounding prong from the plug.

• Keep the electrical supply cord away from any heated

surfaces.

PROPOSITION 65 WARNING

Combustion (burning) of this product, produces carbon monoxide

and other substances known by the State of California to cause

cancer and birth defects or other reproductive harm. For more

information go to www.P65warnings.ca.gov/product

A MAJOR CAUSE OF FIRES IS

FAILURE TO MAINTAIN

REQUIRED CLEARANCES (AIR

SPACES) TO COMBUSTIBLE

MATERIALS. IT IS OF UTMOST

IMPORTANCE THAT THIS

PRODUCT BE INSTALLED ONLY

IN ACCORDANCE WITH THESE

INSTRUCTIONS.

• The appliance must be installed away from combustible

surfaces by at least 30inch/76cm from each side, and

30inch/76cm from the rear. There must be 60inch/150cm of

space between the top of the appliance and any overhead

construction.

• Never install the appliance underneath plants, trees or foliage.

• WARNING: Always install the appliance on a non-combustible

surface.

• WARNING: Always install the appliance on a level surface

and keep the appliance level.

• This appliance is for OUTDOOR USE ONLY, do not operate

in garage, shed, balcony or other such enclosed areas.

• DO NOT restrict the flow of air to the appliance.

• Keep the area surrounding the appliance free of combustible

materials,pellets, gasoline, and all flammable liquids and

vapors.

• This appliance is not intended to be installed in, or on,

recreational vehicles and/or boats.

• Do not use or install accessories that change or modify

the pellet hopper, auger, burn pot or exhaust systems.

WARNING

• Preheat grill with lid open for first 10 minutes or until white

smoke turns clear.

• Never touch the pellet tray, ash clean out or cooking grate to

see if they are hot.

• Use barbecue mitts or hot pads to protect hands while

cooking or adjusting top damper.

• Use proper barbecuing tools with long, heat-resistant handles.

• Only use food grade wood pellets. Broil King

Premium

Grilling Pellets are recommended

• Always store wood pellets in a dry location, away from heat-

producing appliances and other fuel containers.

• To extinguish the pellets, turn off the pellet digital control and

close the damper completely. Do not use water.

BROIL KING

PELLET GRILL PARTS

1. Lid

2. Cook Box

3. Chimney

4. Roto-draft™ Exhaust Damper

5. Side Shelf

6. Leg

7. Warming Rack

8. Cooking Grids

9. Lower Shelf

10. Control Panel

11. Ash Tray

12. Grease Tray Aluminum Liner

13. Grease Tray

14. Agitator

15. Burn Pot

16. Auger

17. Grate

18. Auger Fan

19. Auger Motor

20. Hopper Lid

21. Hopper

22. Hopper Cleanout

23. Power Cord

24. Wheel

25. Access Door

26. Heat Reflector Front / Back

27. Grease Management Channel - Side

28. Grease Management Channel - Main

29. Heat Deflector

30. Heat Shield

31. Thermometer Pass Through

32. Rotisserie Motor

33. Rotisserie Rod

34. Broil King

Grid Lifter

35. Temperature Probe
