Side 1/28

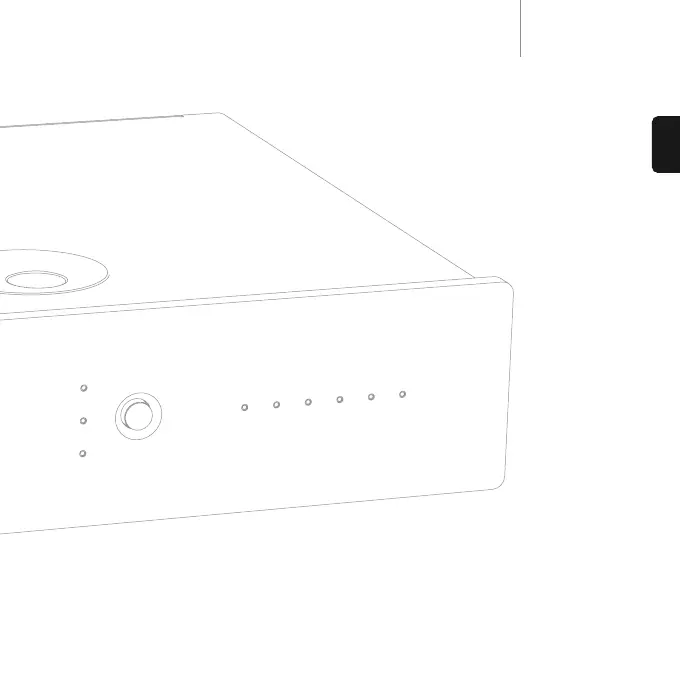

azur DacMagic

Upsampling digital to analog converter

User’s manual

ENGLISH

Introduction............................................................................................................................................ 3

Important safety instructions ............................................................................................................... 4

Rear panel connections ........................................................................................................................ 8

Front panel controls .............................................................................................................................. 10

Audio output connections..................................................................................................................... 12

Digital audio input connections............................................................................................................ 13

PC-USB connections.............................................................................................................................. 14

Digital audio output connections ......................................................................................................... 16

Operating instructions........................................................................................................................... 17

Filters...................................................................................................................................................... 18

Technical specifications........................................................................................................................ 25

Troubleshooting ..................................................................................................................................... 26

Limited warranty.................................................................................................................................... 27

Contents

For further information about Cambridge Audio, our products, news, reviews and support,

please visit www.cambridge-audio.com

This package should contain the following:

1 x Azur DacMagic (assembled), 1 x AC 12V 1.5A power adaptor, 4 x rubber feet, 1 x rubber base, 1 x USB ‘B-A’ type

lead, 1 x user’s manual

Produkspesifikasjoner

Merke:	Cambridge
Kategori:	lyd / video konverterer
Modell:	DacMagic
Vekt:	1200 g
Strømforbruk:	1500 mA
Dimensjoner (B x D x H):	215 x 191 x 52 mm
Driftsspenning:	12 V
Produktfarge:	Sort
Ekstern strømadapter:	Ja
Antall USB 1.1-porter:	1
Av/på-bryter:	Nei
Lydutgang (venstre/høyre):	1
Digital optisk lydinngang:	2
Digital koaksialinngang for lyd:	2
Samplingsfrekvenser:	32kHz, 44.1kHz, 48kHz, 88.2kHz, 96kHz
