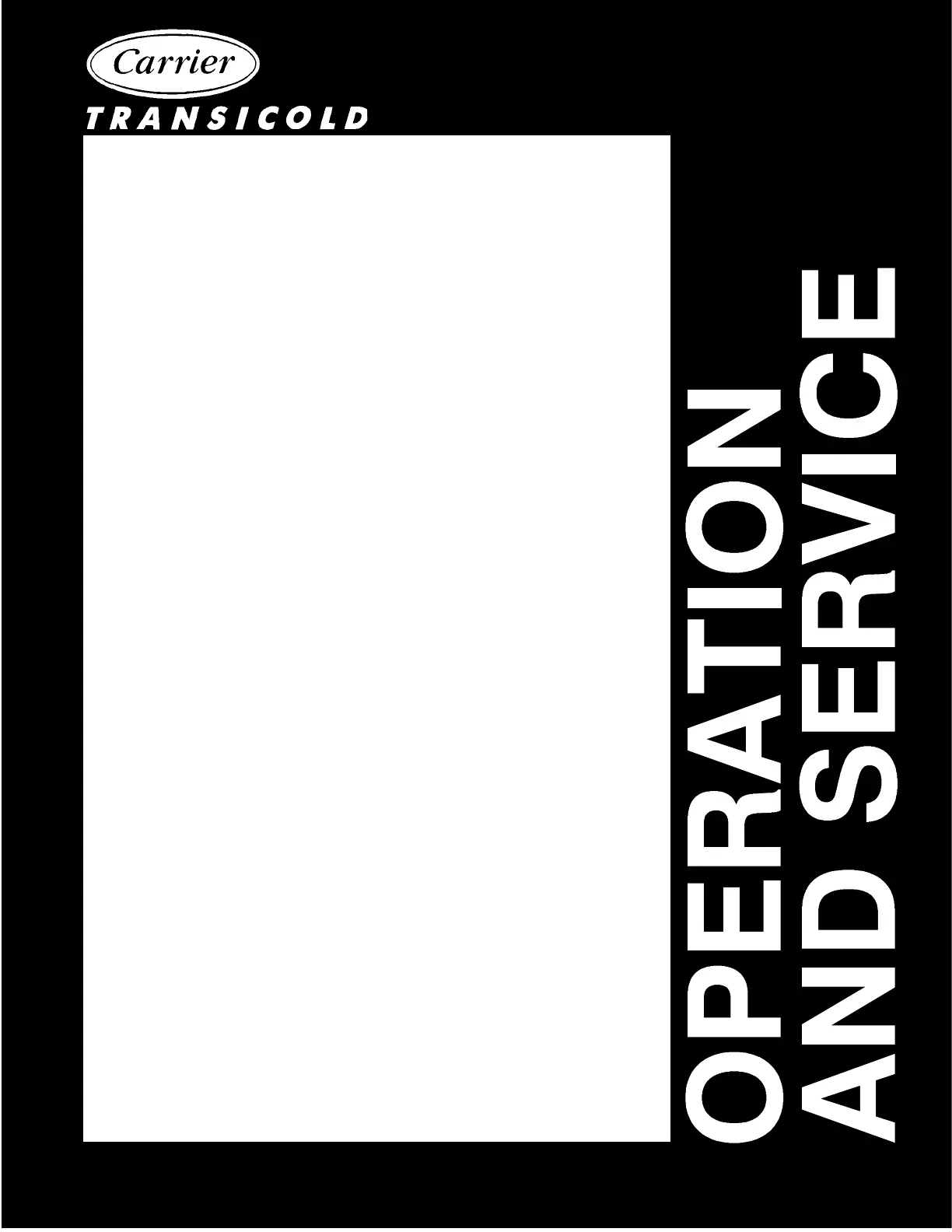

Side 1/22
62-02491-02
MODEL
05K
Compressor
Carrier Transicold E.T.O. Boite Postale Nr. 16 Franqueville --- Saint---Pierre 76520 Boos, FRANCE
Carrier Corporation 1995 D Printed in U. S. A. 0795
MODEL 05K
COMPRESSOR
SERVICE MANUAL
OPERATION A ND
Carrier Transicold Division, Carrier Corporation, P.O. Box 4805, Syracuse, N.Y. 13221 U. S. A.
i
TABLE OF CONTENTS
Section Page
1DESCRIPTION 1-1.........................................................
1.1 Introduction 1-1............................................................
1.2 General Description 1-1......................................................
1.3 Compressor Reference Data 1-1...............................................
1.4 Detailed Description 1-3.....................................................
1.4.1 Suction and Discharge Valves 1-3.......................................
1.4.2 Suction & Discharge Service Valves 1-3..................................
1.4.3 Lubrication System 1-3................................................
1.5 Compressor Unloader 1-3....................................................
1.5.1 Hot Gas By pass Unloader 1-4.........................................
1.5.2 Suction Cutoff Unloader 1-5...........................................
1.5.3 Pressure---Ope rated Unloaders 1-6.....................................
2 COMPRESSOR REPLACEMENT 2-1.........................................
2.1 Compressor Removal 2-1.....................................................
2.2 Compressor Replacement 2-1.................................................
2.2.1 Installing Co mpressor Unloaders 2-1....................................
2.2.2 Installing Co mpressor 2-2.............................................
3 COMPRESSOR MAINTENANCE 3-1..........................................
3.1 Introduction 3-1............................................................
3.2 Inspection and Preparation for Re assembly 3-1..................................
3.3 Cylinder Head and Valve Plate 3-1.............................................
3.4 Oil Pump and Bearing Head 3-2..............................................
3.4.1 Low Profile Gea r Pump 3-2............................................
3.4.2 Gear Pump 3-3......................................................
3.4.3 Vane Pump 3-4......................................................
3.5 Shaft Seal 3-5...............................................................
3.6 Compressor Running Gear Removal 3-6........................................
3.7 Compressor Running Gea r Reassembly 3-7......................................
3.8 Suction Strai ner 3-8.........................................................
3.9 Adding Oi l 3-8..............................................................
3.10 Installing Compressor 3-8....................................................
