Relative Humidity, Duct, Thermistor
Installation and Operation
#NSA-HH/RH2-CP-D-C, NSA-HH/RH3-CP-D-C – 11/14/2019
Specifications subject to change without notice.
Catalog No. 11-808-775-01 Page 1 of 10

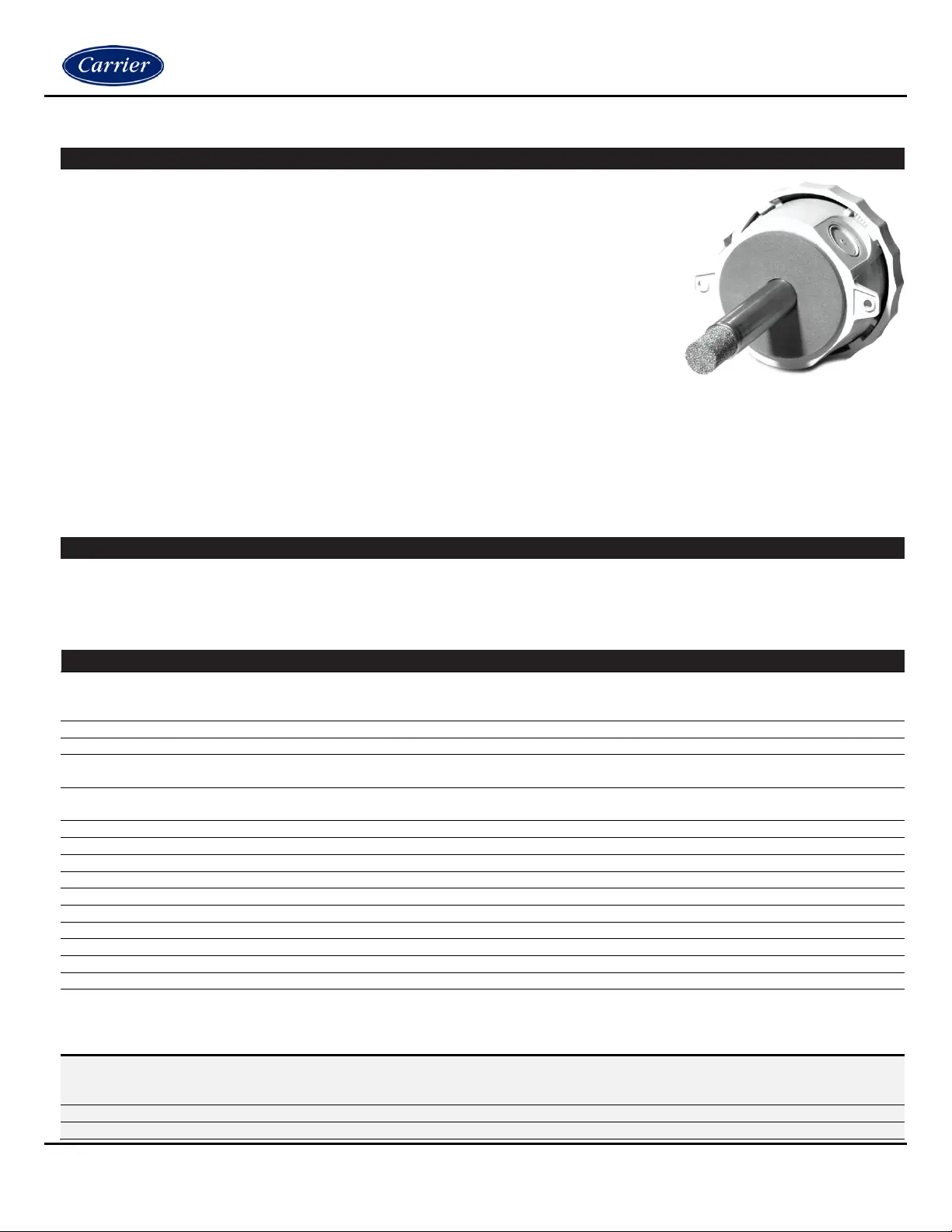

Overview
The Carrier Relative Humidity with Thermistor Duct Series utilizes a thermoset polymer
capacitive sensing element with a factory fitted hydrophobic filter to improve its moisture
resistance. The sensing elements multilayer construction also provides excellent
resistance in applications where dust, dirt, oils and common environmental chemicals
are found. The RH duct sensors include on board DIP switches which allow the user to
select the desired output signal and can be powered by AC or DC power sources. Each
unit also contains 0%, 50%, and 100% test options to verify that the transmitter is both
working and wired properly. Field calibration can be performed by using the increment
and decrement calibration DIP switches without the need to replace the sensing
element. These enhancements provide increased flexibility and outstanding long-term
reliability without the need to replace the sensors in the field. Duct configurations feature
a weatherproof Euro style enclosure with a gasketed cover and conformally coated
circuit boards for increased moisture resistance in high humidity environments. The sensor is protected by a stainless-steel
sintered filter.
Applications: Humidification, Dehumidification, Supply / Discharge / Return Air, Economizers, Clean Rooms, Data
Centers, Process Control, Schools, Hospitals, Office Buildings
Part Numbers
NSA-HH/RH2-CP-D-C NSA-HH/RH3-CP-D-C
Specifications
RH Supply Voltage
(Reverse Polarity Protected):
4-20 mA: 250 Ohm Load: 15 - 40 VDC / 18 - 28 VAC
500 Ohm Load: 18 - 40 VDC / 18 - 28 VAC
0-5 VDC: 12 - 40 VDC / 18 - 28 VAC | 0-10 VDC: 18 - 40 VDC / 18 - 28 VAC
RH Supply Current (VA):
Voltage Output: 8 mA max (0.32 VA) | Current Output: 24 mA max (0.83 VA)
RH Output Load Resistance:
4-20 mA: 700 Ohms max | 0-5 VDC or 0-10 VDC: 4K Ohms min
RH Output Signal:
2-wire: 4 - 20 mA (Factory Default)
3-wire: 0-5 or 0-10 VDC and 4 - 20 mA (Field Selectable)
RH Accuracy @ 77°F (25°C):
+/- 1% over 20% RH Range between 20 to 90%
+/- 2%, 3%, or 5% from 10 to 95%
RH Measurement Range
0-100%
Operating RH Range:
0 to 95% RH, non-condensing (Conformally Coated PCB’s)
Operating Temperature Range:
-40 to 140°F (-40 to 60°C)
Storage Temperature Range:
-40 to 149°F (-40 to 65°C)
RH Stability | Repeatability | Sensitivity:
Less than 2% drift / 5 years | 0.5% RH | 0.1% RH
RH Response Time (T63):
20 Seconds Typical
RH Sensor Type:
Capacitive with Hydrophobic Filter
RH Transmitter Stabilization Time:
30 Minutes (Recommended time before doing accuracy verification)
RH Connections | Wire Size:
Screw Terminal Blocks (Polarity Sensitive) | 16 (1.31 mm²) to 26 AWG (0.129 mm²)
RH Terminal Block Torque Rating:
4.43 to 5.31 lb-in (0.5 to 0.6 Nm)
RH NIST Test Points:
Default Test Points: 3 Points (20%, 50% & 80%) or 5 Points (20%, 35%, 50%,
65% & 80%)
1% NIST Test Points: 5 Points within selected 20% Range (ie. 30%-50% are 30,
35, 40, 45 & 50)
Nominal Thermistor Resistive Output @
77°F (25°C) | (Lead Wire Colors) Non-Linear
NTC (Negative Temperature Coefficient):
10KΩ (White/Green)
Thermistor Accuracy 32-158°F (0-70°C):
+/- 0.36°F (0.2°C)
Thermistor Power Dissipation Constant:
3 mW/°C
Relative Humidity, Duct, Thermistor
Installation and Operation
#NSA-HH/RH2-CP-D-C, NSA-HH/RH3-CP-D-C – 11/14/2019
Specifications subject to change without notice.
Catalog No. 11-808-775-01 Page 2 of 10
Thermistor Sensor Response Time (T63):
10 Seconds nominal
Lead Wire Length | Conductor Size:
14” (35.6 cm) | 22 AWG (0.65 mm)
Insulation | Rating:
Etched Teflon (PTFE) Colored Leads | Mil Spec 16878/4 Type E
Enclosure Specifications (Material,
Flammability,
Temperature, NEMA/IP Rating):
“-EH” Enclosure: ABS Plastic; UL94-V0; -40 to 140°F (-40 to 60°C)
“-4X” Enclosure: Polystyrene Plastic; UL94-V2; -40 to 158°F (-40 to 70°C); NEMA
4X (IP 66)
Sensing Tube Material | Filter Material:
“EH” Enclosure: 304 Series Stainless Steel | 304 Series Stainless Steel
“-4X” Enclosure: Schedule 40 PVC (White) | Slotted PVC without filter
Sensing Tube Dimensions (Length x
Diameter):
“-EH” Models with Sintered Filters: 7.75” (196.85 mm) x 0.75” (19.05 mm)
“-4X” Models: 7.20” (182.88 mm) x 0.84” (21.34 mm)
Product Dimensions (L x W x D):
See Dimensional Drawing below
Product Weight:
1.22 lbs. (0.55 kg)
Agency Approvals:
CE, RoHS2, WEEE

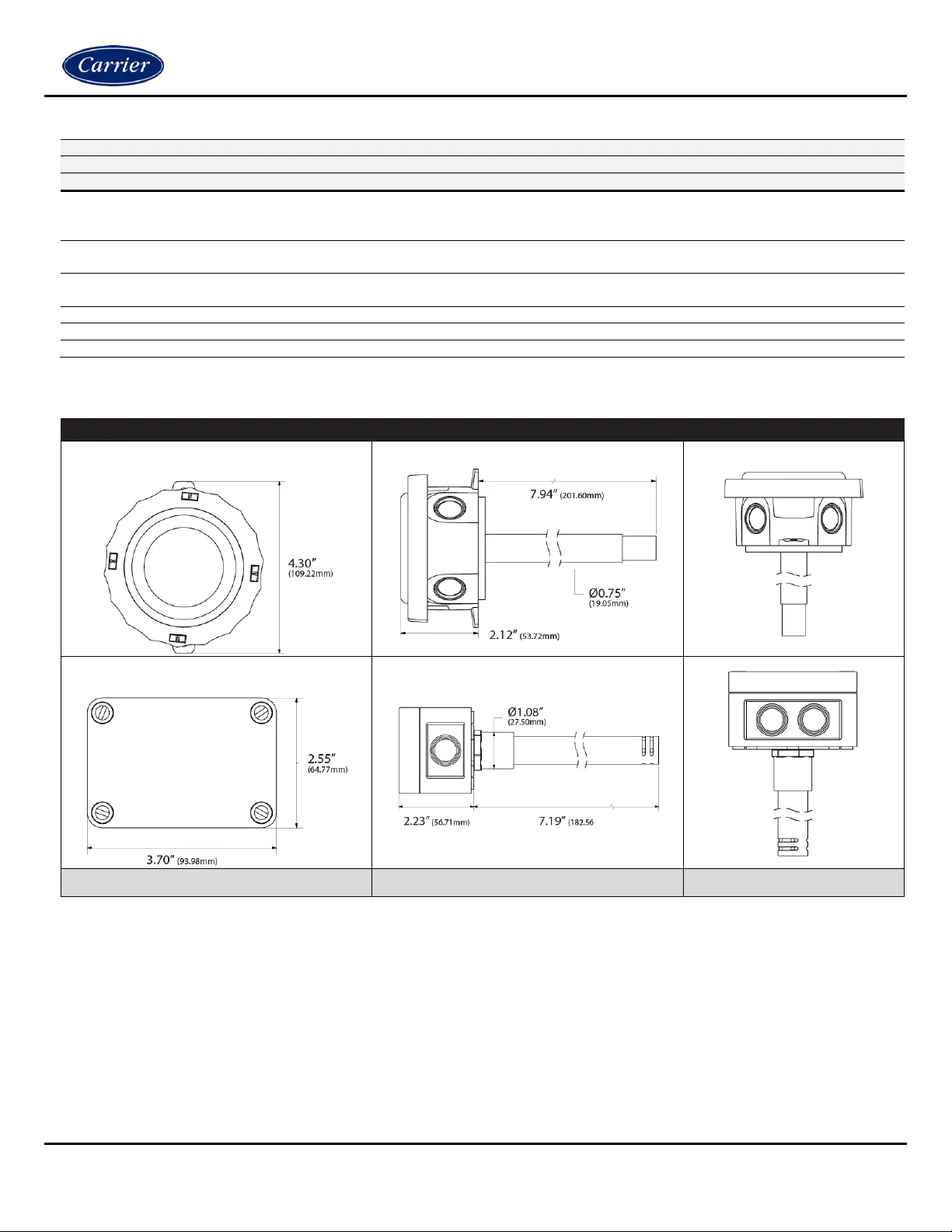

Dimensional Drawing
Euro Enclosure [EH]
NEMA 4X Enclosure [4X]
Front View
Right View
Top View
Figure 1
Relative Humidity, Duct, Thermistor
Installation and Operation
#NSA-HH/RH2-CP-D-C, NSA-HH/RH3-CP-D-C – 11/14/2019
Specifications subject to change without notice.
Catalog No. 11-808-775-01 Page 3 of 10
Installation
For optimal readings, follow these tips:
The sensor should be mounted in the middle of the duct where air circulation is well mixed (no stratification), and not
blocked by obstructions. Stratification and obstructions can cause sensing errors. An example is downstream from a
heating or cooling coil.
Duct probe should be placed (3) to (4) duct segments down from any bend or obstructions and away from 90° bends.
Mount the sensor on the top or sides of duct work; mounting on the bottom risks damage due to moisture.
Mounting Instructions

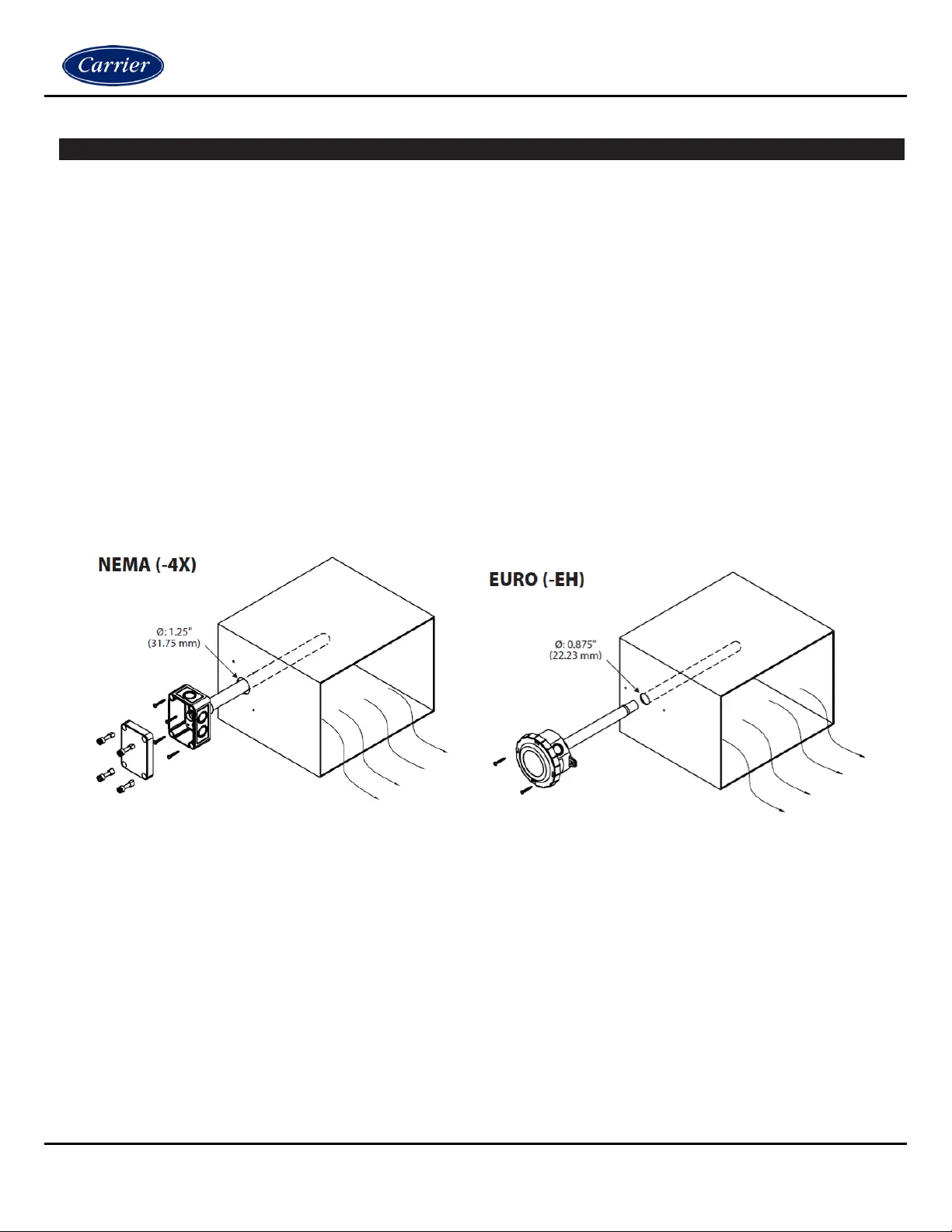

The Euro enclosure (-EH) requires a 0.875” (22.23 mm) hole in the duct, and the Nema 4X enclosure (-4X) requires a
1.25” (31.75 mm) hole - see Figure 1. After drilling, insert the probe through the hole until the foam pad is tight to the duct.
Drill pilot holes for the mounting screws. Use the enclosure as a guide, or use the dimensions listed on the right to
measure out.
Now fasten and insert mounting screws through the mounting holes and tighten until the unit is held firmly to the duct.
Refer to Wiring Instructions to make necessary connections.
Mounting Dimensions
Figure 2
