Side 1/3

CARSON

HELPINGHANDS

2x LED LIGHTED SOLDERING AND CRAFT MAGNIFIER

GN-88

Instructions for use:

Installing Batteries

Pull open battery door (Fig. 1). Insert 2 AA batteries as shown in Fig. 2. Make sure to follow polarity indicators

marked inside battery compartment. Replace battery door (Fig. 3).

Fig. 1

Fig. 2 Fig. 3

Warning: Use only alkaline batteries. Mixing old and new, different brands or types within brands may cause

batteries to leak, overheat or explode. Keep away from fire or excessive heat. Inspect batteries for corrosion or

leakage. Insert in direction indicated. Rechargeable batteries not recommended.

Attaching Flexible Arms

Locate flexible metal arms and remove nuts from ends (Fig. 4). Insert ends of metal arms into holes in U shaped

base (Fig. 5-6). Reattach nuts to secure arms to base (Fig. 7).

Fig. 4

Fig. 5 Fig. 6 Fig. 7

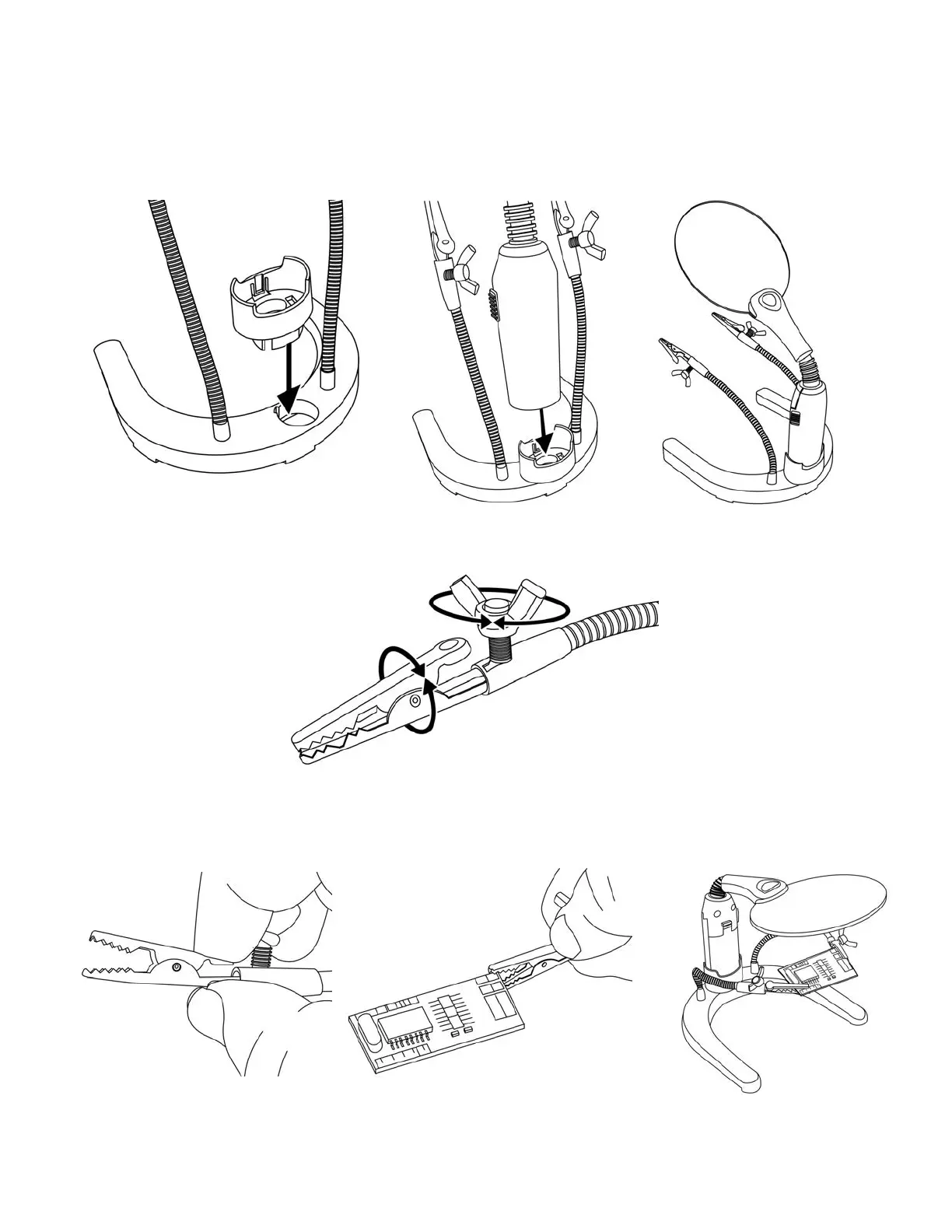

To Use Hands-Free

Snap adapter into base. Please note that adapter is "keyed" to fit only one way (Fig. 8). Place magnifier

handle into adapter (Fig. 9). It is also keyed and will easily "click-lock" into base when correctly inserted.

Adjust flexible arms and position lens as needed (Fig. 10).

Fig. 8

Fig. 9 Fig. 10

To Adjust Alligator Clips

Fig. 11

Loosen wing nuts to adjust position of alligator clips as desired (Fig. 11). Tighten wing nuts to lock into

place.

Using Alligator Clips

Pinch to open each alligator clip (Fig. 12) and clamp onto viewing subject (Fig. 13). Position arms as needed

to view subject under the lens (Fig. 14).

Fig. 12

Fig. 13 Fig. 14

Produkspesifikasjoner

Merke:	Carson
Kategori:	lys
Modell:	MagniLamp GN-55
Vekt:	187 g
Diameter:	110 mm
Batteritype:	AA
Produktfarge:	Grey, Transparent
Antall støttede batterier:	2
Batterier medfølger:	Nei
Lyspæretype:	LED
Forstørring:	3.5 x
