The Rock Tripod

with 3-Way Fluid Panhead

Congratulations on selecting your new Tripod! In order to achieve optimum

performance, please follow instructions for proper use and care.

PRODUCT SPECIFICATION:

Head Type:

3-Way Fluid Panhead

Leg Sections:

Maximum Height:

20.8”

Maximum Tube Diameter:

20.5mm

Maximum Load:

5.5 lbs.

Features:

Bubble Level, Quick Release Plate, Non-Slip Rubber Feet,

and Carrying Case

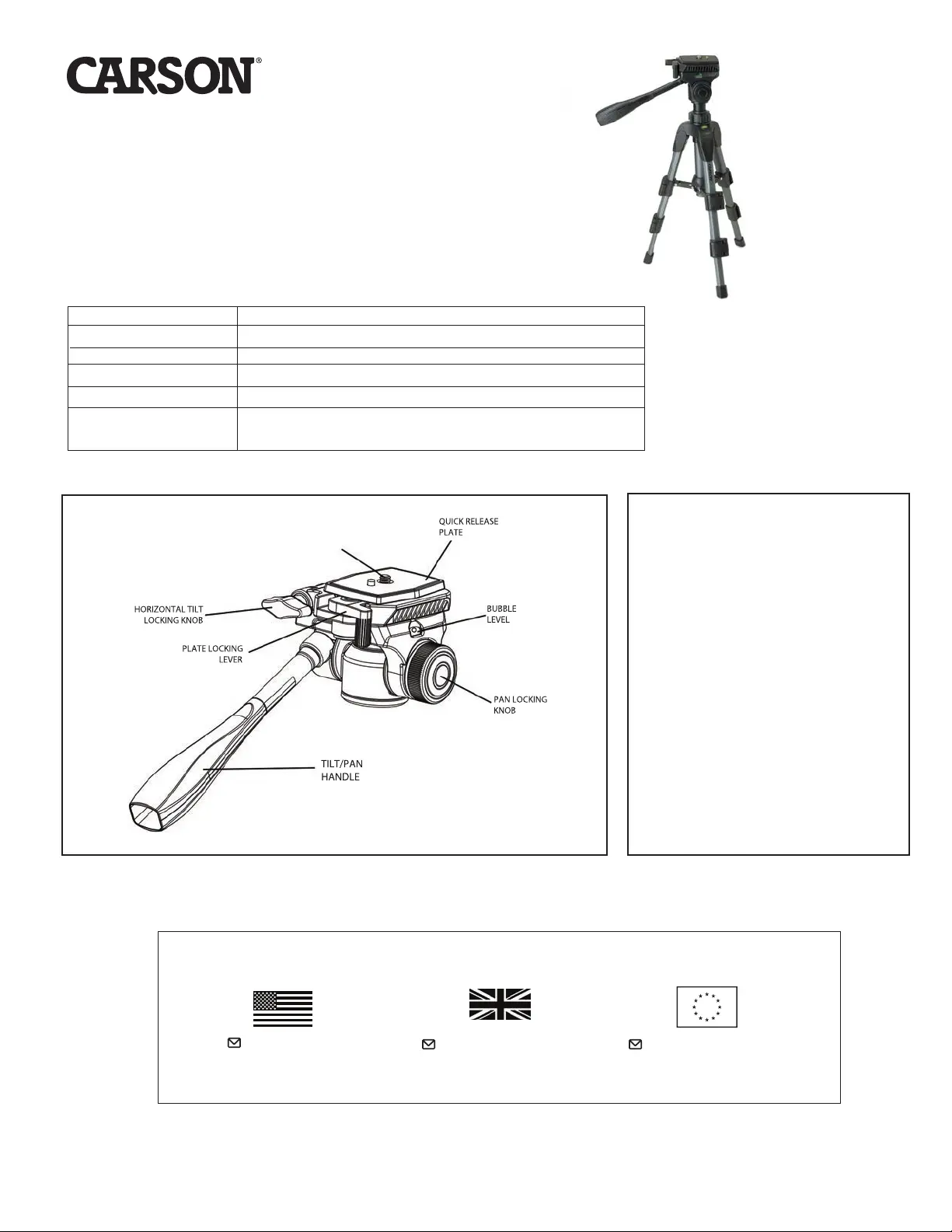

TR-100 PANHEAD DIAGRAM:

MOUNTING SCREW

IMPORTANT:

• Do not exceed maximum load capacity

of the tripod.

• Do not mount optic to tripod until all

legs are securely locked, level and

stabilized.

• Make sure all panhead locks are

tightened securely before mounting

any optic.

• Do not overtighten locks as this may

damage the locking mechanisms.

• Make sure optic is securely fastened to

quick release plate before mounting to

tripod.

• Do not carry the tripod by the panhead.

• Remove optic before adjusting or

transporting your tripod.

• Always store tripod in carrying case

when not in use.

˜°˛˝˙ˆˇ˘ˇ˘ˇ

˜°˛˝˙ˆ˛ˇ˘ˇˇˇ˛˝˛ˆˇ ˛ˇˇ˛˙˛ˆ˛˛ ˇ˛˛ ˇ˛˝˛˙˛ˇ˛˝˙ˆ

°˙ ˙˙

ˆˆ˙ ˙˙ ˇˆˆ˙ ˙˙

˙˘˘˘˝  ˙˘ˆ˝˙˛˝ ˘˛˙˙ˆ˘˘˝

www.carson.com

Carson Optical 2070 5th Avenue, Ronkonkoma, NY 11779 | Tel: 631-963-5000

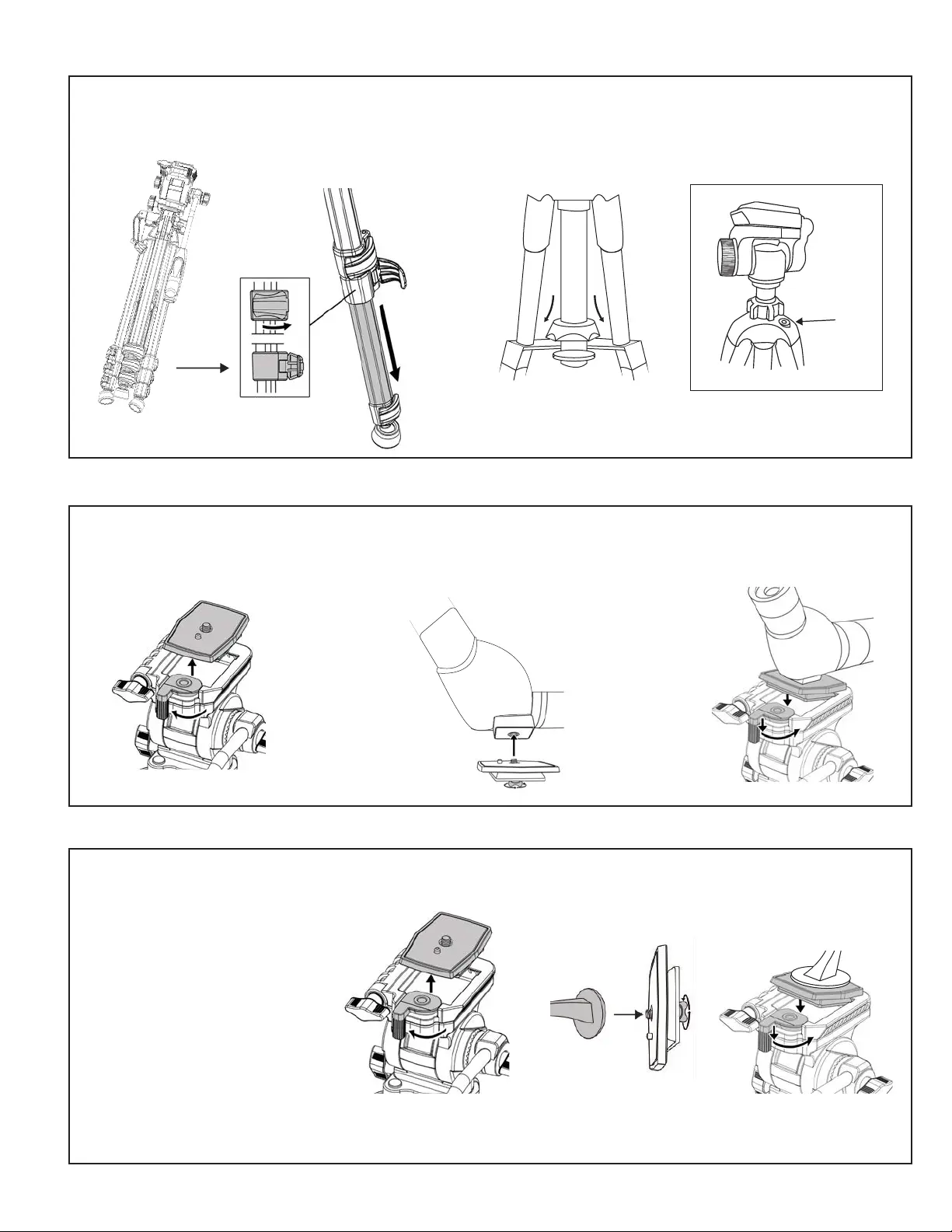

SETTING UP TRIPOD:

1. Flip open leg locks and extend legs to desired

height. Close leg locks to lock in place (Fig. 1).

Fig. 1

2. To make sure tripod is level, the bubble level should

appear centered inside red circle. Adjust leg height as

needed to level tripod (Fig. 2).

Bubble Level

Fig. 2

ATTACHING CAMERA OR SPOTTING SCOPE:

1. Pull back plate locking lever

to remove quick release plate

(Fig. 3).

Fig. 3

2. Insert mounting screw into thread on optic

and turn wingnut (located on underside of

quick release plate) clockwise until tight.

This will secure optic to plate (Fig. 4).

3. Reattach quick release plate to

Fig. 4 Fig. 5

ATTACHING BINOCULARS:

PLEASE NOTE: To attach your full sized

binoculars to a tripod, you will need a

tripod binocular adapter (not included).

1. Pull back plate locking lever to remove

quick release plate (Fig. 6).

2. Insert mounting screw into thread on

adapter and turn wingnut (located on

underside of quick release plate)

clockwise until tight. This will secure

adapter to plate (Fig. 7).

3. Reattach quick release plate to

tripod head. Press down plate and

lever will shift into place and lock

(Fig. 8).

4. Attach binocular to adapter.

Fig. 6

Fig. 8

Fig. 7

tripod head. Press down plate and

lever will shift into place and lock

(Fig. 5).
