Side 1/48
CONTENTS
Preparation . . . . . . . . . . . . . . . .1-4
Assembly . . . . . . . . . . . . . . . . .5-9
Installation . . . . . . . . . . . . . . 10-19
Install the Door Control. . . . . . 20-21
Install the Protector System
®
. . 22-25
Power. . . . . . . . . . . . . . . . . . 26-28
Adjustments . . . . . . . . . . . . . 29-31
Battery Backup. . . . . . . . . . . . 32-33
Operation . . . . . . . . . . . . . . . . . 34
Features . . . . . . . . . . . . . . . . . . 35
Door Control . . . . . . . . . . . . . 36-38
Remote Control . . . . . . . . . . . 39-40
To Erase the Memory . . . . . . . . . 40
To Open the Door Manually . . . . . 40
Maintenance . . . . . . . . . . . . . . . 41
Troubleshooting. . . . . . . . . . . 42-43
Accessories. . . . . . . . . . . . . . . . 44
Warranty. . . . . . . . . . . . . . . . . . 45
Repair Parts . . . . . . . . . . . . . 46-47
Belt Drive Battery Backup
Garage Door Opener
The Chamberlain Group, Inc.
845 Larch Avenue
Elmhurst, Illinois 60126-1196
■ Please read this manual and the enclosed safety materials carefully!
■ Fasten the manual near the garage door after installation.
■ The door WILL NOT CLOSE unless the Protector System
®
is connected and
properly aligned.
■ Periodic checks of the garage door opener are required to ensure safe operation.
■ The model number label is located on the left side panel of your garage door
opener.
■ This garage door opener is compatible with MyQ
®
and Security✚
2.0™
accessories.
■ DO NOT enable the Timer-to-Close feature if you are installing the garage
door opener on a one-piece door. The Timer-to-Close is to be used ONLY with
sectional doors.
www.chamberlain.com
Model Number:
Serial Number:
Date of Purchase:
Models
• HD920EV
• HD930EV
• LW5000EV
• WD962KEV
• WD962KPEV
• WD962MLEV
• 349544
FOR RESIDENTIAL USE ONLY
Write down the following information for
future reference:
.
.
1
Safety Symbol and Signal Word Review
This garage door opener has been designed and tested to offer safe service provided it is installed,
operated, maintained and tested in strictaccordance with the instructions and warnings contained in this
manual.
When you see these SafetySymbols and Signal Words on the following pages,they will alert you to the
possibilityof serious injury or death if you do notcomply with the warnings that accompany them. The
hazard may come from something mechanical or from electricshock. Read the warnings carefully.
Mechanical
Electrical
When you see this Signal Word on the following pages,itwill alert you to the possibility of damage to
your garage door and/or the garage door opener if you do notcomply with the cautionary statements that
accompany it.Read them carefully.
Check the Door
To prevent possible SERIOUS INJURY or DEATH:
l
ALWAYS call a trained door systems technician ifgarage door binds,sticks, or is out of balance.
An unbalanced garage door may NOT reverse when required.
l
NEVER try to loosen, move or adjustgarage door, door springs,cables,pulleys, bracketsor their
hardware, ALL of which are under EXTREME tension.
l
Disable ALL locks and remove ALL ropes connected to garage door BEFORE installation and
operating garage door opener to avoid entanglement.
To prevent damage to garage door and opener:
l
ALWAYS disable locks BEFORE installing and operating the opener.
l
ONLY operate garage door opener at120 V, 60 Hzto avoid malfunction and damage.
Before you begin:
1. Disable locksand remove any ropes connected to the garage door.
2. Liftthe door halfway up.Release the door. Ifbalanced,it should stay
in place,supported entirely by itssprings.
3. Raise and lower the door to checkfor binding or sticking. Ifyour door
binds, sticks,or is out of balance, call a trained door systems
technician.
4. Check the seal on the bottom of the door. Any gap between the floor
and the bottom of the door must not exceed 1/4 inch (6 mm).
Otherwise, the safety reversal system maynot work properly.
5. The opener should be installed above the center ofthe door. If there
is a torsion spring or center bearing plate in the wayof the header
bracket,itmay be installed within 4feet (1.2 m) to the left or right of
the door center. See page11.
Torsion
Spring
Extension
Spring
OR
Preparation
2
Additional Items You May Need:
Surveyyour garage area to see if you will need any ofthe following items:
n
(2) 2X4 PIECES OF WOOD
Maybe used to fasten the header bracketto the structural supports.Also used to position the
garage door opener during installation and for testing the safetyreversing sensors.
n
SUPPORT BRACKET AND FASTENING HARDWARE
Mustbe used if you have a finished ceiling in your garage.
n
EXTENSION BRACKETS (MODEL 041A5281-1) OR WOOD BLOCKS
Depending upon garage construction, extension bracketsor wood blocks may be needed to
install the safetyreversing sensor.
n
FASTENING HARDWARE
Alternate floor mounting of the safety reversing sensor will require hardware not provided.
n
OUTSIDE QUICK RELEASE (MODEL 7702CB)
Required for a garage with NO accessdoor.
n
DOOR REINFORCEMENT
Required if you have a lightweight steel, aluminum,fiberglass or glasspanel door.
n
RAIL EXTENSION KIT
Required if your garage door is more than 7 feet (2.13 m) high.

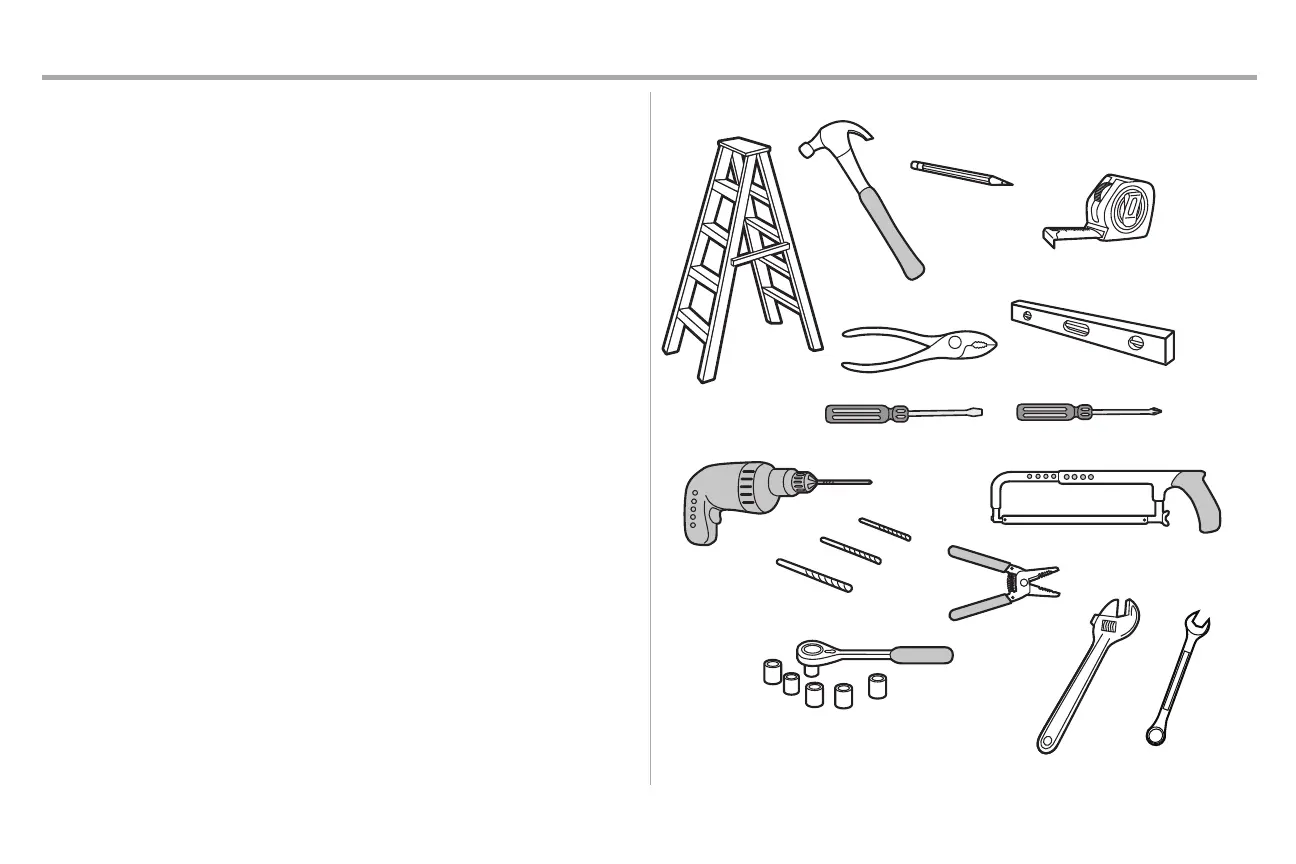

Tools Needed
2
1
3/16
7/16
1/2
5/32
5/16
5/8
9/16
1/4
7/16
Preparation
