Assembly instructions © 2017
© 2017 Char-Broil, LLC Columbus, GA 31902
Printed in China
06/07/17 • G466-016-150801
.
Date Purchased
IMPORTANT: Fill out the product record information below.
See rating label on unit for serial number.
For support with your new barbecue, please call us at:
Amalgamated Hardware Merchants
Ph: 07 3208 1233
Email: enquiries@ahmaustralia.com.au
Note: Sales docket must be kept as proof of
purchase date.
For use with propane gas only ● For Outdoor Use Only
DO NOT USE INDOORS.
467790317, 467791317
Professional 3 Burner
Gas Grill
AGA 8544 G
2
1. Do not store or use petrol or other
flammable liquids or vapors in the vicinity of
this or any other appliance.
2. A gas cylinder not connected for use shall not
be stored in the vicinity of this or any other
appliance.
WARNING
CAUTION
For residential use only. Do not use for commercial
cooking.
DANGER
DANGER: Indicates an imminently hazardous situation
which, if not avoided, will result in death or serious injury.
WARNING
WARNING: Indicates an potentially hazardous situation
which, if not avoided, could result in death or serious injury.
CAUTION
CAUTION: Indicates a potentially hazardous situation or
unsafe practice which, if not avoided, may result in minor
or moderate injury.
Safety Symbols
The symbols and boxes shown below explain what each heading
means. Read and follow all of the messages found throughout
the manual.
DANGER
If you smell gas:
1. Shut off gas to the appliance, if possible.
2. Extinguish any open flame.
3. Open lid.
4. If odor continues, keep away from the
appliance and immediately call your gas
supplier or your fire department.
THIS BARBECUE IS FOR OUTDOOR USE ONLY.
CAUTION:
Read and follow all safety statements, assembly
instructions, and use and care directions before attempting
to assemble and cook.
INSTALLER/ASSEMBLER:
Leave this manual with consumer.
CONSUMER:
Keep this manual for future reference.
WARNING:
Failure to follow all manufacturer’s instructions could result
in serious personal injury and/or property damage.
CAUTION:
Some parts may contain sharp edges – especially as noted
in the manual! Wear protective gloves if necessary.
FOR YOUR SAFETY
2
TABLE OF CONTENTS
WARNING
DO NOT MODIFY THIS APPLIANCE.
IF THIS APPLIANCE REQUIRES SERVICING,
THE SERVICE MUST BE CARRIED OUT BY
AUTHORIZED PERSONNEL ONLY.
NEVER OPERATE THIS BARBECUE FOR
MORE THAN 15 MINUTES WITH THE LID
CLOSED.
For Your Safety..........................................................................2-3
Use and Care .........................................................................4-10
Limited Warranty.........................................................................11
Parts List.....................................................................................12
Parts Diagram.............................................................................13
Assembly................................................................................14-33
Troubleshooting......................................................................36-37
3
WARNING
The barbecue has been evaluated for safety only with one
griddle plate. Use of more may create an unsafe condition.
Gas Installation Codes
The appliance is certified
To AS 5263.0 and 5263.1.7 by AGA
Barbecue must be used in accordance with the
installation requirements of your local gas supply
authority, and the appropriate installation standard
AS 5601.
Gas Connection Requirements.
The regulator supplied with the barbecue must be used.
The regulator is supplied with a POL cylinder connection
for connection to a 9 kg gas cylinder.
The regulator supplied has a outlet pressure of 2.75 kPa
This pressure is preset and cannot be adjusted.
USE OF BARBECUE UNDER OVERHEAD
While acceptable locations to use the barbecue are shown
on page 6. Char-Broil recommends not to use the barbecue
under any overhead. The smoke from cooking, especialy
with IR cooking, contains grease particles which will deposit
on the overhead.
Specification
3 main burners at 8.43 MJ/h each
1 side burner at 13.7 MJ/h
Total 39.0 MJ/h
Gas consumption @ 2.75 kPA
Injector size
Main burners - 0.82 mm
Injector size
Side burner - 1.07 mm

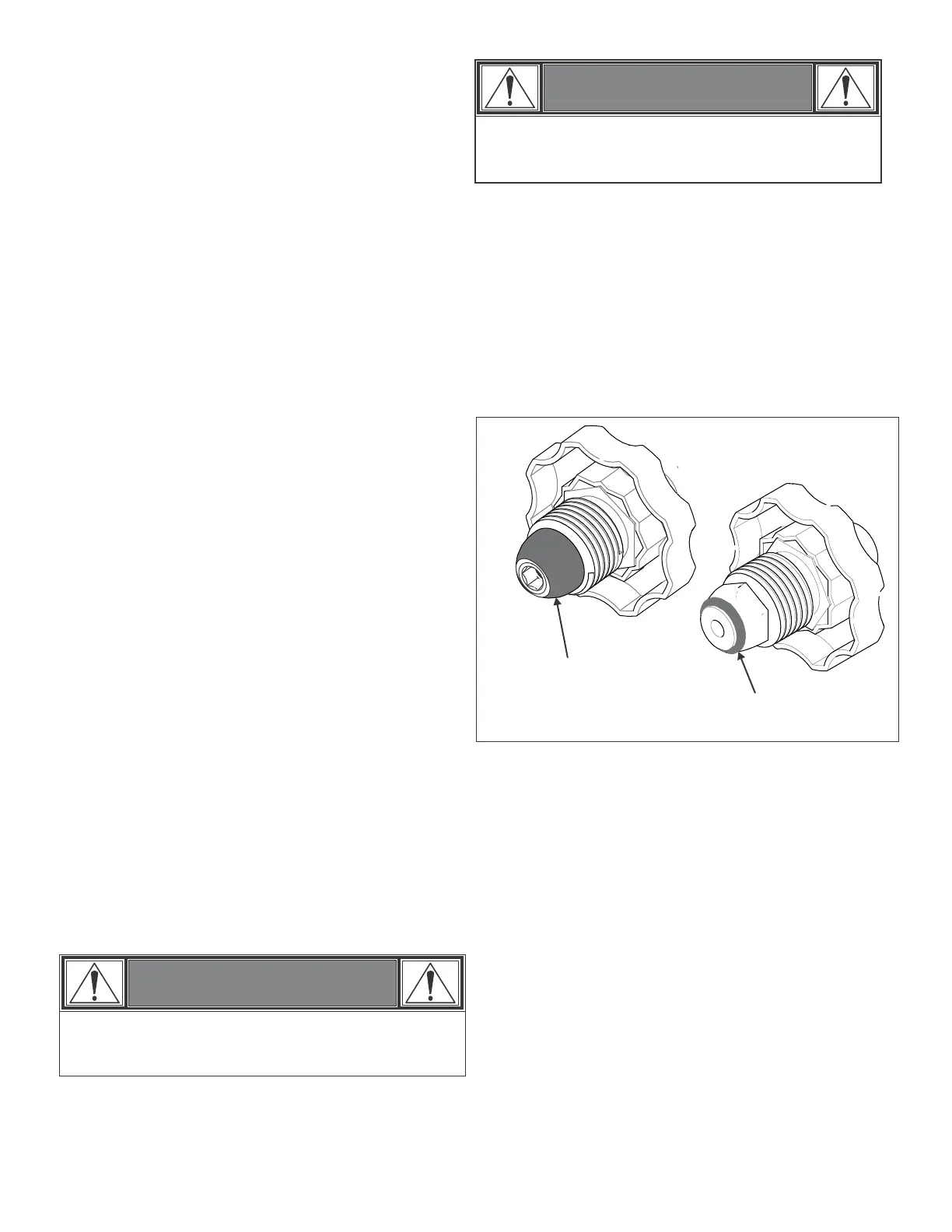

Check that "o" ring seal between the appliance
and the gas container are in place and in good
condition before connecting the gas container
Do not use this appliance if it has damaged or
worn "o" ring seal.
Each time prior to connecting regulator to
cylinder verify “o” - ring is in position as shown
below.
If damaged or missing replace prior to use.
WARNING
Leak check the regulator cylinder connection at
each use as shown on page 5.
Recommended Maintenance
Each Use
Clean and oil cooking grate assemblies
Clean/Inspect firebox
Clean grease tray
Check gas supply hose for cracks/leaks
Check gas regulator for leaks
Check that all gas fittings are tight
Every 6 months
Clean/Inspect burners and venturis
Check burners for corrosion
Others
Leak checks as specified in guide
Seal
O-Ring
