Data Sheet

Cisco 10000 Series Performance Routing Engine 3

The Cisco

10000 Series Performance Routing Engine 3 (PRE-3) (Figure 1) increases

the performance, feature set, and scalability of the Cisco 10000 Series Router.

Product Overview

The Cisco 10000 Series is a service provider edge aggregation router that offers a single solution

for leased-line, ATM, Frame Relay, and broadband aggregation while providing customers with

high-performance IP services, maximum platform scalability, and high availability.

Service providers require scalable networks to profitably meet their customers’ requirements for

better performance, more services, and higher reliability. Edge routers, such as the Cisco 10000

Series, will be needed to manage higher-bandwidth requirements, more subscribers, and multiple

service levels ranging from best-effort consumer Internet data services to high-priority business

applications, voice, and video.

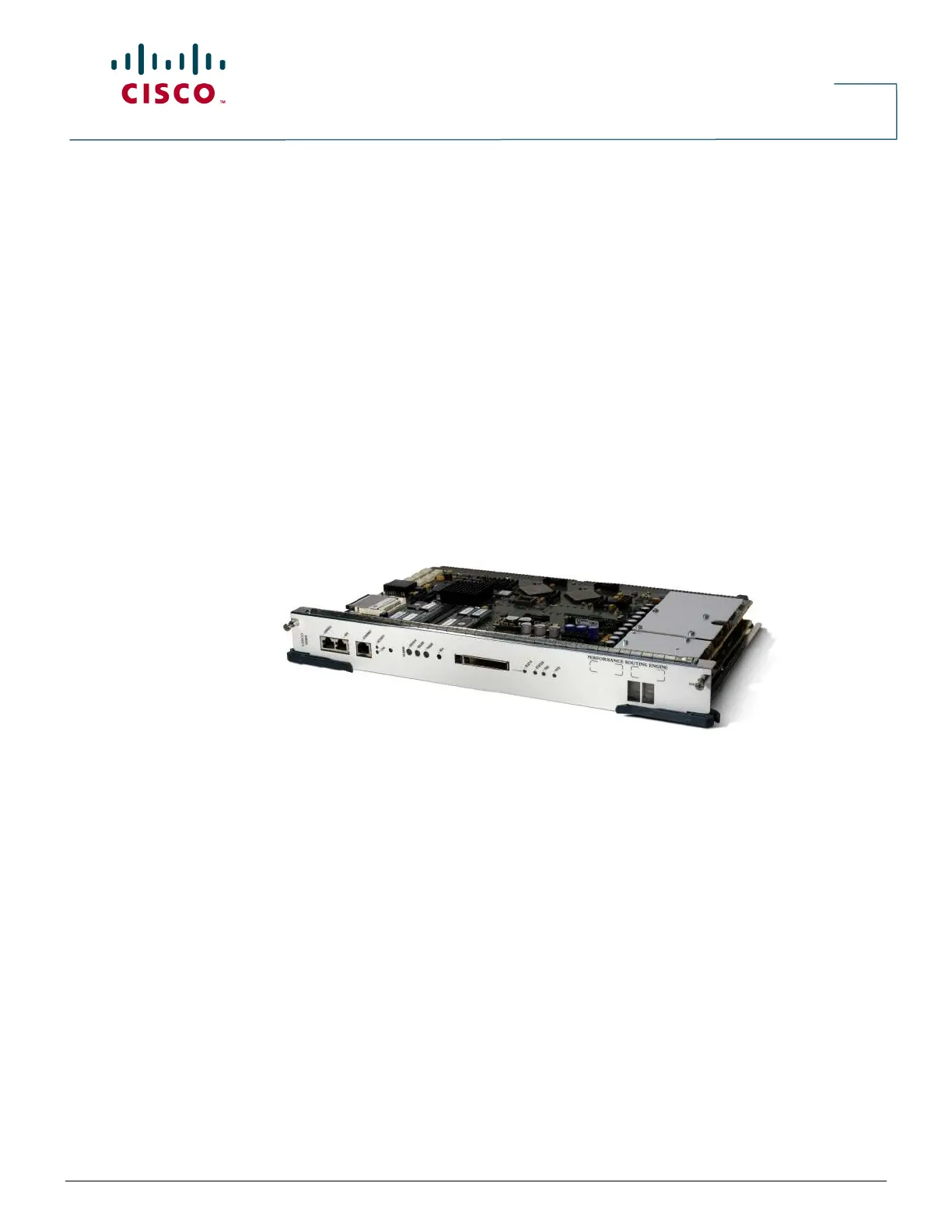

Figure 1. Cisco 10000 Series Performance Routing Engine 3

Designed to meet new requirements from service providers for high-capacity aggregation with

sophisticated IP services, the Cisco 10000 Series PRE-3 uses the latest generation of the Cisco

patented Parallel Express Forwarding (PXF) technology. PXF is a parallel multiprocessor

architecture that helps enable deployment of multiple IP services while maintaining peak

performance throughput. The PRE-3 also introduces the Hierarchal Queuing Framework (HQF) to

the Cisco 10000 Series Routers. The HQF implementation on the PRE-3 allows three levels (class,

logical, and physical) of scheduling to apply queuing and shaping (see Figure 2).

Applications

The Cisco 10000 Series PRE-3 can be used to deliver triple-play services for both ATM and

Ethernet transport networks. A service provider can use the flexibility and performance of the PRE-

3 to simultaneously deliver data, voice, and video to both residential and business customers.

Ethernet service examples include:

●

Class – Multiple packet queues for data, voice, or video

●

Logical – PPP sessions grouped by Gold, Bronze, or Silver packages for bandwidth and

quality of service (QoS) levels

●

Physical – VLANs to separate consumer, business, and wholesale customers

Data Sheet

ATM service examples include:

●

Class – Multiple packet queues for data, voice, or video

●

Logical – ATM VCs (virtual circuits) grouped by Gold, Bronze, or Silver packages for

bandwidth and QoS levels

●

Physical – ATM Virtual Paths (VPs) to separate consumer, business, and wholesale

customers

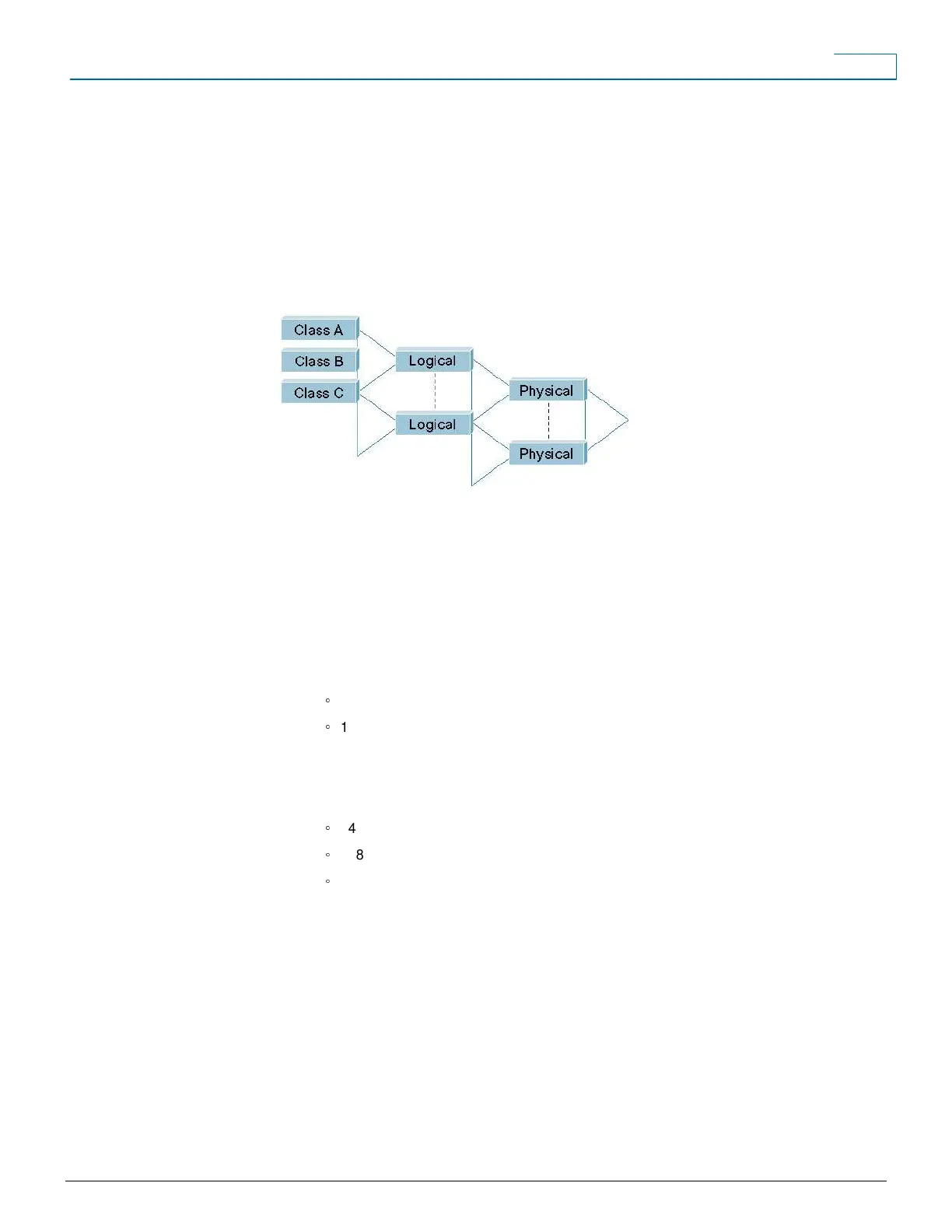

Figure 2. Examples of Three-Level Scheduling with HQF and the Cisco 10000 Series PRE-3

Key Features and Benefits

The Cisco 10000 Series PRE-3 delivers both scalability improvements and new features:

●

Provides up to 9.7 million packets per second (mpps) of processing power for increased

throughput

●

Implements Hierarchal Queuing Framework (HQF) for up to three levels of service

granularity

●

Supports connection between the PRE-3 and the 51-Gbps chassis backplane

◦

3.2 Gbps transmit and receive to each full-height line card

◦

1.6 Gbps transmit and receive to each half-height line card

●

Includes 800-MHz route processor with 2GB ECC protected DRAM for new features and

scalability improvements

●

Delivers enhanced storage options for larger and more complex configurations

◦

14 MB nonvolatile RAM (NVRAM)

◦

128 MB Compact Flash – fixed internal memory

◦

512 MB or 1GB Compact Flash – front panel removable memory

●

Uses Cisco patented PXF technology to provide maximum IP service flexibility without

performance impact

●

Supports processor redundancy – helping enable 99.999-percent network uptime

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Ruter
Modell:	10000-1P3-1AC
Vekt:	40.4 g
Prosessorfrekvens:	800 MHz
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Internminne:	128 MB
Inngangsspenning:	100–240 V
Nettverksstandard:	IEEE 802.1p
Ethernet WAN:	Ja
Flash-minne:	2000 MB
Dimensjoner (B x D x H):	48.4 x 253.2 x 406.4 mm
Utvidelsesspor:	8
Strømforbruk (vanlig bruk):	1280 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	2
Inngangsfrekvens:	50/60 Hz
Innebygd prosessor:	Ja
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Ethernet/bredbåndsforbindelse:	Ja
Krav til strømforsyning:	200 W
Webbasert administrasjon:	Ja
Overføringshastighet (Mbps):	3200 Mbit/s
Full tosidig:	Ja
