Data Sheet

Cisco 10000 Series Performance Routing Engine 4

The Cisco

10000 Series Performance Routing Engine 4 (PRE4) (Figure 1) addresses

the demand for increased performance, scalability, and hierarchical quality of service

(HQoS) to support diverse network-edge requirements for residential and business

services markets.

Product Overview

The Cisco 10000 Series is a Service Provider edge aggregation router that offers a single solution

for the diverse requirements of broadband aggregation, leased-line, Ethernet, ATM, and Frame

Relay services. The Cisco 10000 Series provides customers with superior price/performance,

industry-leading IP services, maximum platform scalability, and high availability.

Service providers require scalable networks to profitably meet their customers' requirements for

better performance, more services, and higher reliability. Edge routers, such as the Cisco 10000

Series, are needed to manage higher-bandwidth requirements, more subscribers, and multiple

service levels ranging from best-effort consumer Internet data services to high-priority business

applications, voice, and video.

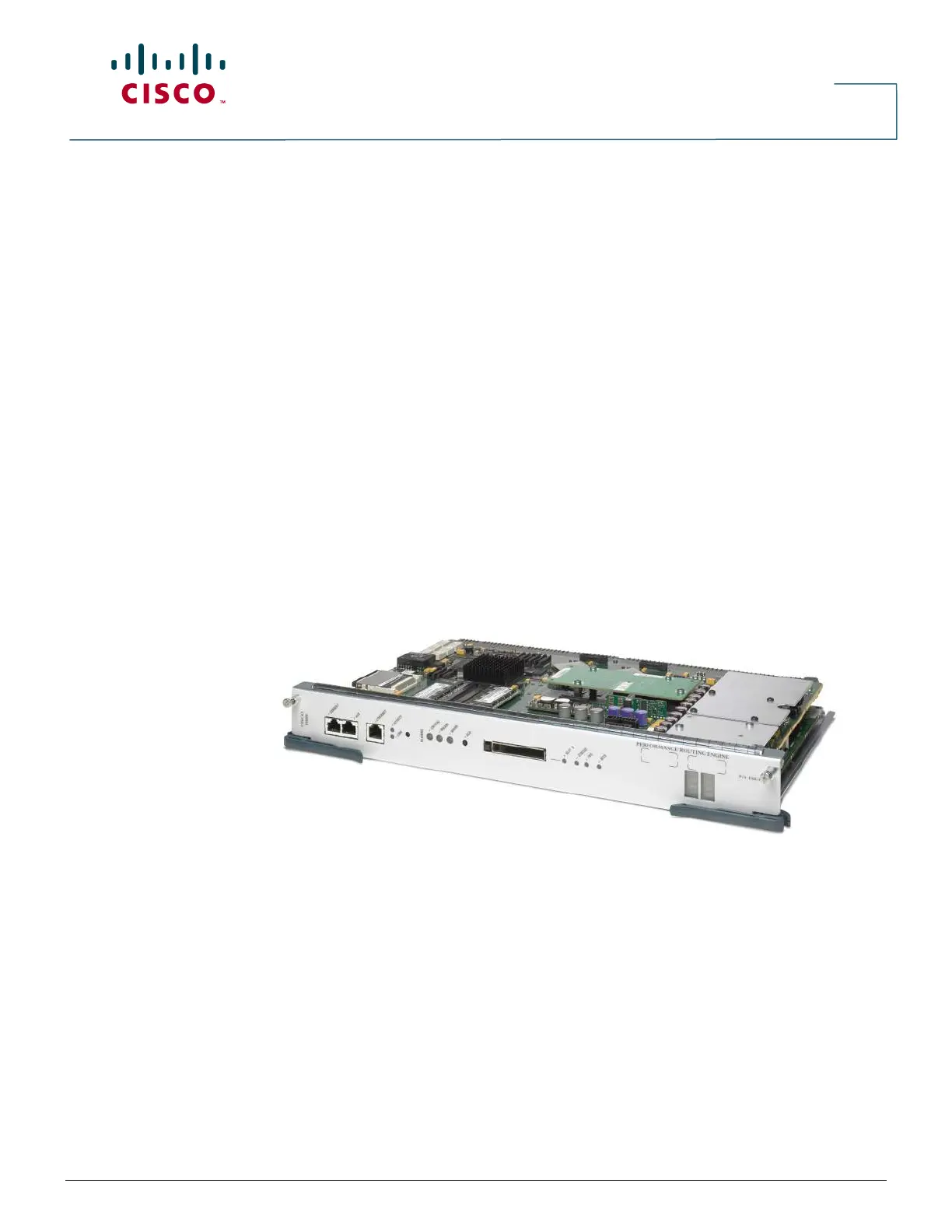

Figure 1. Cisco 10000 Series Performance Routing Engine 4

Designed to meet new requirements from service providers for high-capacity aggregation with

sophisticated IP services, the Cisco 10000 Series PRE4 uses the latest generation of the Cisco

patented Parallel Express Forwarding (PXF) technology. PXF is a parallel multiprocessor

architecture that enables deployment of multiple IP services while maintaining peak performance

throughput. The PRE4 also supports the flexible Hierarchal Queuing Framework (HQF) available

on the Cisco 10000 Series Routers. The HQF implementation on the PRE4 allows three levels

(class, logical, and physical) of scheduling to apply queuing and shaping (see Figure 2).

Applications

The Cisco 10000 Series PRE4 can be used to deliver triple-play services for both Ethernet and

ATM transport networks. A service provider can use the flexibility and performance of the PRE4 to

simultaneously deliver data, voice, and video to both residential and business customers.

Data Sheet

Ethernet service examples include:

●

Class – Multiple packet queues for data, voice, or video

●

Logical – PPP or IP sessions grouped by Gold, Bronze, or Silver packages for bandwidth

and QoS levels

●

Physical – QinQ or dot1Q VLANs to separate consumer, business, and wholesale

customers

ATM service examples include:

●

Class – Multiple packet queues for data, voice, or video

●

Logical – ATM virtual circuits grouped by Gold, Bronze, or Silver packages for bandwidth

and QoS levels

●

Physical – ATM virtual paths to separate consumer, business, and wholesale customers

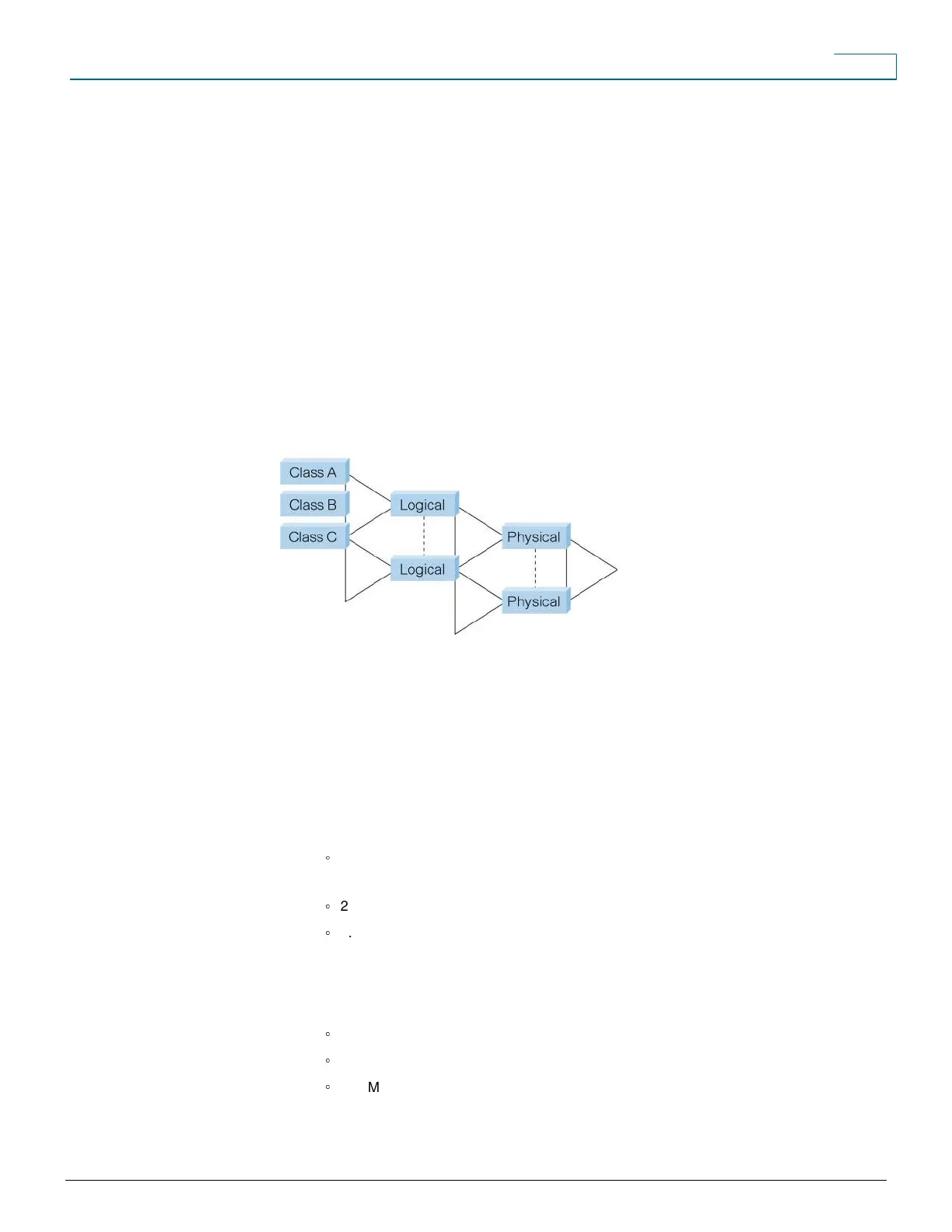

Figure 2. Examples of Three-Level Scheduling with HQF and the Cisco 10000 Series PRE4

Key Features and Benefits

The Cisco 10000 Series PRE4 delivers both scalability improvements and new features:

●

Provides up to 10 million packets per second (mpps) of processing power for increased

throughput

●

Delivers Hierarchal Queuing Framework (HQF) for up to three levels of service granularity

●

Supports increased bandwidth through link bonding connections between the PRE4 and

Cisco 10000 Series SPA Interface Processor (SIP)-600

◦

11.2 Gbps transmit and receive (full duplex) to any SIP (total bandwidth distributed

across installed shared port adapters [SPAs])

◦

2.8 Gbps transmit and receive (full duplex) to each full-height line card

◦

1.4 Gbps transmit and receive (full duplex) to each half-height line card

●

Includes 800-MHz route processor with 4 GB ECC protected DRAM for new features and

scalability improvements

●

Delivers enhanced storage options for larger and more complex configurations

◦

14 MB nonvolatile RAM (NVRAM)

◦

128 MB Compact Flash – fixed internal memory

◦

512 MB or 1 GB Compact Flash – front panel removable memory

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Ruter
Modell:	10000-1P4-1DC
Vekt:	4090 g
Prosessorfrekvens:	800 MHz
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Internminne:	4000 MB
Nettverksstandard:	IEEE 802.1p
Ethernet WAN:	Ja
Flash-minne:	128 MB
Vekt (imperial):	9 Ibs
Dimensjoner (B x D x H):	406.4 x 48.4 x 253.2 mm
Strømforbruk (vanlig bruk):	210 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	2
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 70 °C
Innebygd prosessor:	Ja
Driftshøyde:	60 - 4000 m
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	5 - 95
Ledelsesprotokoller/håndteringsprotokoller:	SNMP, RMON, Telnet
Overføringshastighet (Mbps):	11468 Mbit/s
Full tosidig:	Ja
Routerprotokoll:	OSPF
Datalinkprotokoll:	ATM, PPP, SONET
