Americas Headquarters:

Cisco Systems, Inc., 170 West Tasman Drive, San Jose, CA 95134-1706 USA

Cisco Aironet Dual-band Dipole Antenna

(AIR-ANT2524DB-R, AIR-ANT2524DG-R, and

AIR-ANT2524DW-R)

This document describes and provides specifications for the Cisco Aironet high-performance, dual-band

dipole antenna. The antenna operates in both the 2.4-GHz and 5-GHz frequency bands and is designed

for use with Cisco Aironet 2.4-GHz and 5-GHz radio products that have dual-band reverse-polarity TNC

(RP-TNC) antenna ports. The antenna has a nominal gain of 2 dBi in the 2.4-GHz frequency band and

4 dBi in the 5-GHz frequency band. The three antennas covered in this document are electrically the

same. They differ physically by the color of the radome, which is specified by the product part number

shown in Table 1.

The following information is provided in this document.

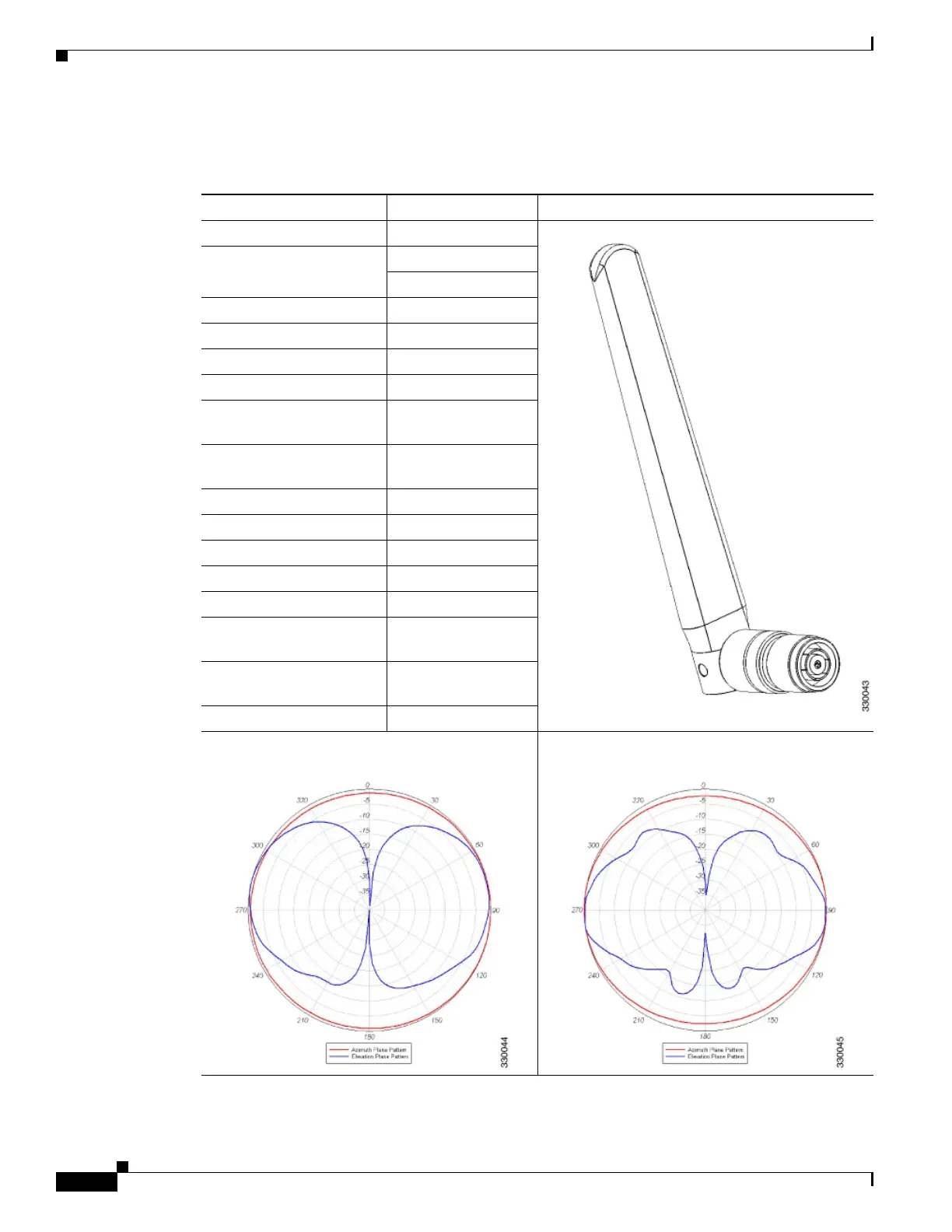

• Technical Specifications, page 2

• System Requirements, page 3

• Features, page 3

• Installing the Antenna, page 3

• Obtaining Documentation and Submitting a Service Request, page 3

Table 1 Antenna Radome Colors

Antenna Part Numbers Radome Color

AIR-ANT2524DB-R Black

AIR-ANT2524DG-R Gray

AIR-ANT2524DW-R White

Produkspesifikasjoner

Merke:	Cisco
Kategori:	fjernsynsantenne
Modell:	AIR-ANT2524DW-R=
Vekt:	38.5 g
Bredde:	21 mm
Dybde:	168.5 mm
Opprinnelsesland:	China
Pakkevekt:	136.05 g
Antall per pakke:	1 stykker
Impedans:	50 Ω
Produktfarge:	Grå
Pakkedybde:	184.15 mm
Pakkehøyde:	49.276 mm
Pakkebredde:	152.4 mm
Driftstemperatur (T-T):	-20 - 60 °C
Oppbevaringstemperaturomåde (Celsius):	-40 - 85 °C
Harmonisert system (HS)-kode:	85177100
Antennetype:	Rundtstrålende antenne
Antenne forbedringsnivå (max):	4 dBi
Formål:	Innendørs
Frekvensbånd og driftskanaler:	2.4/5 GHz
Kontaktkjønn:	Hankjønn
Frekvens (MHz):	2.4 - 2.5GHz, 5.15 - 5.85GHz
Antennetilkoblingstype:	RP-TNC
Voltage Standing Wave Ratio (VSWR):	2:1
Antennevinning (5 GHz):	4 dBi
Antennevinning (2,4 GHz):	2 dBi
Horisontal strålingsbredde (2,4 GHz):	63 °
Horisontal strålingsbredde (5 GHz):	39 °
