Side 1/37

Cisco Model DPC3000 and EPC3000

DOCSIS 3.0 4x4 Cable Modem

User Guide

In This Document

 IMPORTANT SAFETY INSTRUCTIONS ...............................................................2

 FCC Compliance.........................................................................................................7

 CE Compliance............................................................................................................8

 Introducing the DPC3000 and EPC3000................................................................10

 What's in the Carton? ...............................................................................................12

 Front Panel Description ...........................................................................................13

 Back Panel Description ............................................................................................14

 What Are the System Requirements for Internet Service?..................................15

 How Do I Set Up My High-Speed Internet Access Account? ............................16

 Where Is the Best Location for My Cable Modem?..............................................17

 How Do I Mount the Cable Modem on the Wall? ...............................................18

 How Do I Connect My Devices to Use the Internet?...........................................21

 Connecting the Cable Modem for High-Speed Data Service .............................22

 Installing USB Drivers..............................................................................................24

 Frequently Asked Questions...................................................................................26

 Tips for Improved Performance .............................................................................31

 Front Panel LED Status Indicator Functions.........................................................32

 Notices........................................................................................................................35

 For Information.........................................................................................................36

2 4023034 Rev C

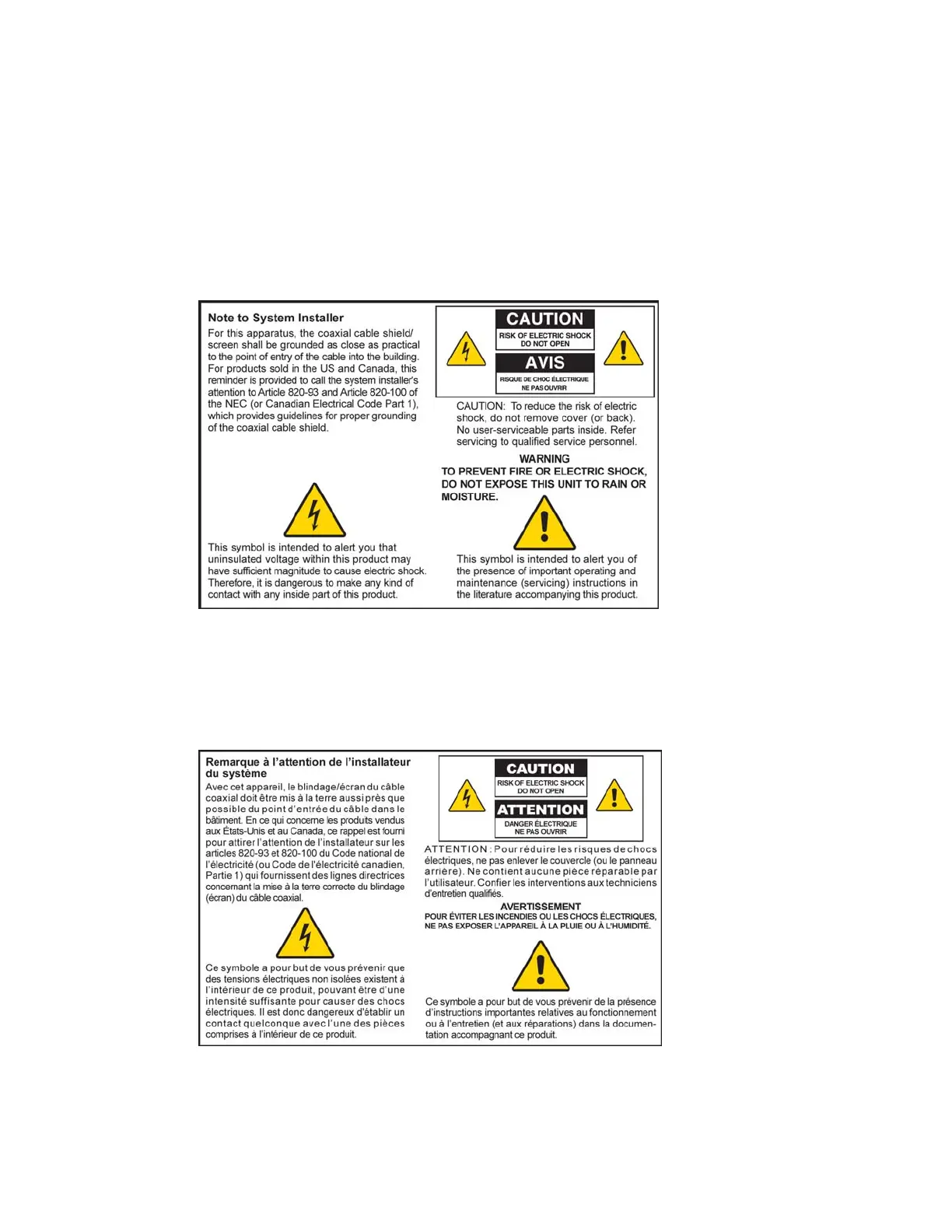

IMPORTANT SAFETY INSTRUCTIONS

Notice to Installers

The servicing instructions in this notice are for use by qualified service personnel only. To reduce the

risk of electric shock, do not perform any servicing other than that contained in the operating

instructions, unless you are qualified to do so.

Notice à l’attention des installateurs de réseaux câblés

Les instructions relatives aux interventions d’entretien, fournies dans la présente notice, s’adressent

exclusivement au personnel technique qualifié. Pour réduire les risques de chocs électriques, n’effectuer

aucune intervention autre que celles décrites dans le mode d'emploi et les instructions relatives au

fonctionnement, à moins que vous ne soyez qualifié pour ce faire.

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Ruter
Modell:	EPC3000
Vekt:	292 g
LED-indikatorer:	Link, Power
Frekvensområde:	0.088 - 1.002 GHz
Maksimal dataoverføringshastighet:	55.2 Mbit/s
Kabler inkludert:	LAN (RJ-45), USB
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 70 °C
DC-inngangskontakt:	Ja
Modulator:	128-QAM, 16-QAM, 32-QAM, 64-QAM, 8-QAM, QPSK
Krav til strømforsyning:	230 VAC/50-60 Hz, 12 VDC/1 A
Relativ luftfuktighet under drift (H-H):	0 - 95
Ledelsesprotokoller/håndteringsprotokoller:	SNMP V1/V2/V3
Strøm-LED:	Ja
Type grensesnitt:	USB 2.0
