Side 1/12

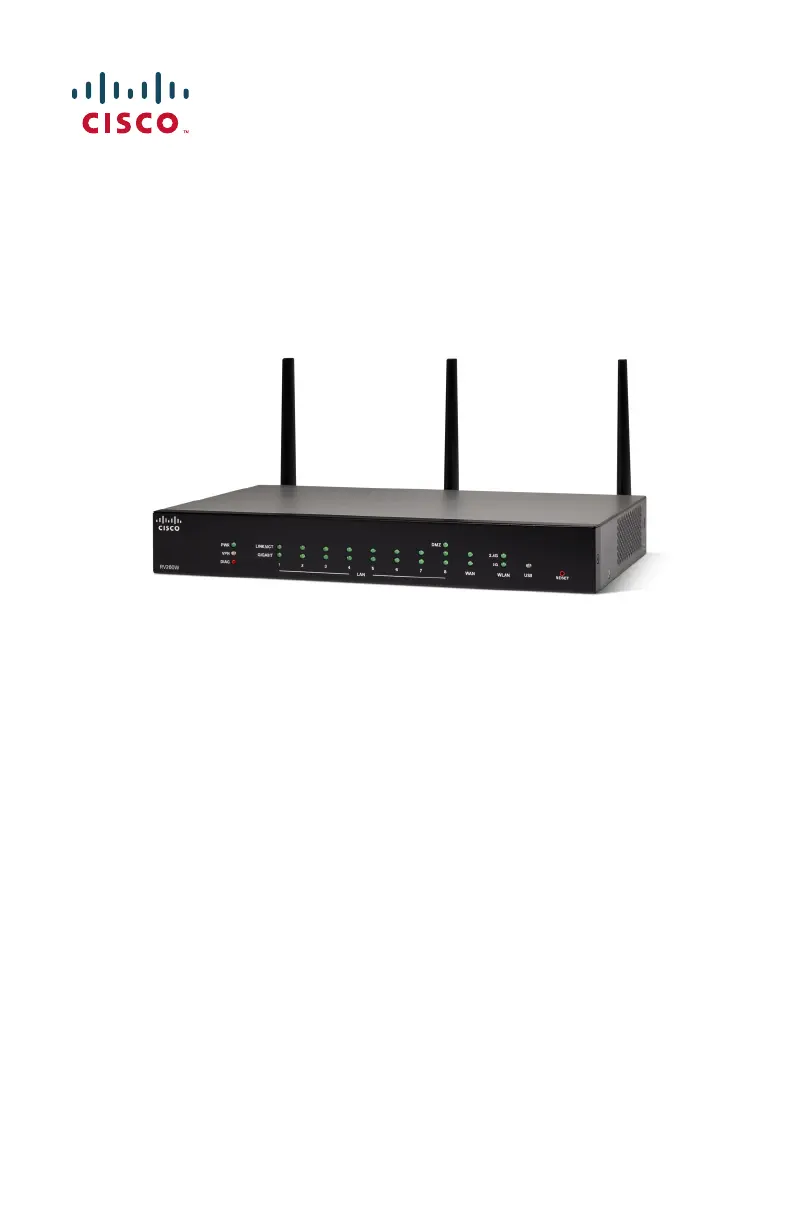

Quick Start Guide

Cisco RV260W Router

Package Contents

• Cisco RV260W Router

• Universal Power Adapter

• This Quick Start Guide

• Pointer Card/RoHS

• Technical Support Contact Card

• Ethernet Cable

• EU Directives 2014/53/EU Compliance Information (for EU SKU only)

2 Cisco RV260W Router Quick Start Guide

Welcome

Thank you for choosing the Cisco RV260W router.

The RV260W router provides reliable Internet access connectivity and

includes the following features:

• Easy to use UI with multiple set-up wizards.

• Eight port wireless router.

• Supports IPv6 firewall.

• Business-grade small business network in a box

This guide describes how to install your Cisco RV260W and launch the

web-based Device Manager.

Installing the Cisco RV260W

To prevent the device from overheating or being damaged:

• Ambient Temperature — Do not operate the device in an area that

exceeds an ambient temperature of 104°F (40°C).

•Air Flow — Be sure that there is adequate airflow around the device. If

wall mounting the device, make sure that the heat dissipation holes are

to the side.

• Circuit Overloading — Adding the device to the power outlet must not

overload that circuit.

• Mechanical Loading — Be sure that the device is level and stable to

avoid any hazardous conditions and that it is secure to prevent it from

sliding or shifting out of position. Do not place anything on top of the

device, as excessive weight may damage it.

Desktop Mounting

For desktop mounting, place the device on a flat surface so that it sits on its

four rubber feet.

Wall Mounting

The RV260W router has two wall-mount slots on the bottom panel. To

mount the router on a wall, you will need to use the wall-mount kit screws

(included).

Guidelines for Mounting the Router on a Wall

When choosing a location for mounting the router on a wall, consider cable

limitations and wall structure.

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Ruter
Modell:	RV260W
Produkttype:	Frittstående router
Vekt:	1359.93 g
Bredde:	170 mm
Dybde:	279.4 mm
Høyde:	38.5 mm
Wi-Fi-standarder:	Wi-Fi 5 (802.11ac)
USB-port:	Nei
Strømkildetype:	DC
Opprinnelsesland:	China
Pakkevekt:	1451.5 g
Antall per pakke:	1 stykker
Kablingsteknologi:	10/100/1000Base-T(X)
Nettverksstandard:	IEEE 802.1x
Ethernet WAN:	Ja
Brannmur:	Ja
DHCP-server:	Ja
DHCP-klient:	Ja
Multicast-støtte:	Ja
Gjennomstrømning:	0.8 Gbit/s
Produktfarge:	Black, Grey
Pakkedybde:	378.968 mm
Pakkehøyde:	130.048 mm
Pakkebredde:	272.034 mm
Beste Wi-Fi-standard:	Wi-Fi 5 (802.11ac)
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	8
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 70 °C
Lagringsrelativ fuktighet:	5 - 90
Harmonisert system (HS)-kode:	85176990
Quality of Service (QoS) støtte:	Ja
DC-inngangskontakt:	Ja
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Sikkerhetsalgoritmer:	IPSec
Ethernet/bredbåndsforbindelse:	Ja
Kommunikasjonsserieporter:	1
Relativ luftfuktighet under drift (H-H):	10 - 85
Ledelsesprotokoller/håndteringsprotokoller:	SNMP
Webbasert administrasjon:	Ja
Antennetype:	Utvendig
Portvideresending:	Ja
Indikasjonslampe:	Ja
Mobilnettverksgenerasjon:	Støttes ikke
Ethernet LAN-grensesnittype:	Gigabit Ethernet
DMZ støttes:	Ja
Network Address Translation (NAT):	Ja
Antall antenner:	3
VLAN støtte:	Ja
WAN tilkoblingstype:	RJ-45
WLAN data overførings rate (max):	- Mbit/s
Antennedesign:	Utvendig
Minnekort-innstikk:	Nei
DoS-angrepsbeskyttelse:	Ja
Antall VPN-tunneller:	20
Routerprotokoll:	RIP-1, RIP-2, RIPng
Statisk ruting:	Ja
Antall Combo SFP-ports:	1
