Quick Start Guide

Cisco Small Business

SPA 500S 32-Button Attendant Console for Cisco

Small Business SPA 500 Series IP Phones

Package Contents

• SPA 500S 32-Button Attendant Console for Cisco Small Business SPA

500 Series IP Phones

• Quick Start Guide

• Attachment Arm

• Attachment Arm Screws (2)

• Auxiliary Interconnect Cable

• Stand

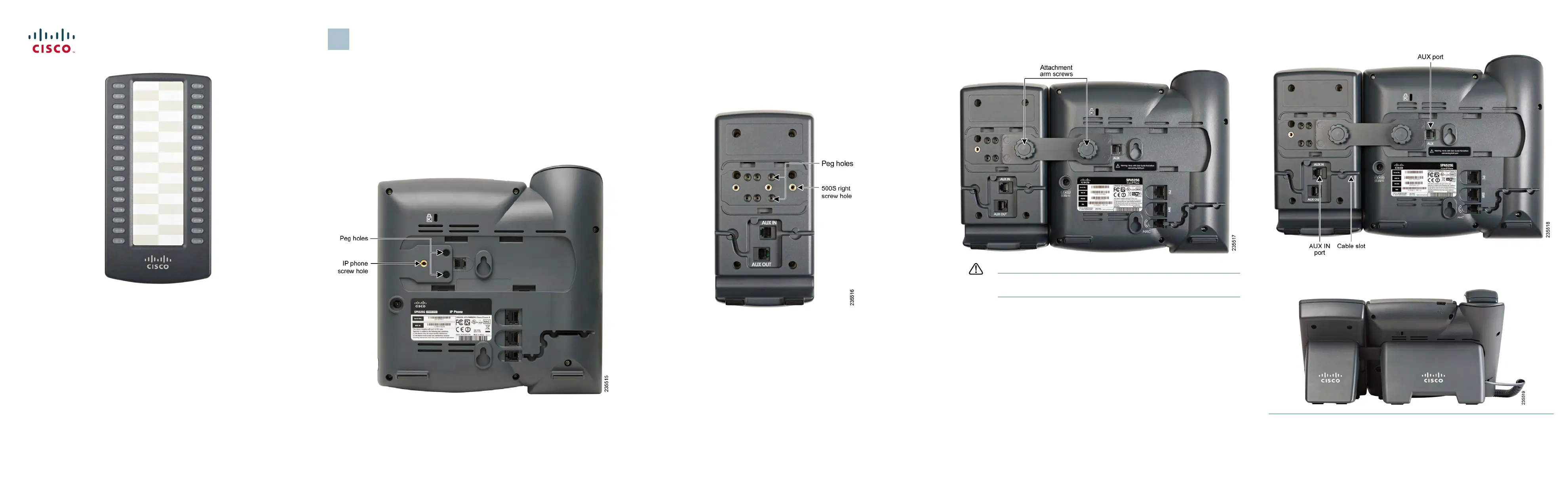

Connecting the Equipment

The following procedure describes how to attach the Cisco SPA 500S to a

Cisco SPA 500 Series IP Phone.

STEP 1 Turn both the Cisco SPA 500 Series IP Phone and the Cisco SPA 500S

face down.

STEP 2 Align the screw hole in the Cisco SPA 500 Series IP Phone with one of

the holes on the attachment arm.

STEP 3 Insert the pegs on the attachment arm into the peg holes as shown

below on the Cisco SPA 500 Series IP Phone.

STEP 4 Using an attachment arm screw, secure the attachment arm to the

Cisco SPA 500 Series IP Phone.

STEP 5 Align the right screw hole in the Cisco SPA 500S with the unused hole

on the attachment arm.

STEP 6 Insert the pegs on the attachment arm into the peg holes on the Cisco

SPA 500S.

STEP 7 Using an attachment arm screw, secure the attachment arm to the

Cisco SPA 500S.

CAUTION Do not plug a telephone line cord into the AUX port. Use only the

auxiliary cable provided with the Cisco SPA 500S.

STEP 8 Locate the AUX IN port on the back of the Cisco SPA 500S. Connect

one end of the auxiliary cable to this port.

STEP 9 Locate the AUX port on the back of the Cisco SPA 500 Series IP Phone.

Connect the other end of the auxiliary cable to this port. The Cisco SPA

500S is powered by the auxiliary cable with the Cisco SPA 500 Series

IP Phone; no additional power source is required.

STEP10 Route the auxiliary cable inside the cable slot of the Cisco SPA 500S.

STEP11 Attach the appropriate desktop stand to each unit.

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Ikke kategorisert
Modell:	SPA 500S
Vekt:	900 g
Bredde:	101 mm
Dybde:	39 mm
Høyde:	201 mm
Produktfarge:	Sort
Telefonlistekapasitet:	32 oppføringer
