78-100236-01A0 | MARCH / MARS 2014

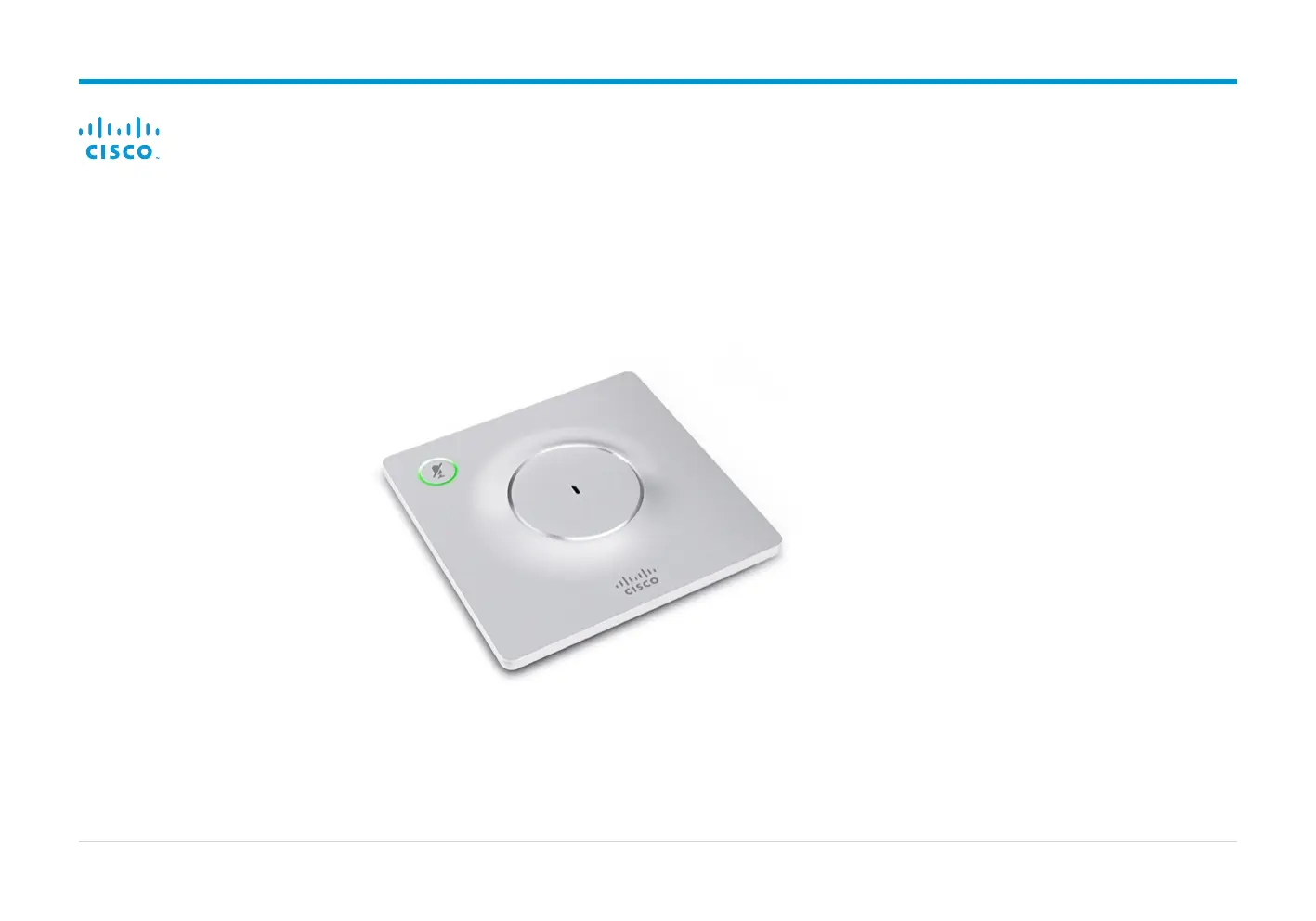

Cisco TelePresence Microphone 60

TABLE MOUNTING

MO NTAGE S UR TA BLE

For information on microphone placement, visit the Project Workplace

tool at www.cisco.com/go/projectworkplace.

Test the placement of the microphone before cutting the table.

Protect the microphone from sawdust.

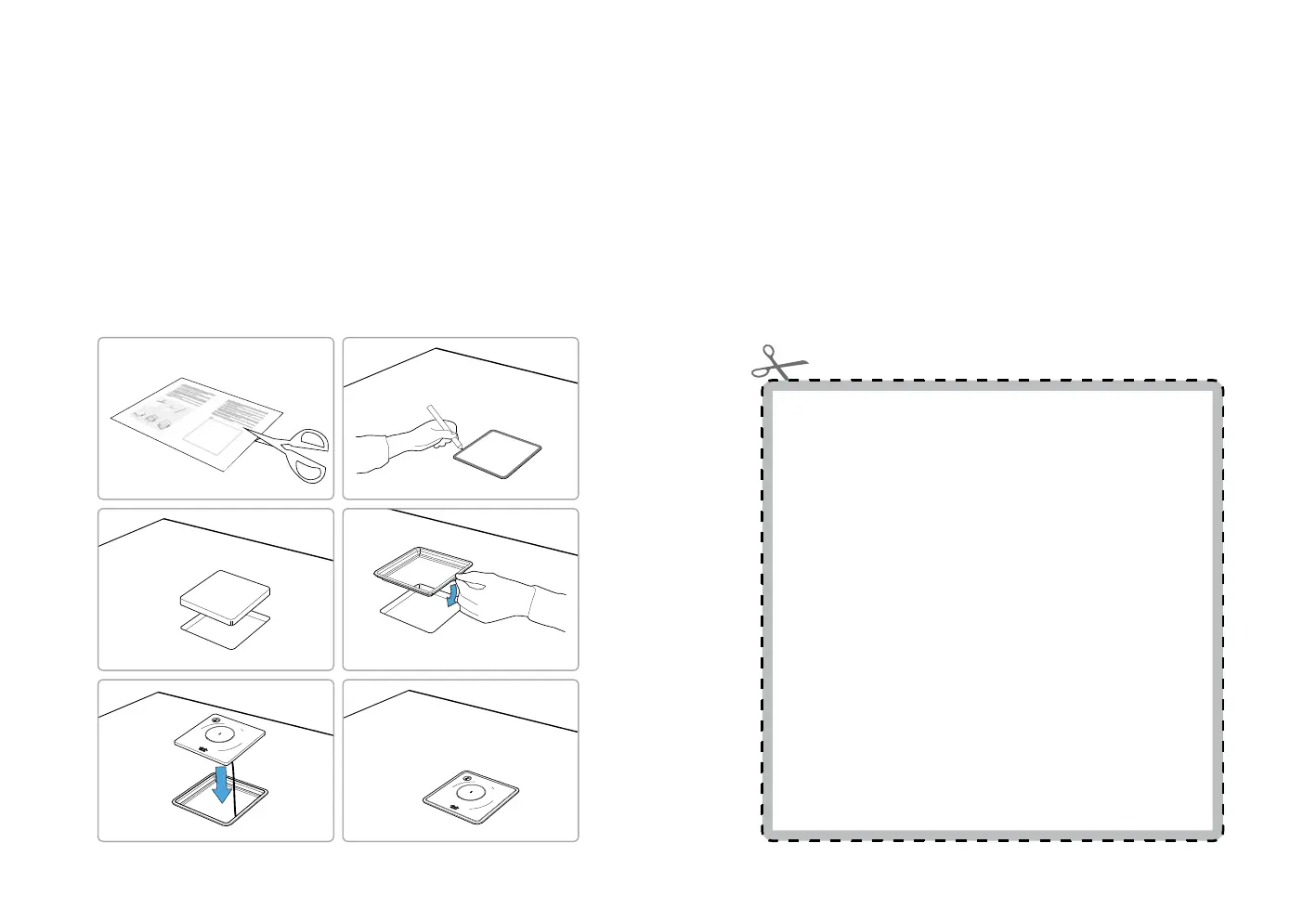

1. Cut out the template along the outside of the line.

Use the template to mark the table. Use tape to ensure the

template stays firmly in place when you mark the table.

•

Measure the drawing before you start sawing. The hole needs

to be accurate size to fit the frame.

• Size: 89 mm × 89 mm (± 0.5) / 3.5 × 3.5 in., with corners ∅ 10.

Cut a square hole with rounded corners in the table. Use paint-

er’s tape to protect the table. Sand the hole to accurate size.

Recommended tools: Jigsaw, drill and sandpaper.

Remove the film from the double-sided tape on the frame. Press

the frame in the hole, tape side down.

Lead the microphone cable through the hole and place the

microphone in the frame.

1. 2.

3. 4.

89 mm × 89 mm

3.5 inch × 3.5 inch

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Mikrofon
Modell:	Table Microphone 60
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Kompatible produkter:	SX80, MX700, MX800
Mikrofonretningstype:	Retningsuavhengig
Driftsspenning:	12 V
Mikrofonfrekvens:	80 - 15000 Hz
Mikrofonvekt:	180 g
Produktfarge:	Hvit
Enhetsgrensesnitt:	4-pin Hirose
Signal-til-støy-forhold (SNR):	69 dB
Modell/Type:	Bordmikrofon
Antall medfølgende produkter:	1 stykker
Mikrofondemping:	Ja
Dimensjoner (B x D x H) med stativ:	85 x 85 x 18 mm
