Quick Start Guide

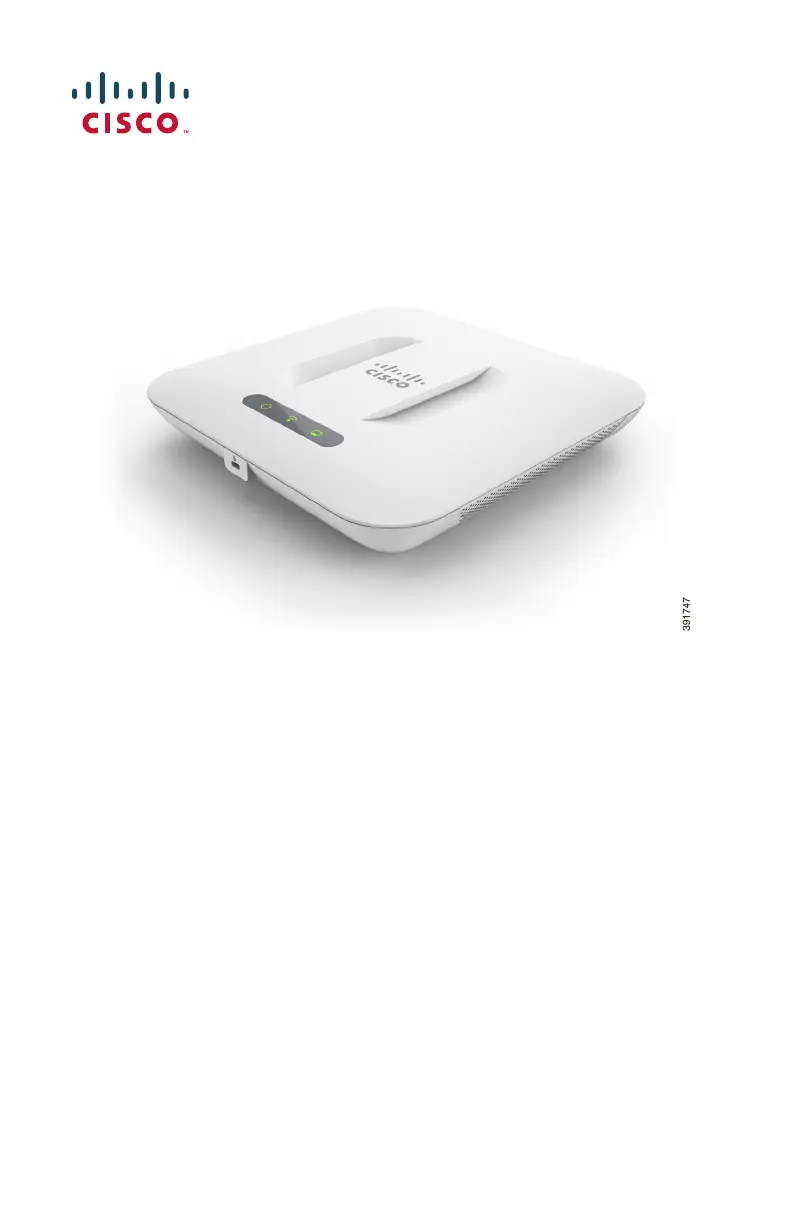

Cisco WAP351 Wireless-N Dual Radio Access

Point with 5 Ports Switch

Package Contents

• Wireless Access Point

• Mounting Kit

• This Quick Start Guide

• Product CD

• Ethernet Cable

• Technical Support Contact

• China RoHS (for China SKU only)

2 Cisco WAP351 Quick Start Guide

Welcome

Thank you for choosing the Cisco WAP351 Wireless-N Dual Radio Access

Point with 5 Ports Switch. The Cisco WAP351 is an indoor concurrent

dual-band radio 802.11n access point with integrated PoE switch.

This guide provides the general layout of the Cisco WAP351, describe

how to deploy the Cisco WAP351 in your network, and describe how to

configure the Cisco WAP351. For additional information, see

www.cisco.com/go/300_wap_resources.

Before You Begin

Before you begin the installation, make sure that you have the following

equipment and services:

• A computer with browser support for:

– Internet Explorer 7.0 or later

– Chrome 5.0 or later

– Firefox 3.0 or later

– Safari 3.0 or later

• Tools for installing the hardware

• One or more Ethernet network switches with PoE

Cisco WAP351 Features

Front Panel

The front panel of the Cisco WAP351 consists of three lights: Power,

WLAN, and PSE. For full descriptions of the colors of the lights and their

indications, see “Verifying the Hardware Installation”.

Back Panel

POWER—The POWER button is used to turn the power on and off. It is not

applicable when using PoE.

48V DC—The 48V DC jack is used to connect the power adapter to the

Cisco WAP351 if you are not using PoE.

RESET—See “Rebooting the Cisco WAP351 or Resetting to Factory

Defaults” for information on the RESET button.

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Tilgangspunkt
Modell:	WAP351
Vekt:	607 g
Bredde:	230 mm
Dybde:	230 mm
Høyde:	40 mm
LED-indikatorer:	Ja
Plassering:	Ceiling, Table, Wall
Sertifisering:	UL 60950-1\nCAN/CSA-C22.2 No. 60950-1\nIEC 60950-1\nEN 60950-1\nFCC\nICES-003\nEN 301.489-1
Internminne:	128 MB
Nettverksstandard:	IEEE 802.11a, IEEE 802.11b, IEEE 802.11e, IEEE 802.11g, IEEE 802.11i, IEEE 802.11n, IEEE 802.1D, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u
Flash-minne:	128 MB
Maksimal dataoverføringshastighet:	1000 Mbit/s
2,4 GHz:	Ja
5 GHz:	Ja
DHCP-klient:	Ja
Antall kanaler:	17 kanaler
Trådløs isolasjon:	Ja
AC-inngangsspenning:	48 V
Syslog:	Ja
Produktfarge:	Hvit
Monteringssett:	Ja
Operativsystemprogramvare 04:	Linux
Kabler inkludert:	LAN (RJ-45)
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	5
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 70 °C
Lagringsrelativ fuktighet:	5 - 90
Hurtigstartsguide:	Ja
Quality of Service (QoS) støtte:	Ja
tilbakestillingsknapp:	Ja
Av/på-bryter:	Ja
Ethernet LAN dataoverføringshastigheter:	10,100,1000 Mbit/s
Sikkerhetsalgoritmer:	802.1x RADIUS, WPA, WPA2
Relativ luftfuktighet under drift (H-H):	10 - 85
Ledelsesprotokoller/håndteringsprotokoller:	HTTP/HTTPS, SNMP v3, Bonjour
Intern:	Nei
Kabellåsport:	Ja
Kabellåstype:	Kensington
Webbasert administrasjon:	Ja
Strøm over Ethernet (PoE):	Ja
Antennetype:	Innvendig lys
Antenne forbedringsnivå (max):	5.3 dBi
Frekvensbånd og driftskanaler:	2.412 - 2.472, 5.18 - 5.24 GHz
Innput-strøm:	1.25 A
VLAN støtte:	Ja
Wi-Fi Multimedia (WMM)/(WME):	Ja
Operasjon modus:	Access Point (AP), WDS Bridge, Workgroup Bridge
Wi-Fi-dataoverføringshastighet (maks.):	300 Mbit/s
Automatisk kanalvelger:	Ja
Auto Trådløs Distribution System (WDS):	Ja
CD-manual:	Ja
