Side 1/13
Quick Start Guide

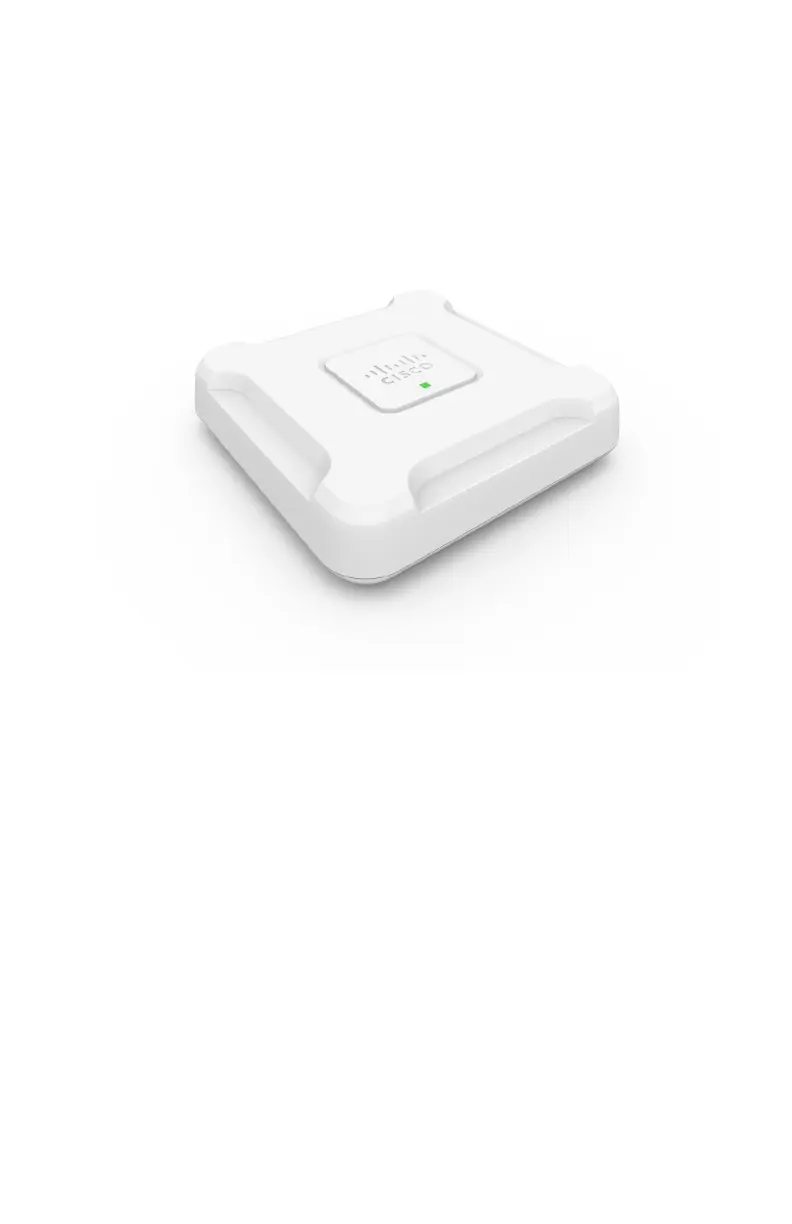

Cisco WAP581 Wireless-AC/N Dual Radio
Access Point with 2.5GbE LAN
Cisco WAP581 Wireless Access Point 1
Welcome
Thank you for choosing the Cisco WAP581 Wireless-AC/N Dual Radio
Wave 2 Access Point with 2.5GbE LAN. The Cisco WAP581 is an indoor
dual radio 802.11acWave2 + 802.11acWave1 access point with Power
over Ethernet (PoE). -PoE Supplied by UL Listed I.T.E.
NOTE The unit should be connected to PoE networks only, without routing to
the outside plant.
This guide is designed to familiarize you with the general layout of the
access point, describe how to deploy the device in your network, and
describe how to configure the device. Your access point has more features
and functionality than what is described in this guide. For additional
information, see the Administration Guide. A link to the Administration
Guide is found in Where to Go from Here.
Package Contents
Wireless Access Point
Mounting kit
This Quick Start Guide
Ethernet cable
Pointer Card with China RoHS
Technical Support Contacts
EU Directives 1999/5/EC Compliance Information (for EU SKU only)
Before You Begin
Before you begin the installation, make sure that you have the following
equipment and services:
A computer with one of the following browser support:
Internet Explorer 9.0 or later
A recent version of either Chrome, Firefox or Safari
Tools for installing the hardware
One or more Ethernet network switches with either PoE, PoE injector or
external power adapter
1

Produkspesifikasjoner

Merke: Cisco
Kategori: Tilgangspunkt
Modell: WAP581
Vekt: 1360.78 g
Bredde: 228.6 mm
Dybde: 228.6 mm
Høyde: 38.1 mm
LED-indikatorer: Ja
Plassering: Ceiling, Wall
Opprinnelsesland: China
Pakkevekt: 902.65 g
Sertifisering: UL 60950-1, CAN/CSA-C22.2 No. 60950-1, IEC 60950-1, EN 60950-1, FCC 15.247, 15.407, RSS-210, EN 300.328, EN 301.893, AS/NZS 4268.2003, FCC 15.107 + 15.109, ICES-003, EN 301.489-1 + -17
Internminne: 256 MB
Antall per pakke: 1 stykker
Nettverksstandard: IEEE 802.3af, IEEE 802.3at, IEEE 802.11ac
Antall brukere: 200 bruker(e)
Anbefalt bruk: Innendørs
Flash-minne: 128 MB
Maksimal dataoverføringshastighet: 2800 Mbit/s
2,4 GHz: Ja
5 GHz: Ja
DHCP-klient: Ja
Antennefunksjoner: Integrert antenne
AC-inngangsspenning: 100 - 240 V
AC-inngangsfrekvens: 50 Hz
Produktfarge: Hvit
Pakkedybde: 339.09 mm
Pakkehøyde: 110.998 mm
Monteringssett: Ja
Pakkebredde: 316.992 mm
Operativsystemprogramvare 04: Linux
Kabler inkludert: LAN (RJ-45)
Antall ethernets-/bredbåndstilkoblinger (RJ-45): 2
Driftstemperatur (T-T): 0 - 40 °C
Oppbevaringstemperaturomåde (Celsius): -20 - 70 °C
Lagringsrelativ fuktighet: 5 - 90
Hurtigstartsguide: Ja
Harmonisert system (HS)-kode: 85176990
Quality of Service (QoS) støtte: Ja
tilbakestillingsknapp: Ja
Oppgraderbar fastvare: Ja
Ethernet LAN dataoverføringshastigheter: 10,100,1000,2500 Mbit/s
Sikkerhetsalgoritmer: 802.1x RADIUS, HTTPS, SSID, WPA, WPA2
Relativ luftfuktighet under drift (H-H): 10 - 85
Intern: Nei
Kabellåsport: Ja
Kabellåstype: Kensington
Webbasert administrasjon: Ja
Strøm over Ethernet (PoE): Ja
Antenne forbedringsnivå (max): 6.23 dBi
Strømpluggtype: Type C
Produkter per (indre) fraktkasse: 1 stykker
Produkter per masterkasse (ytterkasse): 1 stykker
Antall antenner: 4
VLAN støtte: Ja
Wi-Fi Multimedia (WMM)/(WME): Ja
Automatisk kanalvelger: Ja
Gjennomstrømming datahastighet: 2800 Mbit/s
Antall SSID-støtte: 33
Auto Trådløs Distribution System (WDS): Ja
Romlige strømmer: 3:4x4
