Cisco WES610N Bruksanvisning

Cisco Ruter WES610N

Les nedenfor 📖 manual på norsk for Cisco WES610N (21 sider) i kategorien Ruter. Denne guiden var nyttig for 3 personer og ble vurdert med 3.8 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/21

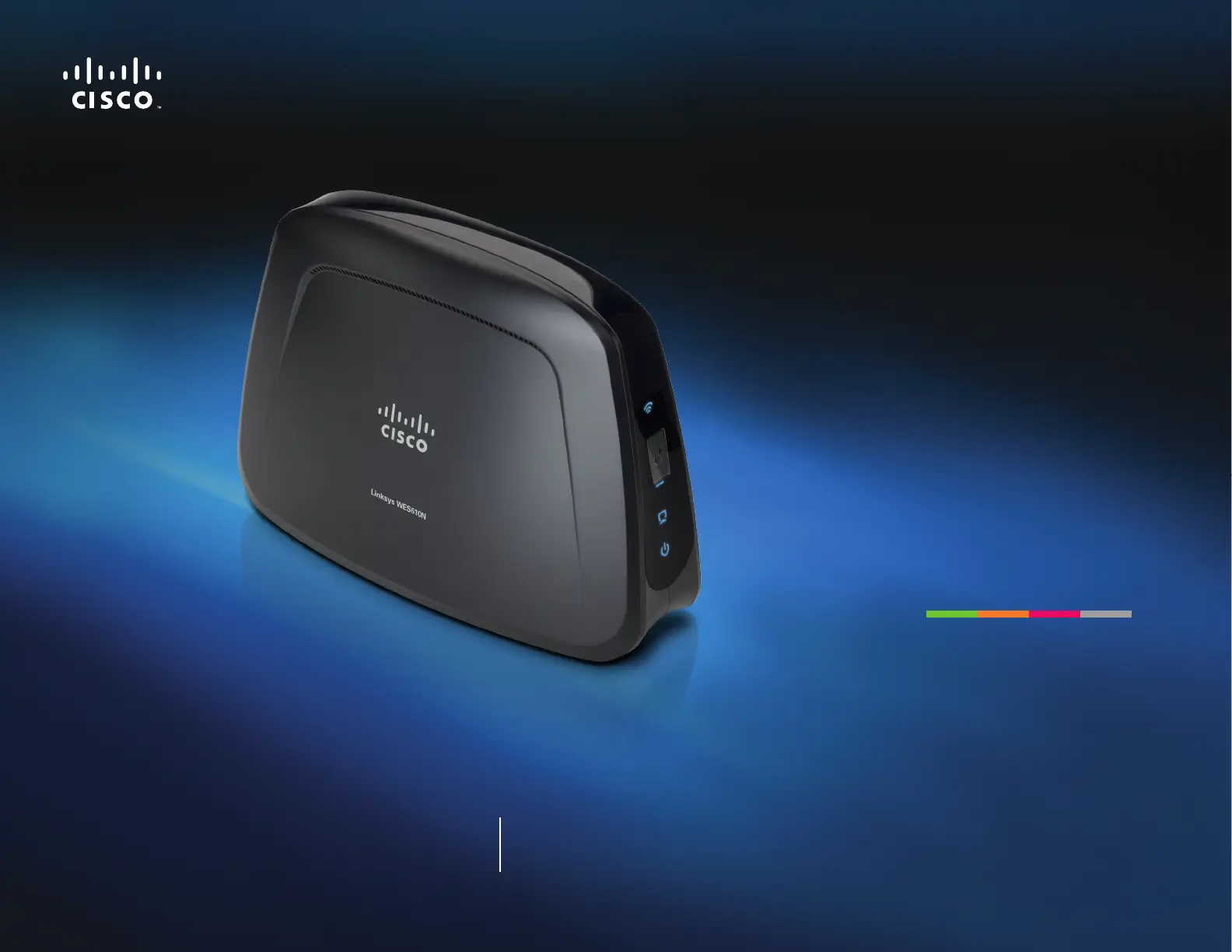

User Guide

Linksys WET610N/WES610N Dual-Band N Entertainment Bridge

Contents

Linksys E-Series

Product Overview

LED panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Ports panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Wireless Security Checklist

Change the default wireless network name or SSID 4

Change the default password 4

Enable MAC address ﬁltering 4

Enable encryption 4

General Network Security Guidelines. . . . . . . . . . . . . . . . . .4

Additional Security Tips . . . . . . . . . . . . . . . . . . . . . . . . . .5

Advanced Conﬁguration

How to access the browser-based utility . . . . . . . . . . . . . . . .6

Setup > Basic Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

Language 7

Network Setup 7

Wireless > Basic Wireless Settings . . . . . . . . . . . . . . . . . . . .7

Basic Wireless Settings 8

Wireless Security 8

Wi-Fi Protected Setup 9

Wireless > Wireless Network Site Survey . . . . . . . . . . . . . . . 10

Wireless Network Site Survey 10

Wireless > WMM® . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

WMM 12

Wireless > Advanced Wireless Settings . . . . . . . . . . . . . . . . 13

Advanced Wireless 13

Administration > Management . . . . . . . . . . . . . . . . . . . . 14

Management 14

Administration > Factory Defaults . . . . . . . . . . . . . . . . . . . 15

Factory Defaults 15

Administration > Upgrade Firmware . . . . . . . . . . . . . . . . . 15

Upgrade Firmware 15

Status > Bridge . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Bridge Information 16

Local Network 16

Status > Wireless . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16

Wireless 16

Troubleshooting

WES610N/WET610N 17

Speciﬁcations

WES610N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

WET610N . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Contents

Produkspesifikasjoner

Merke:	Cisco
Kategori:	Ruter
Modell:	WES610N
Vekt:	295 g
LED-indikatorer:	LAN, Power, Status
Bruksanvisning:	Ja
Wi-Fi-standarder:	802.11a, 802.11b, 802.11g
Sertifisering:	FCC, UL/cUL, ICES-003, RSS210, CE, Wi-Fi
Inngangsspenning:	12 V
Kablingsteknologi:	10/100Base-T(X)
Nettverksstandard:	IEEE 802.11a, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n, IEEE 802.3, IEEE 802.3u
Ethernet WAN:	Ja
DHCP-server:	Ja
Vekt (imperial):	0.65 Ibs
Båndbredde:	2.4 GHz
Maksimal dataoverføringshastighet:	0.1 Gbit/s
Dimensjoner (B x D x H):	177 x 128 x 68 mm
Produktfarge:	Sort
Beste Wi-Fi-standard:	Wi-Fi 4 (802.11n)
Kabler inkludert:	LAN (RJ-45)
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	4
Driftstemperatur (T-T):	32 - 104 °F
Oppbevaringstemperaturomåde (Celsius):	-20 - 60 °C
Lagringsrelativ fuktighet:	5 - 90
Quality of Service (QoS) støtte:	Ja
tilbakestillingsknapp:	Ja
Oppgraderbar fastvare:	Ja
DC-inngangskontakt:	Ja
Modulator:	16-QAM, 64-QAM, BPSK, CCK, OFDM, QPSK
Ethernet LAN dataoverføringshastigheter:	10, 100 Mbit/s
Sikkerhetsalgoritmer:	WEP, WPA, WPA2
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 85
Nettverksgrensesnitt:	Raskt Ethernet
AC-adapter bunt:	Ja
WLAN-støttede dataoverføringshastigheter:	300 Mbit/s
Antenne forbedringsnivå (max):	1 dBi
Indikasjonslampe:	Ja
Innput-strøm:	1 A
Ethernet LAN-grensesnittype:	Raskt Ethernet
Antall antenner:	3
WLAN data overførings rate (max):	300 Mbit/s
Mottakersensitivitet:	802.11a: -72 dBm (typical) @ 54 Mbps\n802.11b: -85 dBm (typical) @ 11 Mbps\n802.11g: -73 dBm (typical) @ 54 Mbps\n802.11n (20 MHz): -75 dBm (typical) @ MCS15\n802.11n (40 MHz): -69 dBm (typical) @ MCS15
Dimensjoner (B x D x H) (imperisk):	6.97 x 5.04 x 2.68 "
