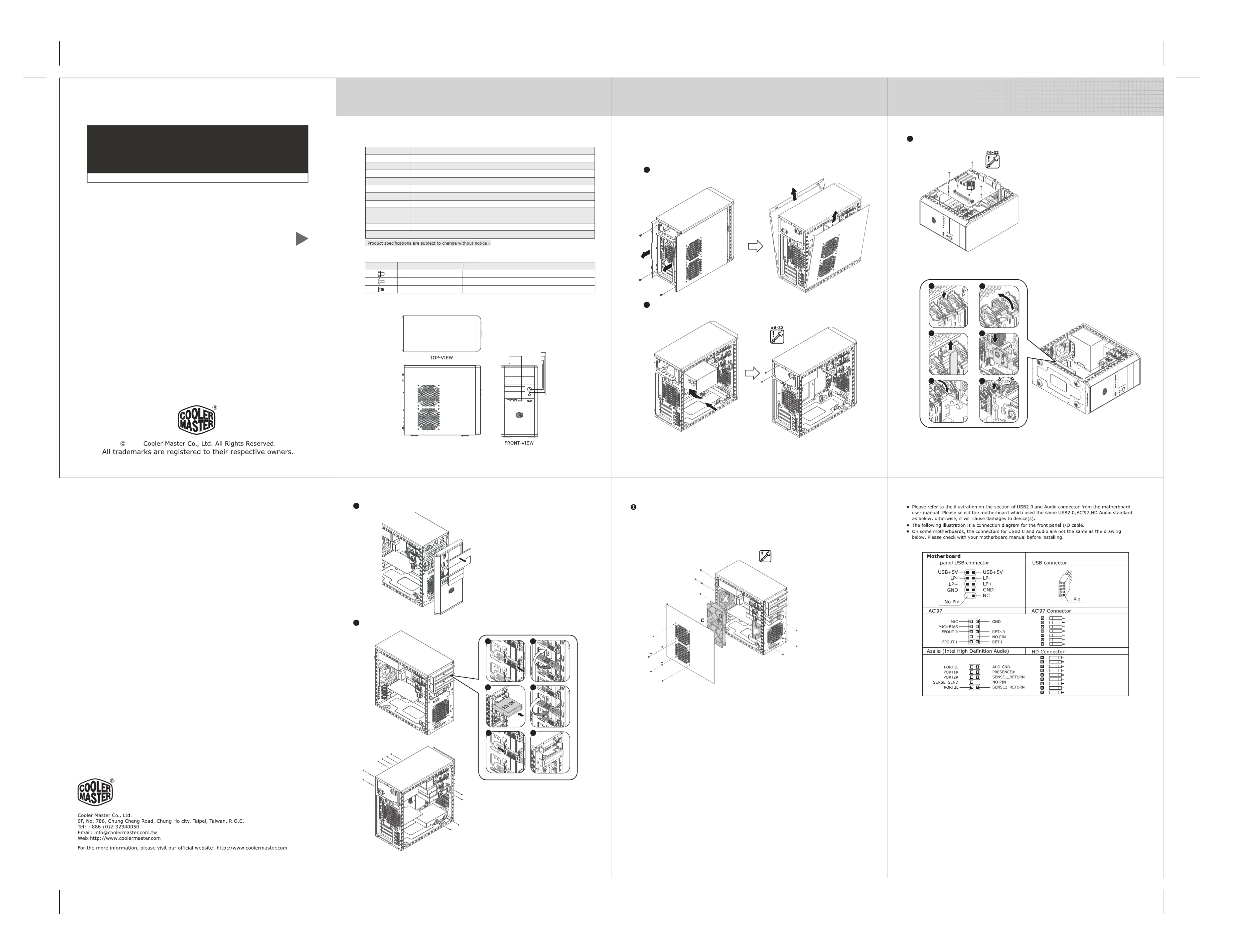

Side 1/1

Elite 341

Black

L400 x W185 x H365mm

Net Weight : 3.9kg; Gross Weight : 4.8kg

SECC

Micro-ATX

2 (Exposed)

2 (Exposed); 2 (Hidden)

Rear 120mm fan x 1

Front 120mm fan x 1 (optional); Left 120mm fan x 2 (optional)

USB 2.0 x 2, MIC x 1, SPK x 1, IEEE 1394a x 1 (optional), eSATA x 1 (optional)

Standard ATX PS2 (optional)

Available Color

Dimension

Weight

Material

M/B

5.25” Drive Bay

3.5” Drive Bay

Expansion Slot

Cooling System

I/O Panel

Power Supply

1.2 Fittings Pack

1.1 Specifications

1.3 Diagram

Figure Parts Name

#6-32 screw

M3 screw

HDD-screw installing 3.5" device

Q’ty Used for

M/B tray,power supply

CD-ROM,FDD,3.5’’ Bracket

2. Installation Guide

1. Product Overview

2.2 How to install the motherboard

2.3 How to install add-on cards

Make sure the holes on the Motherboard and chassis line up properly

before securing the screws.

2.1 How to remove the side panel and install the power supply

Remove the 4 screws and pull the side panel backward.

Place the PSU in the location as shown below.If the PSU has a single fan,

please make sure the fan faces downwards.

Note: The sequence of installation may be different, depending on the type of

case and devices used.

2.4 How to install the 3.5” and 5.25” devices 2.5 How to install or replace case fans

Remove the front panel.

How to install 5.25” and 3.5" devices.

A. Rear fan x 1 : Supports 80/90/120mm fans

B. Front fan x 1 : Supports 80/90/120mm fans (optional)

C. Left fan x 2 : Supports 80/90/120mm fans (optional)

Install/replace rear / front / left fans

3. Front Connector Installation Guide

-01- -02- -03-

-04- -05- -06-

HDD

Elite 341

Installation Guide

2008

POWER

POWER LED

RESET LED

MIC

HEADSET

USB 2.0

RESET

LEFT-VIEW

Top

Red-MIC

Red/Red-PORT1L

Yellow/Yellow-PORT1R

Brown/Brown-PORT2R

Green/Green-PORT2L

Black/Black-AUD GND

Orange-SENSE2_RETURN

White-SENSE1_RETURN

Blue-SENSE_SEND

purple-PRESENCE#

Yellow-MIC-BIAS

Brown/brown-FPOUT-R

Green/Green-FPOUT-L

Black-GND

Brown-RET-R

Green/Green-RET-L

Case Connector
