Corberó CTWD50DT Bruksanvisning

Corberó Vannkoker CTWD50DT

Les nedenfor 📖 manual på norsk for Corberó CTWD50DT (22 sider) i kategorien Vannkoker. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/22

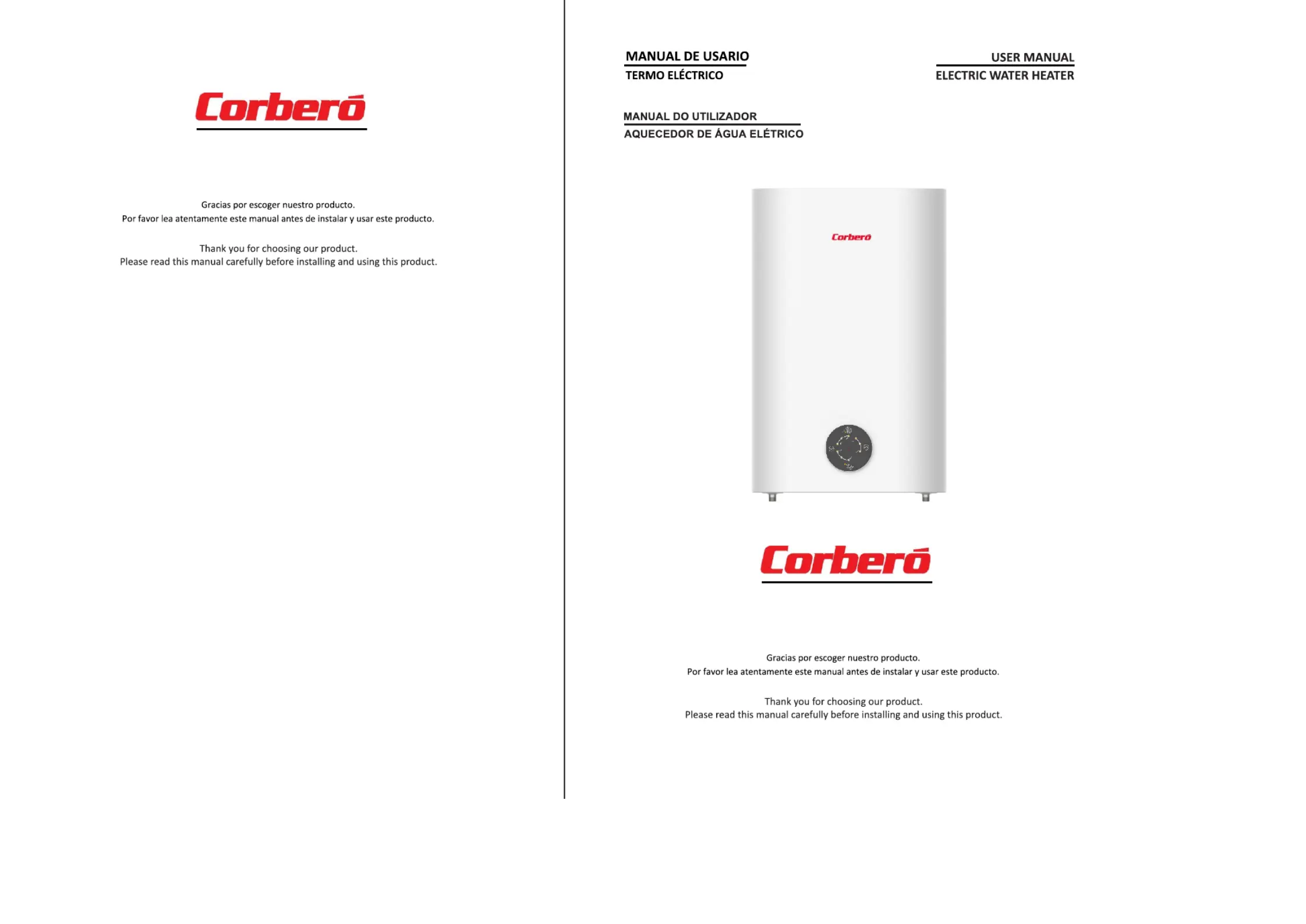

CTWD30DT / CTWD50DT / CTWD80DT / CTWD100DT

Obrigado por ter escolhido o nosso produto.

Por favor, leia atentamente este manual antes de instalar e ulizar este produto.

CTWD30DT / CTWD50DT / CTWD80DT / CTWD100DT

Obrigado por ter escolhido o nosso produto.

Por favor, leia atentamente este manual antes de instalar e ulizar este produto.

Special Reminders

Features

Product Specification

Before installing the electric water heater, check and confirm whether the grounding

of the power socket is reliable. Otherwise, the electric water heater cannot be

installed and used. Do not use extension cables.

Improper installation and use of this electric water heater may cause serious

injury and property damage.

Purpose:

The electric water heater is suitable for hot water shower and washing in families,

enterprises and institutions, service industries and other places (not drinkable).

Characteristic:

1. With temperature regulation function, the temperature can be adjusted flexibly

in the range of 40°C ~ 80°C.

2. The heating indicator light indicates the current working state, and the indicator

light displays the current water temperature.

3. Automatic control of heating and insulation ensure hot water supply at any time.

4. It has multiple protections such as overtemperature protection, water

overpressure protection (automatic pressure relief when the inner tank

pressure is too large), anti hot water backflow and so on. It has obtained

the national safety certification, and its safety is more guaranteed.

5. Durable: it adopts high-quality heat-resistant stainless steel heating element

and electrostatic dry powder enamel liner, and is equipped with liner anode

protection device to prevent rust, corrosion and scaling, with long service life.

6. The insulation layer adopts thickened polyurethane overall foaming, which

has good insulation effect, energy saving and power saving.

7. The water mixing valve is used to regulate the water outlet, which is simple

and flexible.

8. Multi purpose: it can supply water for multiple water points at the same time.

220 240V~ 50 60Hz- ， -

0.8MPa

80℃

Rated Capacity (L)

Rated Power

Rated Voltage

Rated Pressure

Maximum Set Temperature

73 9250

1800W

Produkspesifikasjoner

Merke:	Corberó
Kategori:	Vannkoker
Modell:	CTWD50DT
Vekt:	23700 g
Bredde:	585 mm
Dybde:	344 mm
Høyde:	907 mm
Årlig energiforbruk:	1311 kWh
Støynivå:	15 dB
Pakkevekt:	26200 g
Justerbar termostat:	Ja
AC-inngangsspenning:	220 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Energieffektivitetsskala:	A+ til F
Isolasjonstykkelse:	30 mm
Last inn profil:	M
Produktfarge:	Hvit
Modell/Type:	Bereder (vanntank)
Internasjonal beskyttelses (IP)-kode:	IPX4
Temperatur (maks):	80 °C
Støttede plasseringer/plasseringer som kan benyttes:	Horisontal/vertikal
Vannbeholderens kapasitet:	50 l
Maksimal styrke:	1800 W
Maks driftspress:	8 stang
Oppkoksystem:	Solo-system
Varmeapparatets plassering:	Innendørs
Vanntank materiale:	Rustfritt stål
Brennstoff type:	Elektrisk
Domestic Hot Water (DHW)-strømning:	- l/min
