Corsair Voyager Air Bruksanvisning
Corsair
ekstern hardisk
Voyager Air
Les nedenfor 📖 manual på norsk for Corsair Voyager Air (13 sider) i kategorien ekstern hardisk. Denne guiden var nyttig for 2 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/13

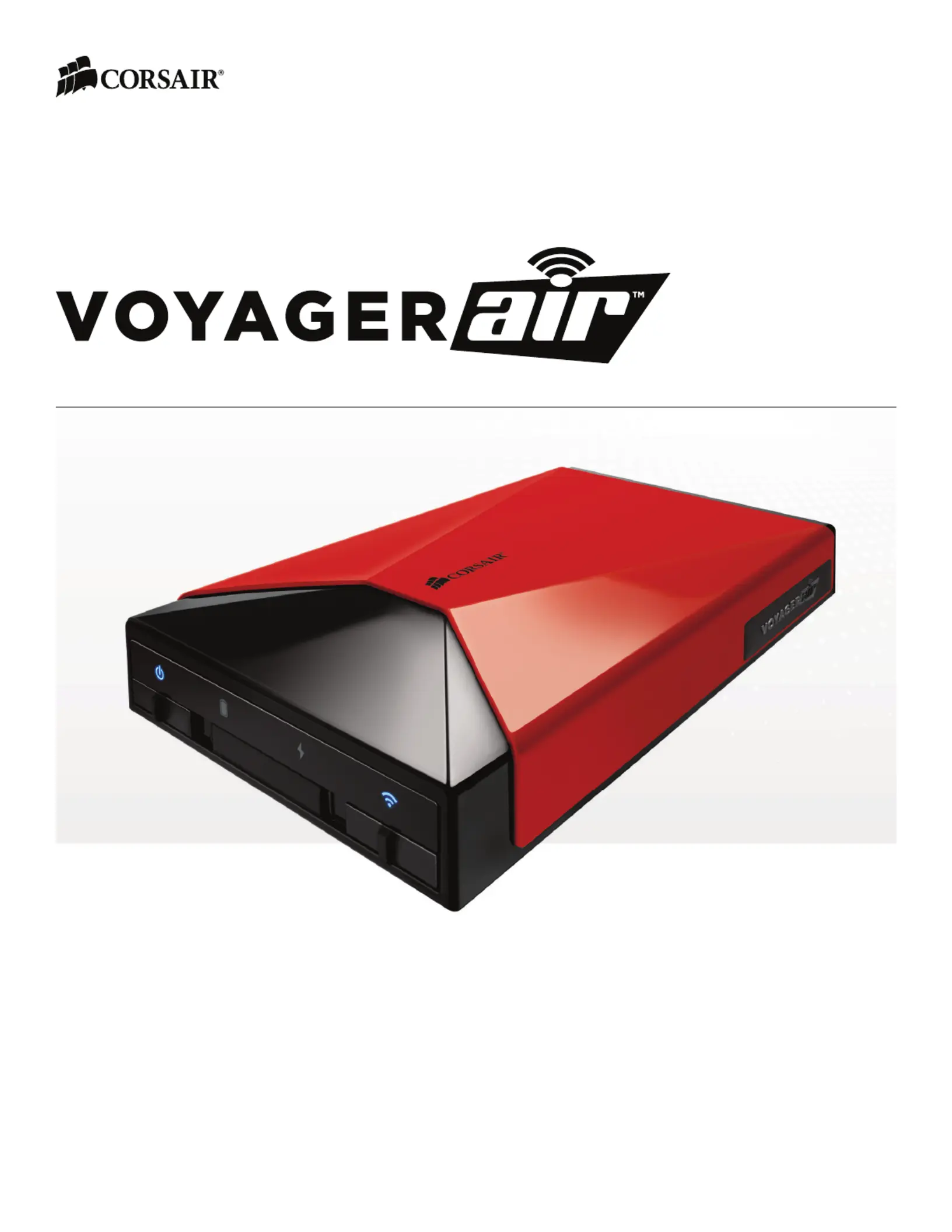

VOYAGER AIR USER MANUAL | ENGLISH | 062514
Mobile Wireless Storage With Ethernet
User Manual
1
SPECIFICATIONS
BOX CONTENTS
A. Voyager Air drive
B. Wall adapter and plug(s)
(region-specific)
C. 2A car adapter
D. USB 3.0 cable
E. DC power cable
F. Accessory bag
G. Quick Start Guide
A
D
B
HARDWARE
Drive capacity: 1TB before formatting
Drive format: NTFS
(Can also be reformatted in HFS+ for Mac OS X compatibility)
USB interface: High-speed USB 3.0
(Compatible with USB 2.0)
Ethernet: 10/100/1000 Ethernet via RJ45 connector
Wi-Fi: 2.4 GHz 802.11 b/g/n
(Maximum wireless range 90 feet/30 meters)
Battery: 6200 mAH rechargeable Lithium-Ion battery
(Not user-replaceable)
DC Power: 5V, 2A
E
C
F G
QUICK START GUIDE
GUIDE DE DÉMARRAGE RAPIDE
SCHNELLSTARTANLEITUNG
GUÍA DE INICIO RÁPIDO
GUIA DE INÍCIO RÁPIDO
КРАТКОЕ РУКОВОДСТВО ПОЛЬЗОВАТЕЛЯ
MOBILE WIRELESS STORAGE WITH ETHERNET
STOCKAGE SANS FIL MOBILE AVEC ETHERNET
MOBILES DRAHTLOSES SPEICHERN ÜBER ETHERNET
ALMACENAMIENTO INALÁMBRICO MÓVIL CON ETHERNET
ARMAZENAMENTO MÓVEL SEM FIO COM ETHERNET
ПЕРЕНОСНОЙ БЕСПРОВОДНОЙ ДИСК С СЕТЬЮ ETHERNET
PART 1 – OVERVIEW
2
The Voyager Air is an external USB drive for Windows and Mac OS X PCs.
The Voyager Air is a battery-powered wireless drive, connecting via Wi-Fi to tablets, phones, and laptops. When wirelessly
connected to the drive, you can access its contents in dierent ways: using the Corsair Voyager Air app for iOS and
Android, using a third-party file management app that supports the SAMBA protocol, or using a web browser. When
wirelessly connected to the drive with the Voyager Air app it’s easy to watch stored videos, listen to music, browse through
photos, and view documents. You can download files from the drive to your mobile device. And, you can create folders,
move/copy/delete files, and even upload photos and videos from your mobile device to the drive.
The Voyager Air is a network-attached drive, connecting via gigabit Ethernet to a home network. It can be used as shared
storage on the network. It also streams media to devices on that network using the custom app for mobile devices, Apple’s
AirPlay, and an optional media server for DLNA-compatible devices.
CONTROLS AND INDICATORS
A MULTI-USE DRIVE
To turn on the Voyager Air drive, slide the power button on the left side of the front panel toward the center of the drive
(the On position). The blue power icon will light up when the drive is on. Turn o the drive by sliding the switch in the opposite
direction (to the O position).
When the drive is on, or when recharging with the drive o, the battery icon will indicate the state of charge. The battery icon
has three dierent states:
> 75% estimated power remainingGreen:
< 5% estimated power remainingRed:
between 5% and 75% estimated power remainingAmber:
To turn on Wi-Fi for the Voyager Air, slide the Wi-Fi button on the right side of the front panel toward the center of the drive
(the On position). The blue Wi-Fi icon will light up. Note that it takes one or two minutes for the Wi-Fi server to be available for
connection after turning it on.
Note: When the Voyager Air drive is connected via USB, Wi-Fi connectivity is disabled.
RECHARGEABLE BATTERY
The included wall adapter, car adapter or USB cable may be used to recharge the drive’s internal battery. The fastest way to
recharge the battery is by using the wall adapter or car adapter. The DC power icon on the front panel of the drive lights blue
when it’s charged by this method. To charge the battery using USB, plug the included USB cable into a PC or Mac, and turn o
the drive. The battery icon will light up.
1
2
3
Produkspesifikasjoner
| Merke: | Corsair |
| Kategori: | ekstern hardisk |
| Modell: | Voyager Air |
| LED-indikatorer: | Ja |
| Bruksanvisning: | Ja |
| Wi-Fi: | Ja |
| Wi-Fi-standarder: | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Tilkoblingsteknologi: | Ledning & Trådløs |
| Garantikort: | Ja |
| Sertifisering: | FC, CE |
| USB-versjon: | 3.2 Gen 1 (3.1 Gen 1) |
| Innebygd batteri: | Ja |
| USB-kontakt: | Micro-USB B |
| Maksimal dataoverføringshastighet: | 5000 Mbit/s |
| HDD-størrelse: | - " |
| Batteriteknologi: | Lithium-Ion (Li-Ion) |
| USB-dataoverføringshastigheter: | 480,5000 Mbit/s |
| Filformatsystem: | NTFS |
| Produktfarge: | Rød |
| Beste Wi-Fi-standard: | Wi-Fi 4 (802.11n) |
| Batteriliv (maks.): | 7 timer |
| AC-adapter utgangsspenning: | 5 V |
| Kabler inkludert: | USB |
| Intern harddisk: | 1000 GB |
| Modell/Type: | Harddisk |
| Ekstern strømadapter: | Ja |
| DC-inngangskontakt: | Ja |
| Støttede Windows operativsystemer: | Ja |
| Ethernet/bredbåndsforbindelse: | Ja |
| Bæretaske: | Ja |
| AC-adapter bunt: | Ja |
| Plugg inn og spill: | Ja |
| Støttede Mac operativsystemer: | Ja |
| Støttede Linux operativsystemer: | Ja |
| HDD-hastighet: | - RPM |
| Lagringsenhetens bufferstørrelse: | - MB |
| Bus-strømforsynt: | Nei |
| USB 3.2 Gen 1 (3.1 Gen 1) antall porter: | 1 |
