The DM NUX USB over Network Wall Plates with Routing
( and ) deliver reliable, high-speed USBDM-NUX-L2-1G DM-NUX-R2-1G
signal extension and routing for USB 1.0, 1.1, and 2.0 devices throughout
a home, business, or campus for distances up to 330ft (100m).
Featuring Virtual Hub capabilities, five DM-NUX-R2-1G endpoints may
simultaneously be connected to a single DM-NUX-L2-1G endpoint.
Creating this virtual hub allows numerous USB devices to control a
single host device (such as a PC).
1
The USB signals are transported over
the local network and managed through a Crestron control system.
The DM-NUX-L2-1G and DM-NUX-R2-1G are functionally similar. For
simplicity within this guide, the term "USB endpoint" is used except
where noted. The USB endpoints are also compatible with the USB over
Ethernet Extenders with Routing ( and ).DM-NUX-L2 DM-NUX-R2
In
In
In
InIn the
the
the
thethe Box
Box
Box
BoxBox
1 DM-NUX-L2-1G
1
or DM-NUX-R2-1G
1
Additional
Additional
Additional
AdditionalAdditional Items
Items
Items
ItemsItems
2 Screw, 6-32 x 1/4in., Pan Head, SEMS (2007218)
1 Connector, 2-Pin (2003574)
1 Ferrite Bead, Cable Mount (2054945)
1. Refer to the and product pages for color variations.DM-NUX-L2-1G DM-NUX-R2-1G
1
1
1
11
DM-NUX-L2-1G
DM-NUX-L2-1G
DM-NUX-L2-1G
DM-NUX-L2-1GDM-NUX-L2-1G and
and
and
andand DM-NUX-R2-1G
DM-NUX-R2-1G
DM-NUX-R2-1G
DM-NUX-R2-1GDM-NUX-R2-1G
QuickStart
DM
DM
DM
DMDM NUX
NUX
NUX
NUXNUX USB
USB
USB
USBUSB over
over
over
overover Network
Network
Network
NetworkNetwork Wall
Wall
Wall
WallWall Plates
Plates
Plates
PlatesPlates with
with
with
withwith Routing
Routing
Routing
RoutingRouting
Install
Install
Install
InstallInstall the
the
the
thethe USB
USB
USB
USBUSB Endpoint
Endpoint
Endpoint
EndpointEndpoint
The USB endpoint uses Power over Ethernet (PoE) and mounts in a
North American, unobstructed, 1-gang electrical box (not included). A
minimum mounting depth of 2in. (51mm) is required. The
DM-NUX-L2-1G also receives power from the USB host port.
The DM-NUX-L2-1G and DM-NUX-R2-1G may be used without a control
system or DigitalMedia™ system to offer point-to-point USB extension
over a LAN or a dedicated CAT5e (or higher) cable.
NOTE:
NOTE:
NOTE:
NOTE:NOTE: A ferrite bead is provided to reduce or prevent EMI
(electromagnetic interference). When using a power source other
than PoE, Crestron recommends installing this ferrite bead on the
power supply cable close to the device.
Connect
Connect
Connect
ConnectConnect the
the
the
thethe USB
USB
USB
USBUSB Endpoints
Endpoints
Endpoints
EndpointsEndpoints
Connect the DM-NUX-L2-1G and DM-NUX-R2-1G.
NOTE:
NOTE:
NOTE:
NOTE:NOTE: Signal routing is not supported when the DM-NUX-L2-1G and
DM-NUX-R2-1G are used to provide point-to-point USB extension or
when PoE is not being used. In addition, a separate 24V 0.75A power
supply is needed.
1. Feed the CAT5e (or better) shielded twisted-pair (STP) cable through
the opening on the top of the electrical box.
NOTES:
NOTES:
NOTES:
NOTES:NOTES:
l
To comply with the European Directive (CE), Crestron
recommends using high-quality, solid core CAT5e (or better)
shielded twisted pair (STP) cable.
l
The CAT5e (or better) cable must have a straight-through
conductor configuration with no crossovers and must be
terminated with 8-conductor RJ45 connectors at both ends.
2. Using CAT5e (or better) cable, connect the LINK port on each
endpoint to an Ethernet network, the LAN port of a DigitalMedia
transmitter or receiver, or to the LINK port of another DM NUX
endpoint. The maximum cable distance is 330ft (100m).
CAUTION:
CAUTION:
CAUTION:
CAUTION:CAUTION: Do not connect the DM-NUX-L2-1G or DM-NUX-R2-1G
to a USB-EXT extender. The USB-EXT extenders are intended for
use as point-to-point USB extenders and must not be connected
to an Ethernet LAN or any other network device via the Link port.
3. Using a USB 2.0A to B cable (not included), connect the USB B end
to the DM-NUX-L2-1G host port ( ), and connect the USB A end
to a USB Type A port on the host device (USB 1.1 or 2.0 compatible).
2
2
2
22
DM-NUX-L2-1G
DM-NUX-L2-1G
DM-NUX-L2-1G
DM-NUX-L2-1GDM-NUX-L2-1G and
and
and
andand DM-NUX-R2-1G
DM-NUX-R2-1G
DM-NUX-R2-1G
DM-NUX-R2-1GDM-NUX-R2-1G
QuickStart
DM
DM
DM
DMDM NUX
NUX
NUX
NUXNUX USB
USB
USB
USBUSB over
over
over
overover Network
Network
Network
NetworkNetwork Wall
Wall
Wall
WallWall Plates
Plates
Plates
PlatesPlates with
with
with
withwith Routing
Routing
Routing
RoutingRouting

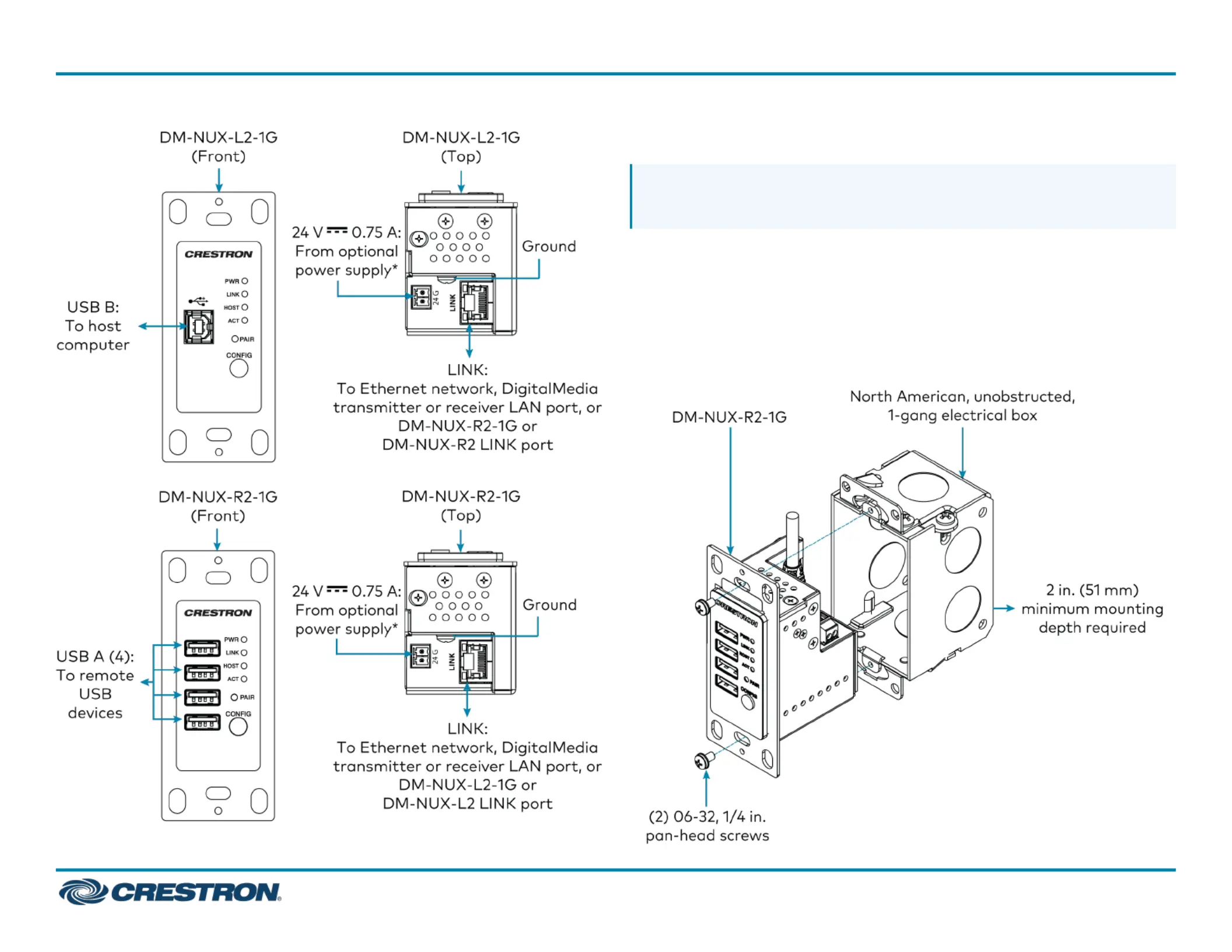

*Connection to a 24VDC power supply is not required when PoE is used to power the USB
extender or when the DM-NUX-L2-1G is connected to the Host device.
NOTE:
NOTE:
NOTE:
NOTE:NOTE: The CONFIG jack on the USB endpoint is reserved for factory
use only.
Mount
Mount
Mount
MountMount the
the
the
thethe USB
USB
USB
USBUSB Endpoint
Endpoint
Endpoint
EndpointEndpoint
1. Place the USB endpoint into the electrical box.
2. Use two included 6-32 x 1/4in. pan-head mounting screws to attach
the USB endpoint to the electrical box.
3. Attach a faceplate (not included) to the USB endpoint.
3
3
3
33
DM-NUX-L2-1G
DM-NUX-L2-1G
DM-NUX-L2-1G
DM-NUX-L2-1GDM-NUX-L2-1G and
and
and
andand DM-NUX-R2-1G
DM-NUX-R2-1G
DM-NUX-R2-1G
DM-NUX-R2-1GDM-NUX-R2-1G
QuickStart
DM
DM
DM
DMDM NUX
NUX
NUX
NUXNUX USB
USB
USB
USBUSB over
over
over
overover Network
Network
Network
NetworkNetwork Wall
Wall
Wall
WallWall Plates
Plates
Plates
PlatesPlates with
with
with
withwith Routing
Routing
Routing
RoutingRouting
