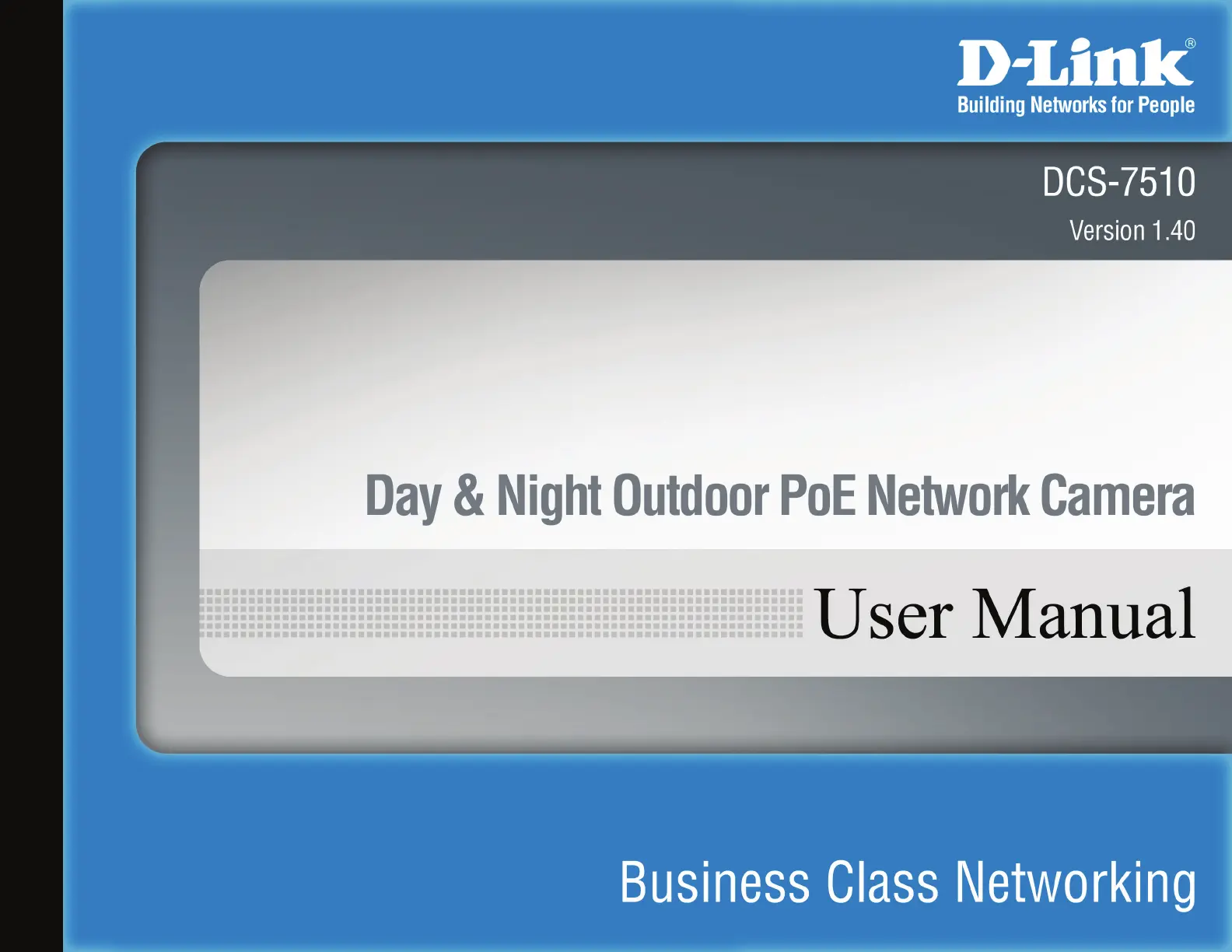

2D-Link DCS-7510 User Manual

Table of Contents

Product Overview ........................................................ 3

Features .................................................................. 4

Package Contents ...................................................5

System Requirements ............................................. 5

Hardware Overview (Front) ..................................... 6

Hardware Overview (Back) ...................................... 7

Hardware Overview (Connectors) ........................... 8

Hardware Installation ...............................................9

Software Installation ..............................................13

Conguration ............................................................. 24

Using the Setup Wizard .........................................24

Using the Conguration Menu ............................... 28

Web-based Conguration Utility ............................ 29

Live Video ..............................................................30

Camera ............................................................30

Setup .....................................................................32

Setup Wizard ...................................................32

Internet Connection Setup Wizard ................... 32

Motion Detection Setup Wizard .......................36

Network Setup .................................................39

Dynamic DNS ..................................................41

Image Setup .................................................... 42

Audio and Video .............................................. 43

Motion Detection .............................................. 45

Time and Date .................................................46

Recording ........................................................ 47

Creating a Samba network drive for saving video ..49

Snapshot ..........................................................50

Digital Output ...................................................52

RS-485 .............................................................53

Maintenance .......................................................... 54

Admin ...............................................................54

System ............................................................. 56

Firmware Upgrade ...........................................57

Status .................................................................... 58

Device Info ....................................................... 58

Logs .................................................................59

Help .......................................................................60

Troubleshooting ........................................................ 61

DI/DO ........................................................................... 63

Networking Basics .................................................... 64

Check your IP address ..........................................64

Assigning a Static IP address ................................ 65

Technical Specications........................................... 66

Table of Contents

3D-Link DCS-7510 User Manual

Section 1 - Product Overview

Product Overview

The DCS-7510 is a day & night outdoor PoE network camera with built-in infrared LEDs. Equipped with a high-

resolution CCD image sensor, this camera provides you with excellent image quality and level of detail. The

DCS-7510 is equipped with a varifocal 9~22mm lens that lets you manually change the focus length on desired objects.

The focus and zoom controls are located outside on the camera case for easy adjustments. A built-in Infrared Cut

Removable (ICR) lter in the DCS-7510 allows the camera to capture images in both good light and low light conditions

by adding or removing the infrared cut lter. This camera also has an auto-iris that automatically adjusts the exposure

according to the light conditions for optimum picture quality. The DCS-7510 can detect moving objects in total darkness,

for distances of up to 50 meters. Embedded with a powerful SoC (System-on-Chip), the camera provides high-quality,

real-time video compression in MPEG-4 and motion JPEG formats. These elements make the DCS-7510 an ideal

solution for 24-hour surveillance.

The DCS-7510 is housed in an IP66 certied weatherproof casing, which protects the camera against rain and dust.

The wire-in bracket design tightly assembles and protects the cables not only from outdoor wear and tear, but also

from criminal acts such as cable cuts. You can also connect the camera to I/O sensors such as IR sensors, switches

and alarm relays, and set up the system to send automated e-mail notications for unusual events.

A live feed from the camera can be accessed on a 3G mobile network by using a compatible mobile phone or PDA with

a 3G video player. The bundled D-ViewCam software is included to manage up to 32 cameras simultaneously, send

automated e-mail alerts, and record video to your hard drive when motion is detected or according to a set schedule.

The software allows you to manage and record videos to a Network Attached Storage (NAS) or a Network Video

Recorder (NVR) device.

Note: Use of audio or video equipment for recording the image or voice of a person without their knowledge and

consent is prohibited in certain states or jurisdictions. Nothing herein represents a warranty or representation that

the D-Link product provided herein is suitable for the end-user’s intended use under the applicable laws of his or her

state. D-Link disclaims any liability whatsoever for any end-user use of the D-Link product, which fails to comply with

applicable state, local, or federal laws.

Produkspesifikasjoner

Merke:	D-Link
Kategori:	Sikkerhetskamera
Modell:	DCS-7510
Vekt:	1720 g
Maksimal oppløsning:	640 x 480 piksler
Strømkildetype:	PoE
Sertifisering:	FCC Class A, \nIC, \nCE, \nC-Tick.
Internminne:	64 MB
Kompatible operativsystemer:	Microsoft Windows XP, Vista, Mac OS X10.3
Støttede nettverksprotokoller:	IPv4, ARP, TCP/IP, RTSP, RTP, RTCP, HTTP, SMTP, FTP, NTP, DNS, DHCP, UPnP, DDNS, PPPoE, Samba Client, 3GPP
Flash-minne:	8 MB
Dimensjoner (B x D x H):	8.79 x 240 x 109.1 mm
Sensortype:	CCD
Brennviddeområde:	9 - 22 mm
Strømforbruk (vanlig bruk):	12 W
Antall ethernets-/bredbåndstilkoblinger (RJ-45):	1
Driftstemperatur (T-T):	0 - 40 °C
Oppbevaringstemperaturomåde (Celsius):	-20 - 70 °C
Lukkerhastighet:	1/50 - 1/110000 s
nattsyn:	Ja
CCD-sensorstørrelse:	1/3 "
tilbakestillingsknapp:	Ja
I/O-porter:	1x RS-485
DC-inngangskontakt:	Ja
Samsvar med industristandarder:	IEEE 802.3/802.3u, 802.3x, 802.3af
Minimumsbelysning:	1 lx
Krav til strømforsyning:	100-240VAC, 50/60Hz, 12VDC, 1.25A
Relativ luftfuktighet under drift (H-H):	20 - 80
Strøm over Ethernet (PoE):	Ja
