DataVideo DAC-9P Bruksanvisning

DataVideo lyd / video konverterer DAC-9P

Les nedenfor 📖 manual på norsk for DataVideo DAC-9P (28 sider) i kategorien lyd / video konverterer. Denne guiden var nyttig for 3 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere

Last ned PDF

Side 1/28

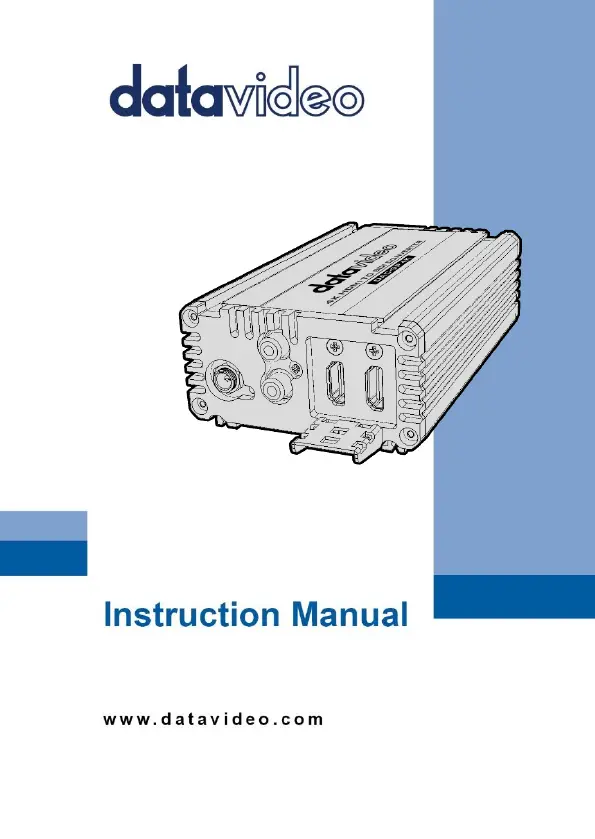

DAC-9P 4K

4K HDMI

轉

SDI

轉換器

DAC-9P 4K

4K HDMI to SDI Converter

Table of Contents

FCC COMPLIANCE STATEMENT ................................................ 4

WARNINGS AND PRECAUTIONS .............................................. 4

WARRANTY ............................................................................. 6

STANDARD WARRANTY ................................................................ 6

THREE YEAR WARRANTY .............................................................. 6

DISPOSAL ................................................................................ 7

1. INTRODUCTION ................................................................... 8

2. CONNECTIONS AND CONTROLS ........................................... 9

2.1FRONT PANEL ......................................................................... 9

2.2 REAR PANEL ........................................................................ 11

3. FIRMWARE UPDATE .......................................................... 13

3.1 SYSTEM CONNECTION ........................................................... 14

3.2 CHECKING THE FIRMWARE VERSION ......................................... 15

3.3 UPDATING THE FIRMWARE ..................................................... 17

4. DIMENSIONS ..................................................................... 22

5. SPECIFICATIONS ................................................................ 23

SERVICE AND SUPPORT ................................................ 28

Disclaimer of Product & Services

The information offered in this instruction manual is intended as a guide only. At all times, Datavideo

Technologies will try to give correct, complete and suitable information. However, Datavideo Technologies

cannot exclude that some information in this manual, from time to time, may not be correct or may be

incomplete. This manual may contain typing errors, omissions or incorrect information. Datavideo

Technologies always recommend that you double check the information in this document for accuracy

before making any purchase decision or using the product. Datavideo Technologies is not responsible for

any omissions or errors, or for any subsequent loss or damage caused by using the information contained

within this manual. Further advice on the content of this manual or on the product can be obtained by

contacting your local Datavideo Office or dealer.

Produkspesifikasjoner

Merke:	DataVideo
Kategori:	lyd / video konverterer
Modell:	DAC-9P
Vekt:	330 g
Bredde:	145 mm
Dybde:	85 mm
Høyde:	30 mm
Sertifisering:	CE, FCC
Maksimal videooppløsning:	1920 x 1080 piksler
Vertsgrensesnitt:	HDMI
Driftsspenning:	12 V
Utgangsgrensesnitt:	HD-SDI
Produktfarge:	Black, Grey
Analogt signalformatsystem:	NTSC, PAL
Strømforbruk (vanlig bruk):	5 W
Støttede videofunksjoner:	480i, 576i, 720p, 1080i, 1080p
Driftstemperatur (T-T):	0 - 40 °C
Video ut:	2x 3G/HD/SD-SD
Relativ luftfuktighet under drift (H-H):	10 - 90
Videoopptaksgrensesnitt:	1x HDMI
AC-adapter bunt:	Ja
Antall:	1
Driftsstrøm:	0.5 A
