DataVideo PTC-150W Bruksanvisning
DataVideo
Sikkerhetskamera
PTC-150W
Les nedenfor 📖 manual på norsk for DataVideo PTC-150W (48 sider) i kategorien Sikkerhetskamera. Denne guiden var nyttig for 3 personer og ble vurdert med 4.5 stjerner i gjennomsnitt av 2 brukere
Side 1/48

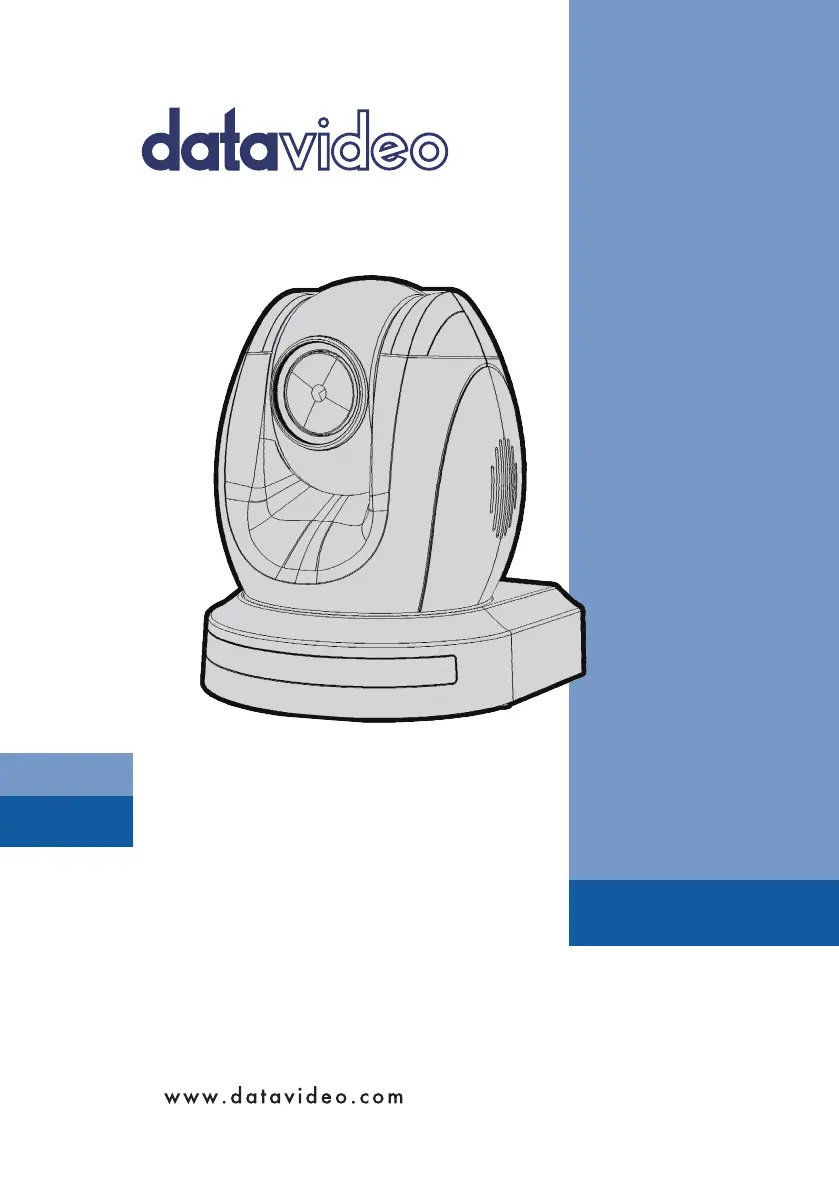

PTC-150/
PTC-150W
HD/SD-SDI PTZ
CAMERA
Instruction Manual
2
Table of Contents
FCC COMPLIANCE STATEMENT ...................................................................... 4
WARNINGS AND PRECAUTIONS .................................................................... 4
WARRANTY ................................................................................................... 6
STANDARD WARRANTY ........................................................................................ 6
THREE YEAR WARRANTY ...................................................................................... 6
DISPOSAL ...................................................................................................... 7
1. PRODUCT OVERVIEW ................................................................................ 8
2. FEATURES .................................................................................................. 9
3. LOCATION AND FUNCTION OF PARTS ...................................................... 10
4. SYSTEM DIAGRAM ................................................................................... 13
5. REMOTE CONTROL AND ON-SCREEN MENU ............................................ 14
5.1 REMOTE CONTROL FUNCTIONS ............................................................... 14
5.2 ON-SCREEN MENU .............................................................................. 17
6. INSTRUCTION FOR INSTALLATION ........................................................... 26
STEP 1 – DIP SWITCH SETTING ............................................................................ 26
STEP 2 – ONE END OF RETAINING WIRE ................................................................ 26
STEP 3 – CEILING BRACKET (B) ............................................................................ 26
STEP 4 – CEILING BRACKET (A) AND CAMERA ......................................................... 27
STEP 5 – MOUNT CAMERA TO CEILING ................................................................. 29
STEP 6 – SCREW TO FIX CAMERA ......................................................................... 30
STEP 7 – CABLE CONNECTION ............................................................................. 30
7. DIP SWITCH SETTINGS ............................................................................. 31
7.1 DIP SWITCH SW1 ............................................................................... 31
7.2 DIP SWITCH SW2 (IRID) ...................................................................... 32
8. NETWORK CONFIGURATION .................................................................... 33
9. RMC-180 PTZ CAMERA CONTROL UNIT.................................................... 38
DIRECT CONNECTION TO CAMERA ........................................................................ 38
3
10. FIRMWARE UPDATE .............................................................................. 39
11. FREQUENTLY-ASKED QUESTIONS ........................................................... 40
12. DIMENSIONS ......................................................................................... 41
13. SPECIFICATIONS ..................................................................................... 43
14. SERVICE & SUPPORT .............................................................................. 48
Disclaimer of Product and Services
The information offered in this instruction manual is intended as a guide only.
At all times, Datavideo Technologies will try to give correct, complete and
suitable information. However, Datavideo Technologies cannot exclude that
some information in this manual, from time to time, may not be correct or
may be incomplete. This manual may contain typing errors, omissions or
incorrect information. Datavideo Technologies always recommend that you
double check the information in this document for accuracy before making
any purchase decision or using the product. Datavideo Technologies is not
responsible for any omissions or errors, or for any subsequent loss or damage
caused by using the information contained within this manual. Further advice
on the content of this manual or on the product can be obtained by contacting
your local Datavideo Office or dealer.
