Side 1/4

Single Channel Full Frame 4:2:2 Time Base

Corrector

TBC-100 is specially designed for video processing with a PC. Most video camcorders do not produce stable

synchronized signals. This can cause

poor video image quality when capturing video to your PC. The TBC-100 corrects this problem by replacing all sync

signals from the video source

with new signals. By using a digital full frame synchronizer, the TBC-100 insures that your video captures are clear and

clean.

• Frame synchronization with full frame memory

• Re-generates all synchronization signals to stabilize

the video

• Compatible with all formats (VHS, S-VHS, VHS-C, S-

VHS-C, Video 8 & Hi8)

• Auto-detects NTSC or PAL format

• Wide bandwidth- 4.5 MHz in Y/C and 3.5 MHz in

composite

• 8-bit video resolution – 4:2:2 sampling rate

• DP less than 1 degree – DG less than 2%

• Low noise – S/N ratio >50dB

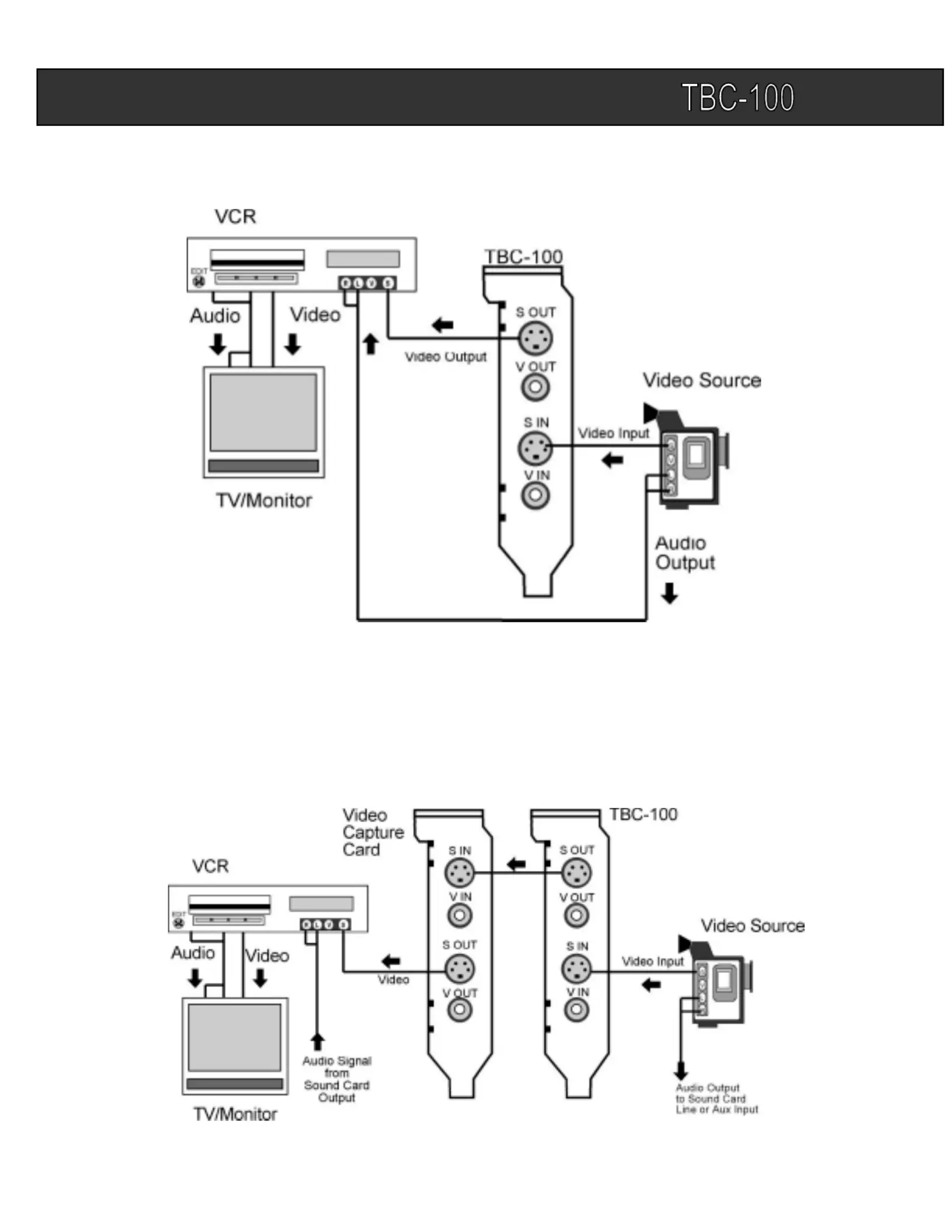

Typical Installation

Installation with a Capture Card

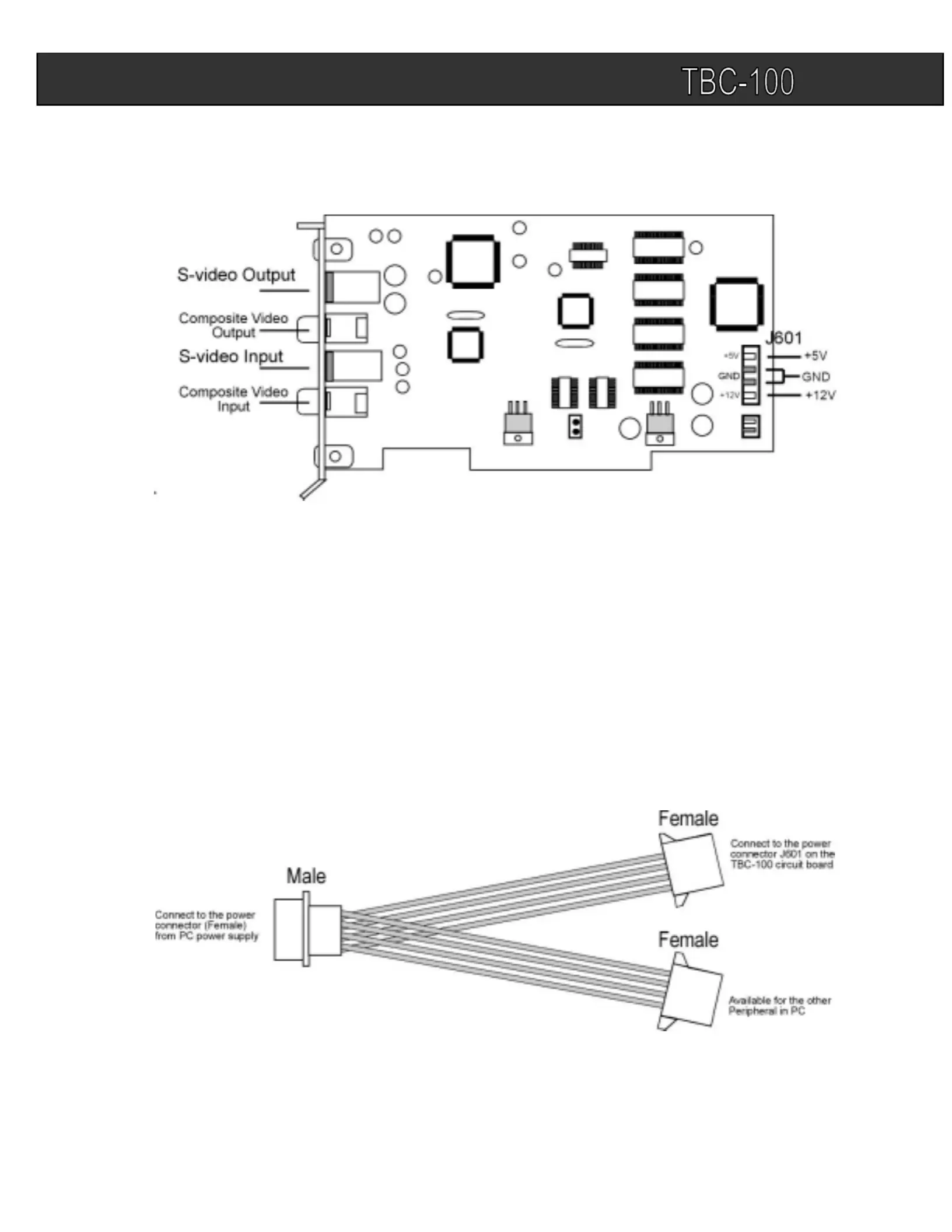

Connection

1. If you connect both S-video and composite video sources to the TBC-100, the card

will automatically default to S-video. For composite video, you can not plug in an

S-video input.

2. DC power input connector J601, use the enclosed “Pigtail” connector to connect the

power source from PC power supply to the TBC-100.

Pigtail Extension Connector (included)

3. TBC-100 apply both S-video and Composite video outputs for either S-video or

Composite video input.

Produkspesifikasjoner

Merke:	DataVideo
Kategori:	Ikke kategorisert
Modell:	TBC-100
Antall S-Video-innganger:	1
Videoopptaksgrensesnitt:	PCI
Intern:	Ja
Komposittvideo inn/sammensatt video inn:	1
