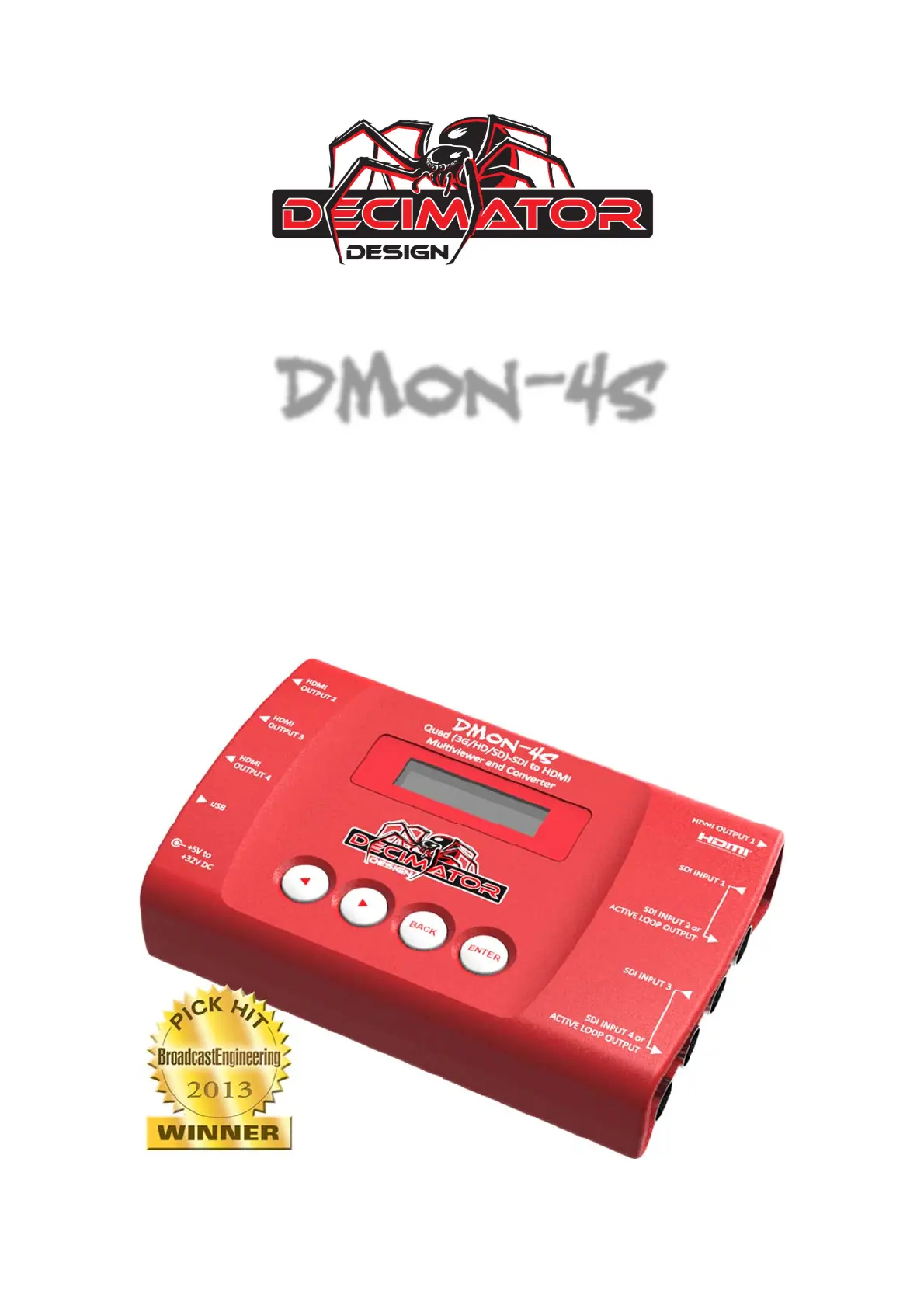

DMON-4S
Quadξ˜ƒ(3G/HD/SD)‐SDIξ˜ƒtoξ˜ƒHDMIξ˜ƒ
Multi‐Viewerξ˜ƒandξ˜ƒConverterξ˜ƒ
ξ˜ƒ
Operatingξ˜ƒManualξ˜ƒforξ˜ƒFirmwareξ˜ƒVersionξ˜ƒ2.0ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
DMON‐4Sξ˜ƒOPERATINGξ˜ƒMANUALξ˜ƒVERSIONξ˜ƒ2.0ξ˜ƒ
Copyrightξ˜ƒΒ©ξ˜ƒ2015ξ˜ƒDecimatorξ˜ƒDesignξ˜ƒPtyξ˜ƒLtd,ξ˜ƒSydney,ξ˜ƒAustraliaξ˜ƒ
E&OE
1
Introductionξ˜ƒ
ξ˜ƒ
Thankξ˜ƒyouξ˜ƒforξ˜ƒpurchasingξ˜ƒtheξ˜ƒDMON‐4Sξ˜ƒQuadξ˜ƒ(3G/HD/SD)‐SDIξ˜ƒtoξ˜ƒHDMIξ˜ƒMulti‐Viewerξ˜ƒandξ˜ƒConverter.ξ˜ƒ
ξ˜ƒ
Theξ˜ƒDMON‐4Sξ˜ƒisξ˜ƒaξ˜ƒtrulyξ˜ƒportableξ˜ƒconverter,ξ˜ƒwhichξ˜ƒincorporatesξ˜ƒourξ˜ƒnewξ˜ƒeasyξ˜ƒtoξ˜ƒuseξ˜ƒLCDξ˜ƒandξ˜ƒbuttonξ˜ƒcontrolξ˜ƒ
system.ξ˜ƒξ˜ƒTheξ˜ƒDMON‐4Sξ˜ƒfeaturesξ˜ƒ4ξ˜ƒindependentξ˜ƒminiξ˜ƒHDMIξ˜ƒoutputsξ˜ƒthatξ˜ƒcanξ˜ƒeachξ˜ƒoutputξ˜ƒany
ξ˜ƒofξ˜ƒtheξ˜ƒfourξ˜ƒ
(3G/HD/SD)‐SDIξ˜ƒinputsξ˜ƒorξ˜ƒaξ˜ƒMulti‐Viewξ˜ƒofξ˜ƒallξ˜ƒthem.ξ˜ƒ
Forξ˜ƒexampleξ˜ƒyouξ˜ƒcouldξ˜ƒuseξ˜ƒtheξ˜ƒunitξ˜ƒtoξ˜ƒhave:ξ˜ƒ
ο‚· 4ξ˜ƒindependentξ˜ƒSDIξ˜ƒtoξ˜ƒHDMIξ˜ƒconvertersξ˜ƒ
ο‚· 3ξ˜ƒindependentξ˜ƒSDIξ˜ƒtoξ˜ƒHDMIξ˜ƒconvertersξ˜ƒwithξ˜ƒaξ˜ƒMulti‐Viewξ˜ƒoutputξ˜ƒ
ο‚· 2ξ˜ƒindependentξ˜ƒSDIξ˜ƒtoξ˜ƒ2ξ˜ƒxξ˜ƒHDMIξ˜ƒconvertersξ˜ƒ
withξ˜ƒloopξ˜ƒthroughξ˜ƒ
ο‚· Aξ˜ƒsingleξ˜ƒSDIξ˜ƒorξ˜ƒMulti‐Viewξ˜ƒtoξ˜ƒ4ξ˜ƒxξ˜ƒHDMIξ˜ƒoutputsξ˜ƒ
ξ˜ƒ
Theξ˜ƒDMON‐4Sξ˜ƒalsoξ˜ƒfeaturesξ˜ƒtheξ˜ƒfollowing:ξ˜ƒ
ο‚· Lowξ˜ƒcostξ˜ƒminiatureξ˜ƒ(3G/HD/SD)‐SDIξ˜ƒ1ξ˜ƒtoξ˜ƒ4ξ˜ƒchannelξ˜ƒMulti‐Viewerξ˜ƒorξ˜ƒ4ξ˜ƒtoξ˜ƒ1ξ˜ƒinputξ˜ƒmultiplexerξ˜ƒ
ο‚· 4ξ˜ƒxξ˜ƒ(3G/HD/SD)‐SDIξ˜ƒinputsξ˜ƒwithξ˜ƒautoξ˜ƒdetectionξ˜ƒ(26ξ˜ƒ
Formatsξ˜ƒsupportedξ˜ƒinξ˜ƒtotal)ξ˜ƒ
ο‚· Supportsξ˜ƒbothξ˜ƒ3Gξ˜ƒlevelξ˜ƒAξ˜ƒandξ˜ƒBξ˜ƒonξ˜ƒtheξ˜ƒinputsξ˜ƒ
ο‚· Inputsξ˜ƒ2ξ˜ƒandξ˜ƒ4ξ˜ƒcanξ˜ƒbeξ˜ƒindividuallyξ˜ƒchangedξ˜ƒtoξ˜ƒoutputξ˜ƒactiveξ˜ƒloopξ˜ƒcopiesξ˜ƒofξ˜ƒinputsξ˜ƒ1ξ˜ƒandξ˜ƒ2ξ˜ƒrespectivelyξ˜ƒ
ο‚· Customξ˜ƒLayoutsξ˜ƒwithξ˜ƒvariousξ˜ƒstandardξ˜ƒlayoutsξ˜ƒ
ο‚· 16ξ˜ƒCharacterξ˜ƒUMDξ˜ƒoverlayξ˜ƒperξ˜ƒwindowξ˜ƒwithξ˜ƒindividual
ξ˜ƒenables,ξ˜ƒcustomξ˜ƒpositioningξ˜ƒandξ˜ƒsizeξ˜ƒ
ο‚· Audioξ˜ƒIDξ˜ƒoverlayξ˜ƒ
ο‚· Eachξ˜ƒwindowξ˜ƒinξ˜ƒtheξ˜ƒMulti‐Viewerξ˜ƒcanξ˜ƒbeξ˜ƒhorizontallyξ˜ƒand/orξ˜ƒverticallyξ˜ƒflippedξ˜ƒ
ο‚· Loadξ˜ƒandξ˜ƒrestoreξ˜ƒCustomξ˜ƒLayoutsξ˜ƒ
ο‚· Fastξ˜ƒswitchingξ˜ƒbetweenξ˜ƒinputsξ˜ƒusingξ˜ƒFull‐Screenξ˜ƒscalingξ˜ƒ
ο‚· Selectableξ˜ƒoutputξ˜ƒformatξ˜ƒinξ˜ƒbothξ˜ƒFull‐Screenξ˜ƒandξ˜ƒMulti‐Viewerξ˜ƒmodeξ˜ƒ
ο‚·
Lowξ˜ƒlatencyξ˜ƒbufferingξ˜ƒforξ˜ƒeachξ˜ƒinputξ˜ƒallowingξ˜ƒnon‐synchronousξ˜ƒinputsξ˜ƒ
ο‚· Eachξ˜ƒwindowξ˜ƒisξ˜ƒindependentξ˜ƒofξ˜ƒtheξ˜ƒothers,ξ˜ƒallowingξ˜ƒanyξ˜ƒ3G/HD/SDξ˜ƒformatξ˜ƒofξ˜ƒanyξ˜ƒframeξ˜ƒrateξ˜ƒtoξ˜ƒbeξ˜ƒ
displayedξ˜ƒsimultaneouslyξ˜ƒ
ο‚· Variableξ˜ƒaspectξ˜ƒratiosξ˜ƒperξ˜ƒwindowξ˜ƒ
ο‚· Multi‐Viewerξ˜ƒmodeξ˜ƒallowsξ˜ƒselectionξ˜ƒofξ˜ƒaudioξ˜ƒfromξ˜ƒanyξ˜ƒwindowξ˜ƒ
ξ˜ƒ
Thisξ˜ƒunitξ˜ƒalsoξ˜ƒ
includes:ξ˜ƒ
ο‚· USBξ˜ƒportξ˜ƒforξ˜ƒcontrolξ˜ƒandξ˜ƒfirmwareξ˜ƒupdatesξ˜ƒ
ο‚· Heavyξ˜ƒdutyξ˜ƒmetalξ˜ƒboxξ˜ƒ
ο‚· Newξ˜ƒMetalξ˜ƒThreadξ˜ƒLockingξ˜ƒDCξ˜ƒPowerξ˜ƒSocketξ˜ƒ
ο‚· Powerξ˜ƒSupply,ξ˜ƒHDMIξ˜ƒCableξ˜ƒandξ˜ƒUSBξ˜ƒCableξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
ξ˜ƒ
DMON‐4Sξ˜ƒOPERATINGξ˜ƒMANUALξ˜ƒVERSIONξ˜ƒ2.0ξ˜ƒ
Copyrightξ˜ƒΒ©ξ˜ƒ2015ξ˜ƒDecimatorξ˜ƒDesignξ˜ƒPtyξ˜ƒLtd,ξ˜ƒSydney,ξ˜ƒAustraliaξ˜ƒ
E&OE
2
Mainξ˜ƒMenusξ˜ƒ
Uponξ˜ƒpowerξ˜ƒupξ˜ƒtheξ˜ƒunitξ˜ƒwillξ˜ƒstartξ˜ƒinξ˜ƒtheξ˜ƒMainξ˜ƒMenuξ˜ƒpointingξ˜ƒtoξ˜ƒInputξ˜ƒStatus.ξ˜ƒ
Theξ˜ƒMainξ˜ƒMenusξ˜ƒare:ξ˜ƒ
1. Inputξ˜ƒStatusξ˜ƒ
2. Controlξ˜ƒ
3. Multi‐Viewξ˜ƒ
4. M.V.ξ˜ƒRoutingξ˜ƒ
5. M.V.ξ˜ƒColoursξ˜ƒ
6. M.V.ξ˜ƒUMDsξ˜ƒ
7. M.V.ξ˜ƒFlipξ˜ƒ
8. Setupξ˜ƒ
Pressξ˜ƒtheξ˜ƒ<ξ˜ƒandξ˜ƒ>ξ˜ƒbuttonsξ˜ƒtoξ˜ƒmoveξ˜ƒleftξ˜ƒor
ξ˜ƒrightξ˜ƒthroughξ˜ƒtheξ˜ƒmenus.ξ˜ƒ
Toξ˜ƒenterξ˜ƒintoξ˜ƒaξ˜ƒmenuξ˜ƒpressξ˜ƒtheξ˜ƒENTERξ˜ƒbutton.ξ˜ƒ
ξ˜ƒ
Notes:ξ˜ƒ
1. Defaultsξ˜ƒareξ˜ƒhighlightedξ˜ƒinξ˜ƒyellow.ξ˜ƒ
2. Whenξ˜ƒanξ˜ƒoptionξ˜ƒisξ˜ƒchanged,ξ˜ƒaξ˜ƒhighlightedξ˜ƒSξ˜ƒwillξ˜ƒappearξ˜ƒinξ˜ƒtheξ˜ƒtopξ˜ƒrightξ˜ƒofξ˜ƒtheξ˜ƒLCDξ˜ƒscreenξ˜ƒandξ˜ƒwillξ˜ƒ
disappearξ˜ƒwhenξ˜ƒtheξ˜ƒoptionsξ˜ƒareξ˜ƒsavedξ˜ƒafterξ˜ƒ10ξ˜ƒseconds.ξ˜ƒξ˜ƒAvoidξ˜ƒpoweringξ˜ƒdownξ˜ƒtheξ˜ƒunitξ˜ƒduringξ˜ƒthisξ˜ƒ
time.ξ˜ƒ
3. Youξ˜ƒcanξ˜ƒalwaysξ˜ƒreturnξ˜ƒtoξ˜ƒtheξ˜ƒMainξ˜ƒMenuξ˜ƒbyξ˜ƒpressingξ˜ƒtheξ˜ƒBACK
ξ˜ƒbuttonξ˜ƒtwice.ξ˜ƒ
4. Asξ˜ƒyouξ˜ƒmoveξ˜ƒthroughξ˜ƒtheξ˜ƒmenusξ˜ƒchangingξ˜ƒparameters,ξ˜ƒtheyξ˜ƒwillξ˜ƒbeξ˜ƒinstantlyξ˜ƒappliedξ˜ƒtoξ˜ƒtheξ˜ƒoutputξ˜ƒ
signal.ξ˜ƒ
ξ˜ƒ
Inputξ˜ƒStatus:ξ˜ƒ(Hasξ˜ƒnoξ˜ƒSUB‐MENUs)ξ˜ƒ
ξ˜ƒ
1:3GB 1080p59.94
2:3GA 1080p50
3:SD 480i59.94
4:HD 1080i59.94
οƒŸCurrentξ˜ƒformatξ˜ƒonξ˜ƒSDIξ˜ƒInputξ˜ƒ1ξ˜ƒ
οƒŸCurrentξ˜ƒformatξ˜ƒonξ˜ƒSDIξ˜ƒInputξ˜ƒ2ξ˜ƒ
οƒŸCurrentξ˜ƒformatξ˜ƒonξ˜ƒSDIξ˜ƒInputξ˜ƒ3ξ˜ƒ
οƒŸCurrentξ˜ƒformatξ˜ƒonξ˜ƒSDIξ˜ƒInputξ˜ƒ4ξ˜ƒ
ξ˜ƒ
Control:ξ˜ƒ(Hasξ˜ƒSUB‐MENUs)ξ˜ƒ
ξ˜ƒ
Control
HDMI Out1 Type
HDMI RGB444 2C
οƒŸMainξ˜ƒMenuξ˜ƒ<==ξ˜ƒ
οƒŸSubξ˜ƒMenuξ˜ƒ
οƒŸParameterξ˜ƒWindowξ˜ƒ
Whenξ˜ƒhighlightedξ˜ƒinξ˜ƒtheξ˜ƒMainξ˜ƒMenu,ξ˜ƒpressξ˜ƒtheξ˜ƒENTERξ˜ƒbuttonξ˜ƒtoξ˜ƒenterξ˜ƒthisξ˜ƒsub‐menu.ξ˜ƒξ˜ƒξ˜ƒ
Pressξ˜ƒtheξ˜ƒ<ξ˜ƒandξ˜ƒ>ξ˜ƒbuttonsξ˜ƒtoξ˜ƒmoveξ˜ƒleftξ˜ƒorξ˜ƒrightξ˜ƒrespectivelyξ˜ƒthroughξ˜ƒtheξ˜ƒ10ξ˜ƒmenusξ˜ƒbelowξ˜ƒandξ˜ƒpressξ˜ƒtheξ˜ƒBACKξ˜ƒ
buttonξ˜ƒtoξ˜ƒgoξ˜ƒbackξ˜ƒtoξ˜ƒtheξ˜ƒMainξ˜ƒMenuξ˜ƒwhenξ˜ƒfinished.ξ˜ƒ
Theξ˜ƒcurrentξ˜ƒvalueξ˜ƒforξ˜ƒeach
ξ˜ƒSubξ˜ƒMenuξ˜ƒisξ˜ƒshownξ˜ƒinξ˜ƒtheξ˜ƒParameterξ˜ƒWindow.ξ˜ƒξ˜ƒ
ξ˜ƒ
1.ξ˜ƒControlξ˜ƒ/ξ˜ƒHDMIξ˜ƒOut1ξ˜ƒTypeξ˜ƒ(Parameter)ξ˜ƒ
Thisξ˜ƒisξ˜ƒtheξ˜ƒcurrentξ˜ƒHDMIξ˜ƒoutputξ˜ƒtypeξ˜ƒforξ˜ƒoutputξ˜ƒ1.ξ˜ƒ
Whenξ˜ƒtheξ˜ƒsubξ˜ƒmenuξ˜ƒisξ˜ƒhighlighted,ξ˜ƒpressξ˜ƒENTERξ˜ƒtoξ˜ƒtoggleξ˜ƒthroughξ˜ƒtheξ˜ƒfollowingξ˜ƒtypes:ξ˜ƒ
1.) DVIξ˜ƒRGB444ξ˜ƒξ˜ƒ ξ˜ƒ οƒŸDVI‐Dξ˜ƒRGBξ˜ƒ4:4:4ξ˜ƒ
2.) HDMIξ˜ƒRGB444ξ˜ƒ2Cξ˜ƒξ˜ƒ οƒŸHDMIξ˜ƒRGBξ˜ƒ4:4:4ξ˜ƒwithξ˜ƒ2‐Channelsξ˜ƒofξ˜ƒAudioξ˜ƒ
3.) HDMIξ˜ƒYCbCr444ξ˜ƒ2Cξ˜ƒ οƒŸHDMIξ˜ƒYCbCrξ˜ƒ4:4:4ξ˜ƒwithξ˜ƒ2‐Channelsξ˜ƒofξ˜ƒAudioξ˜ƒ
4.) HDMIξ˜ƒYCbCr422ξ˜ƒ2Cξ˜ƒ οƒŸHDMIξ˜ƒYCbCrξ˜ƒ4:2:2ξ˜ƒwithξ˜ƒ2‐Channelsξ˜ƒofξ˜ƒAudioξ˜ƒ
5.) HDMIξ˜ƒRGB444ξ˜ƒ8Cξ˜ƒξ˜ƒ οƒŸHDMIξ˜ƒRGBξ˜ƒ4:4:4ξ˜ƒwithξ˜ƒ8‐Channelsξ˜ƒofξ˜ƒAudioξ˜ƒ
6.)
HDMIξ˜ƒYCbCr444ξ˜ƒ8Cξ˜ƒ οƒŸHDMIξ˜ƒYCbCrξ˜ƒ4:4:4ξ˜ƒwithξ˜ƒ8‐Channelsξ˜ƒofξ˜ƒAudioξ˜ƒ
7.) HDMIξ˜ƒYCbCr422ξ˜ƒ8Cξ˜ƒ οƒŸHDMIξ˜ƒYCbCrξ˜ƒ4:2:2ξ˜ƒwithξ˜ƒ8‐Channelsξ˜ƒofξ˜ƒAudioξ˜ƒ
ξ˜ƒ
2.ξ˜ƒControlξ˜ƒ/ξ˜ƒHDMIξ˜ƒOut2ξ˜ƒTypeξ˜ƒ(Parameter)ξ˜ƒ
Thisξ˜ƒisξ˜ƒtheξ˜ƒcurrentξ˜ƒHDMIξ˜ƒoutputξ˜ƒtypeξ˜ƒforξ˜ƒoutputξ˜ƒ2.ξ˜ƒ
Thisξ˜ƒsubξ˜ƒmenuξ˜ƒoperatesξ˜ƒtheξ˜ƒsameξ˜ƒasξ˜ƒControlξ˜ƒ/ξ˜ƒHDMIξ˜ƒOut1ξ˜ƒType.ξ˜ƒ
