Digitus DS-55204 Bruksanvisning
Digitus
AV-forlenger
DS-55204
Les nedenfor 📖 manual på norsk for Digitus DS-55204 (9 sider) i kategorien AV-forlenger. Denne guiden var nyttig for 25 personer og ble vurdert med 4.9 stjerner i gjennomsnitt av 13 brukere
Side 1/9

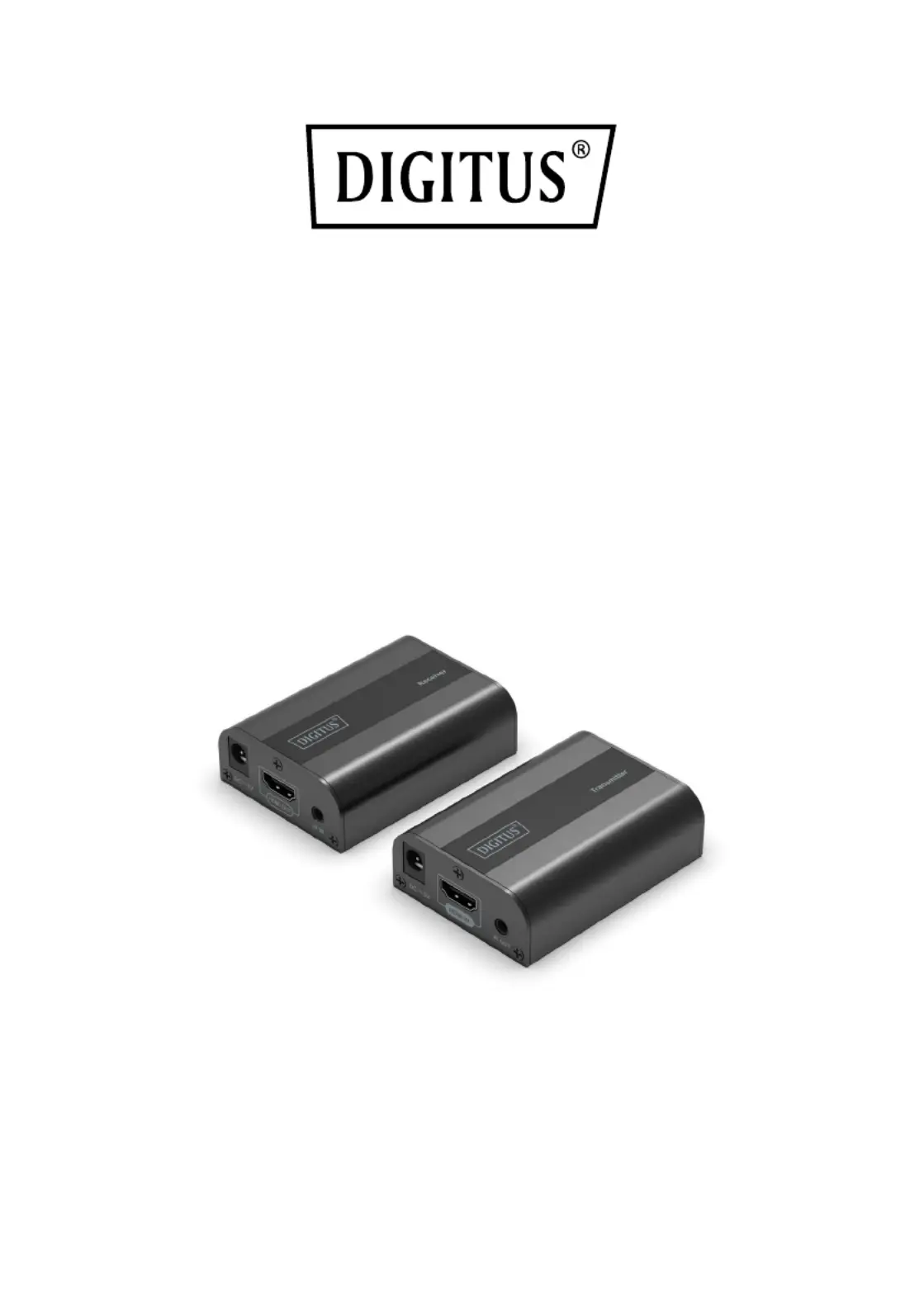

4K HDMI Extender Set,
4K/60Hz
Quick Installation Guide
DS-55204 Rev.3
2
Table of Co
Table of Co
Table of Co
Table of CoTable of Contents
ntents
ntents
ntentsntents
1. Introduction ........................................................................................... 3
2. Product Features .................................................................................... 3
3. Pack age Content 3....................................................................................
4. Specification ........................................................................................... 4
5. Penal Description ................................................................................... 6
6. Connection ............................................................................................. 7
7. Installation Requirements ...................................................................... 8
8. Troubleshooting ..................................................................................... 8
Important Safety Instructions:
1. Do not mix up HDMI to RJ45 sender and RJ45 to HDMI
receiver before installation.
2. Do not hot plug when it is working.
3. Use DC 12V power supply only. Make sure specification
matched if using adapters not supplied by factory.
3
1. Introduction
The Digitus 4K Extender Set, 4K2K/60Hz offers an extender
solution of up to 70 m for the highest demands - both for
high-resolution graphics and for absolutely smooth video
playback. It transmits digital 4K2K/60Hz video and audio signals
to a maximum leng 0 m. It consists of a transmitter th of up to 7
as well as a receiver unit. It also includes two infrared units
(transmitter, receiver) which enable the use of the remote
control of the connected input source.
2. Product Features
• Extends 4K2K/60Hz video content to up to 7 0m
• PoC (Power over Cable) – Only the unit requires an external
power adapter
• Supports 4K Ultra HD (60Hz), 4096 x 2160p resolution
• Integrated IR interface – Easy to control the input source
using a remote control
• Supports CAT 6 and CAT 6A network cables
• Supports HDCP 2.2
3. P ackage Content
• 1x 4K HDMI Extender transmitter unit
• 1x 4K HDMI Extender receiver unit
• 1x Power supply unit: DC 12V/1A
• 1x IR transmitter unit
• 1x IR receiver unit
• 1x Instruction manual
Produkspesifikasjoner
| Merke: | Digitus |
| Kategori: | AV-forlenger |
| Modell: | DS-55204 |
