8495 Dalton Road, Mount Royal, Quebec, Canada. H4T 1V5
Tel: (514) 905-0588 Fax: (514) 905-0589
Toll Free (North America): (877) 689-5228
E-mail: videoease@muxlab.com URL: www.muxlab.com
© MuxLab Inc. 94-000286-E SE-000217-E
Specifications
Environment
Composite video and unbalanced line audio for the consumer and
commercial market.
Devices
DVD, VCR, camcorders, audio receivers, audio amplifiers, AV
switchers, splitters, AV mixers and other analogue audio-video
equipment featuring coaxial input or output with BNC or RCA
connectors.
Transmission
Transparent to the user
Bandwidth
Video: DC to 8 MHz Audio: 60 Hz to 50 kHz
Maximum Video Input
1.1 Vp-p
Insertion Loss
Less than 2 dB per pair over the frequency range from DC to 8 MHz
Return Loss
Greater than 15 dB over the frequency range from DC to 8 MHz
Common Mode Rejection
Ratio (CMRR)
Greater than 40 dB at 8 MHz
Max. Distance: Video
Cat 5E/6: 2,200 ft
Max. Distance: Audio
Cat 5E/6: 5,000 ft
Cable:
Cat 5E/6 UTP/STP
24 AWG or lower solid copper twisted pair wire
Impedance: 100 ohms at 1 MHz
Maximum capacitance: 20 pf/ft
Attenuation: 6.6 dB/1,000 ft at 1 MHz
Cable: RCA
Standard audio cable terminated by RCA connectors
Cable: BNC
75-ohm coaxial cable
Connectors
Two (2) RCA-receptacle for video
Two (2) RCA-receptacles for audio
One (1) RJ45 jack
Pin Configuration
Video 1: Pins 7(R) & 8(T) Video 2: Pins 4(R) & 5(T)
Audio 1: Pins 1(R) & 2(T) Audio 2: Pins 3(R) & 6(T)
Impedance
Video: 75 ohms (RCA) unbalanced
Audio: 600 ohms (RCA) unbalanced
Temperature
Operating: 0° to 55°C
Storage: -20° to 85°C
Humidity: Up to 95% non-condensing
Enclosure
Fire retardant plastic
Dimensions
2.40” x 2.25” x 1.00” (6.10 x 5.72 x 2.54 cm)
Weight
2.1 oz (61 g)
Warranty
Lifetime
Order Information
500012 Dual Audio-Video Balun
Dual Audio-Video Balun
500012
Quick Installation Guide
Overview

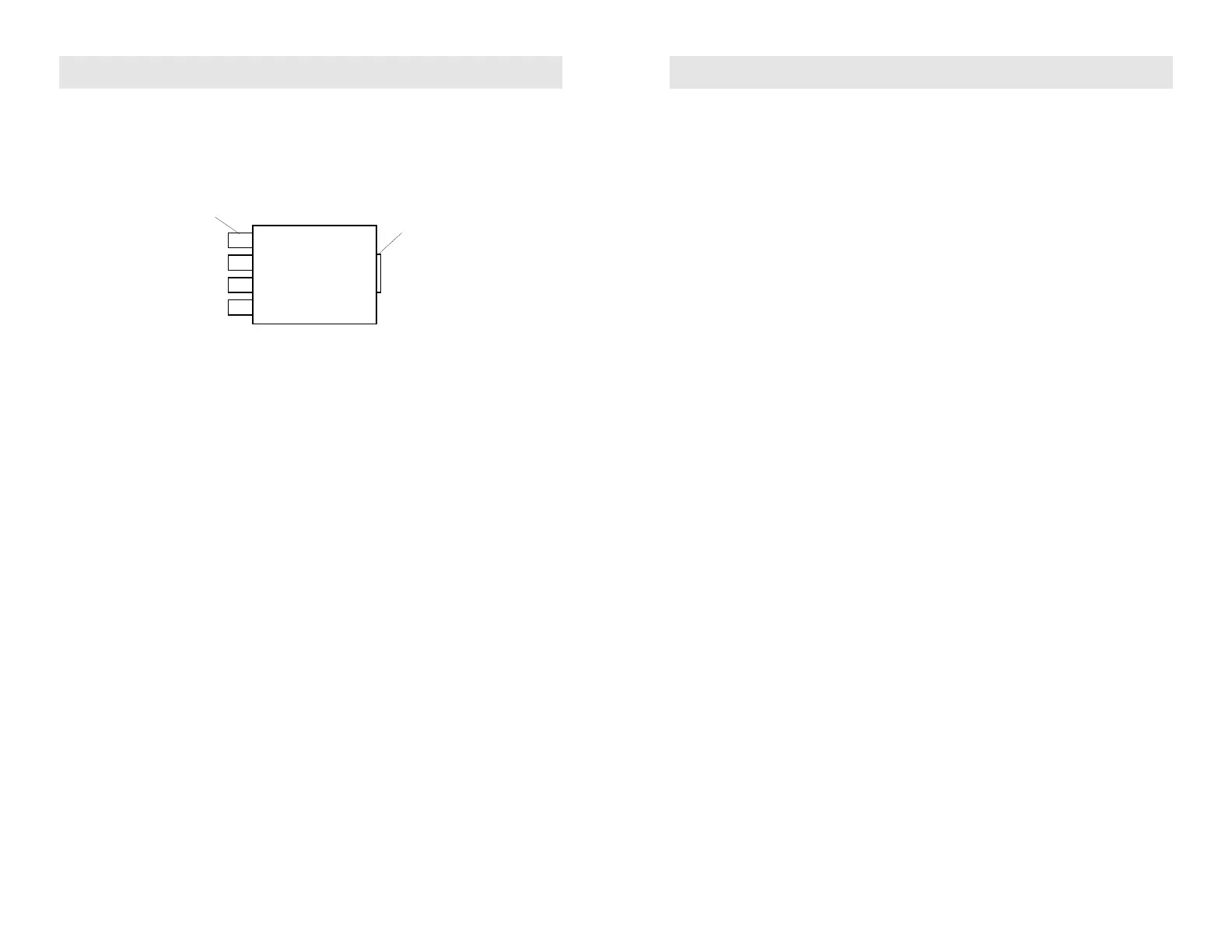

The Dual Audio-Video Balun is designed for standard baseband video/audio equipment
using RCA connectors for both video and audio. The balun has two RCA connectors for
video 1 & 2 and two RCA connectors for audio 1&2 on the equipment side and one
RJ45 connector for video/audio 1 & 2 on the UTP building wiring side.
Used in pairs, this balun may be used to allow VCRs, cam-corders, closed-circuit
televisions, PC-based teleconferencing and other baseband video/audio equipment to be
connected via a building’s structured wiring system. The balun provides the necessary
impedance matching and supports two-way baseband video/audio transmission over a
four pair UTP cable and is ideal for videoconferencing applications.
