Side 1/16

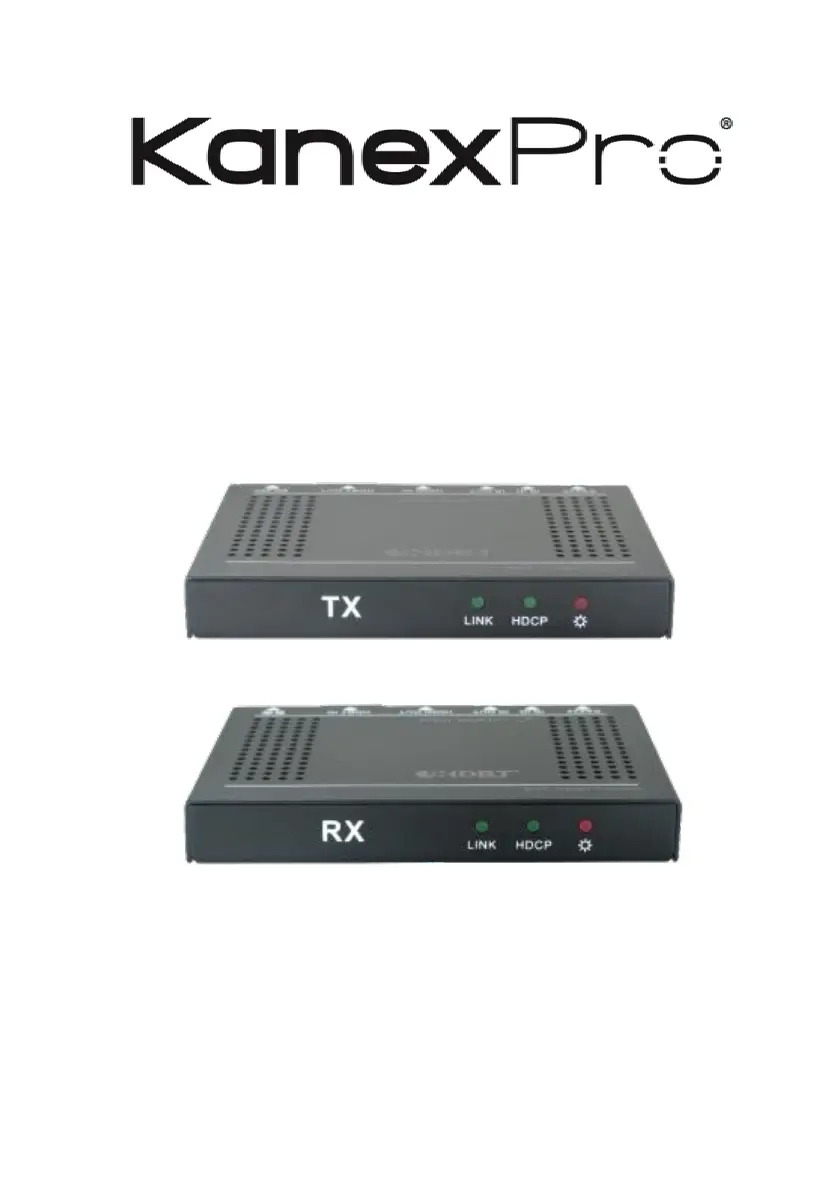

EXT-HDBT70M

HDBaseT Extender

Version: EXT-HDBT70M_2017V1.1

HDBaseT Extender

Preface

Read this user manual carefully before using this product. Pictures shown in this

manual is for reference only, different model and specifications are subject to real

product.

This manual is only for operation instruction only, not for any maintenance usage. The

functions described in this version are updated till June 2017. Any changes of functions

and parameters since then will be informed separately. Please refer to the dealers for

the latest details.

All product function is valid till 2017-6-15.

Trademarks

Product model and logo are trademarks. Any other trademarks mentioned in this

manual are acknowledged as the properties of the trademark owner. No part of this

publication may be copied or reproduced without the prior written consent.

FCC Statement

This equipment generates, uses and can radiate radio frequency energy and, if not

installed and used in accordance with the instructions, may cause harmful interference

to radio communications. It has been tested and found to comply with the limits for a

Class B digital device, pursuant to part 15 of the FCC Rules. These limits are designed

to provide reasonable protection against harmful interference in a commercial

installation.

Operation of this equipment in a residential area is likely to cause interference, in which

case the user at their own expense will be required to take whatever measures may be

necessary to correct the interference

Any changes or modifications not expressly approved by the manufacture would void

the user’s authority to operate the equipment.

Produkspesifikasjoner

Merke:	KanexPro
Kategori:	AV-forlenger
Modell:	EXT-HDBT70MTX
Tilkoblingsteknologi:	Koblet med ledninger (ikke trådløs)
Maksimal oppløsning:	- piksler
Strømforbruk (maks.):	14 W
HDCP:	Ja
HDMI-versjon:	1.4
Impedans:	75 Ω
Utgangsstrøm:	1.25 A
HDMI inn:	1
RS-232 inngangsporter:	1
HDCP-versjon:	2.2
HDBaseT-port:	Ja
AC-inngangsspenning:	100 - 240 V
AC-inngangsfrekvens:	50 - 60 Hz
Støttede lydformater:	LPCM
Produktfarge:	Sort
Driftstemperatur (T-T):	0 - 50 °C
Modell/Type:	AV-sender
Ethernet/bredbåndsforbindelse:	Ja
Relativ luftfuktighet under drift (H-H):	10 - 90
Lydutgang (venstre/høyre):	1
Fjern (IR)-utgang:	1
Største båndbredde for port:	10.2 Gbit/s
Maksimal overføring avstand:	70 m
Kabeltyper som støttes:	Cat5e, Cat6
Senderdimensjoner (BxDxH):	115 x 109 x 16.2 mm
Sendervekt:	193 g
RJ-45-utgangsporter:	1
Extended display identification data (EDID):	Ja
Toveis støtte:	Ja
