Vehicle Mount
OSMO
V1.0
Quick Start Guide
Disclaimer and Warning
Congratulations on purchasing your new DJI product. The information in this
document affects your safety and your legal rights and responsibilities. Read
this entire document carefully to ensure proper configuration before use.
Failure to read and follow instructions and warnings in this document may
result in serious injury to yourself or others, damage to your DJI product, or
damage to other objects in the vicinity. This document and all other collateral
documents are subject to change at the sole discretion of DJI. For up-to-date
product information, visit http://www.dji.com and click on the product page for
this product.
By using this product, you hereby signify that you have read this disclaimer
and warning carefully and that you understand and agree to abide by the
terms and conditions herein. You agree that you are solely responsible
for your own conduct while using this product, and for any consequences
thereof. You agree to use this product only for purposes that are proper and
in accordance with all applicable laws, rules, and regulations, and all terms,
precautions, practices, policies and guidelines DJI has made and may make
available.
DJI accepts no liability for damage, injury or any legal responsibility incurred
directly or indirectly from the use of this product. The user shall observe
safe and lawful practices including, but not limited to, those set forth in this
document.

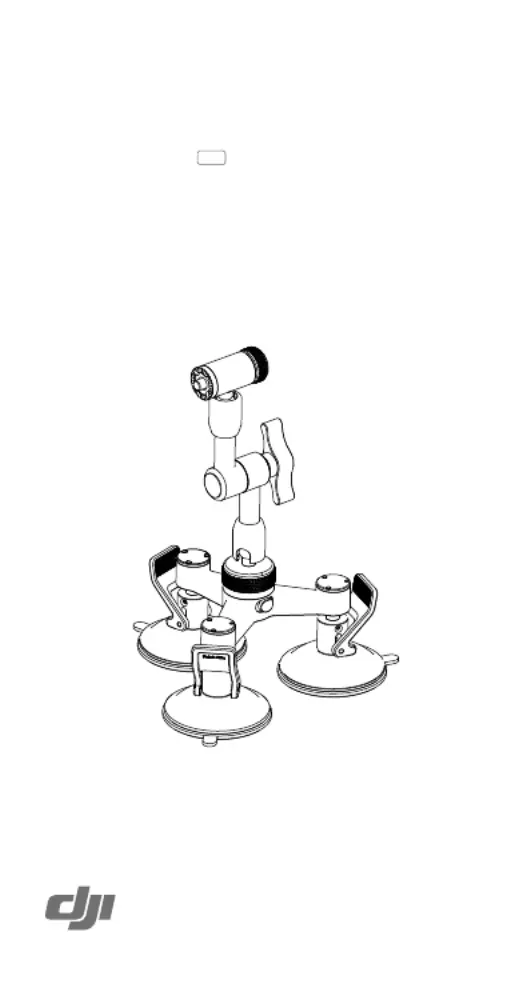

Introduction
The Vehicle Mount for the Osmo uses a triple suction cup design to secure
the Osmo on any at surface of a vehicle.
Specications
Base Radius: 92 mm
Suction Cup Radius: 32 mm
Universal Joint Half: 51 mm
Max Height: 215 mm
Weight: 425 g
51 mm
215 mm
65 mm
92 mm
32 mm
Installation
1. Unfold the universal joint by loosening the knob. Screw it onto the base.
Then, slide the base lock to the locked position.
1
2
3
2. Place the Vehicle Mount on a at surface such as the roof of your car.
Ensure the suction cups make good contact with the surface and then
push down the suction cup levers.
