Assembly/Mounting Instructions

Clarion Permanently Tensioned Projection Screen by Draper

Caution

① Read instructions through completely before proceeding.

② Follow instructions carefully. Installation con trary to instructions

invalidates warranty.

③ When lifting assembled screen, do not lift at only one corner; lift at

both corners. Lifting by one corner could result in damage to the

screen frame, especially on large screens.

④ Screen should be accessible for complete removal should fabric become

damaged or should other ser vice be required.

⑤ Screen should be installed level (using a carpenter’s level).

⑥ Nothing should be fastened to screen frame or viewing surface.

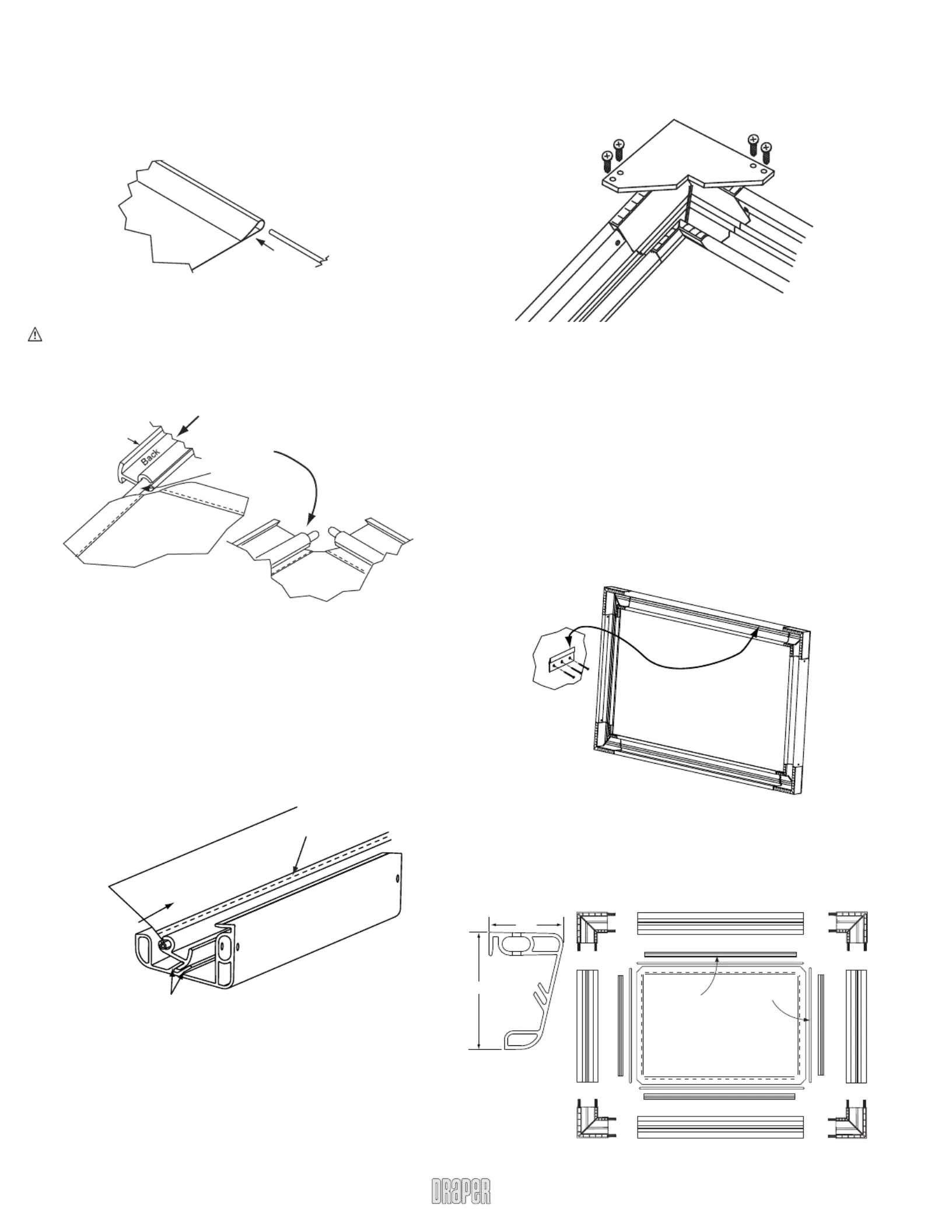

⑦ Make sure you have received all parts (see parts list below and exploded

diagram on page 2).

⑧ Screwdriver required for screen assembly; drill and screwdriver needed

for attachment to wall.

⑨ The ideal temperature range for assembling folding screens to prevent

damaging the surface is 68°-78° F (20°-26° C). Assembling below

recommended temperatures may damage surface and void warranty.

NOTE: Screen has been thoroughly inspected and tested at factory and

found to be operating properly prior to shipment.

If you encounter any difﬁ culties installing or ser vic ing your Clarion screen, call your

dealer or Draper, Inc., Spiceland, Indiana, (765) 987-7999; or fax (765) 987-7142.

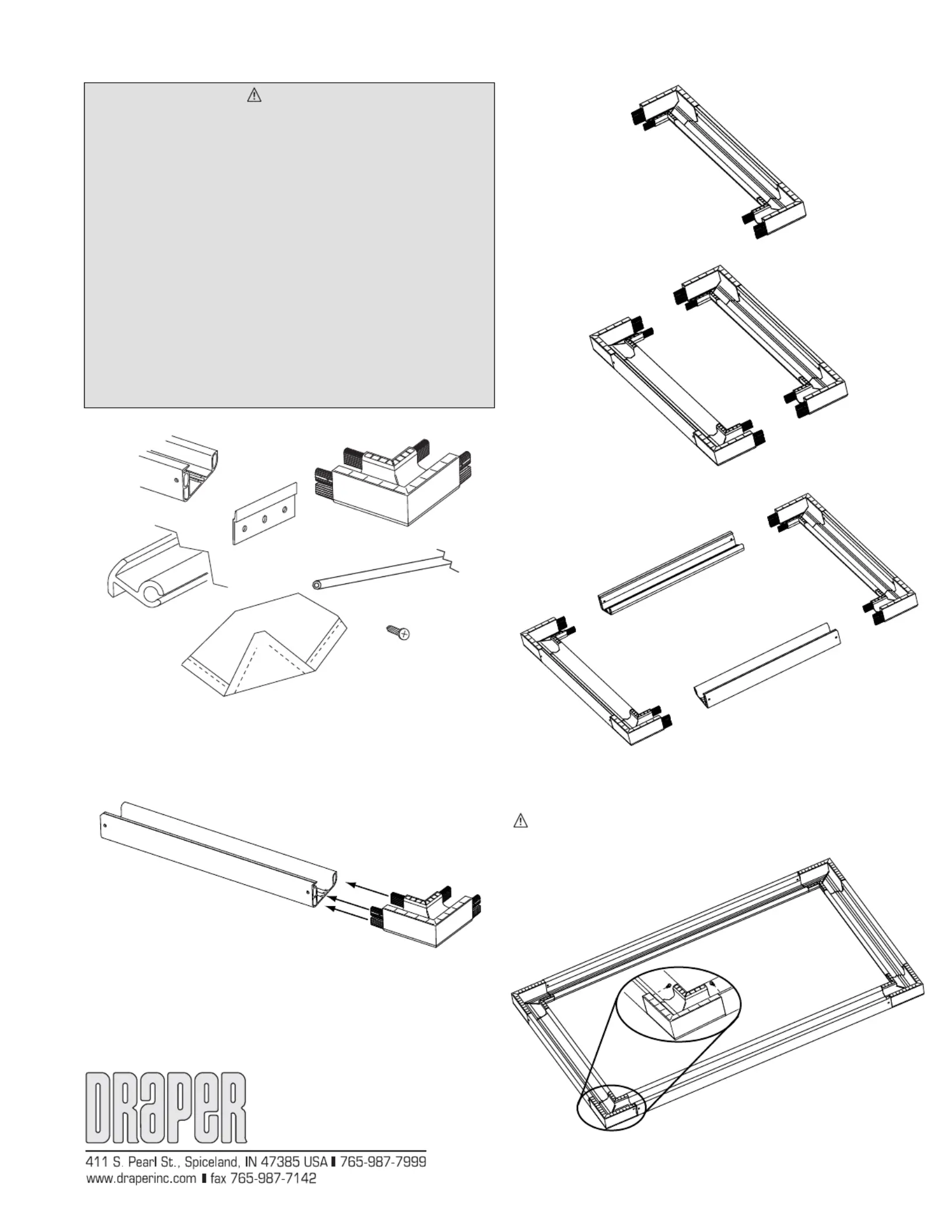

Clarion—Hardware and Parts List

Frame Preparation

① Clean area and place frame assembly pieces face down. Snap plastic

corner pieces into ends of aluminum frame extrusions as indicated in

Figures 1 through 4.

Figure 1

② Check to verify that all four (4) plastic corners are seated securely in

aluminum frame extrusion lengths (see Fig. 5). Lock in place using eight (8)

self-tapping screws.

Caution: Do not over-tighten fasteners—over-tightening could caUse

damage to the frame corners.

Figure 2

Frame Extrusions - 4

Frame Corners - 4

Z-Brackets - 2

Viewing Surface - 1

Plastic Tubing - 4

Surface Retention

Extrusions- 4

Front

Back

Self-tapping

Screws-8

Figure 3

Figure 5

Figure 4

(Continued on Page 2)

Patented by Draper, Inc., U.S. Patent Nos. 6,785,047; 7,113,332; and 7,369,310.

Produkspesifikasjoner

Merke:	Draper
Kategori:	proseksjonsskjerm
Modell:	Clarion 252133
Vekt:	14514 g
Diagonal:	119 "
Format:	HDTV
Naturlig sideforhold:	16:9
Full skjermstørrelse (Høyde x Bredde):	147 x 264 cm
