6XL650N-4

’

ENGLISH | ESPAÑOL

MANUAL DE USUARIO

OWNER'S MANUAL

6.5" MID-RANGE

LOUDSPEAKER WITH NEODYMIUM RINGS

ALTAVOZ DE RANGO MEDIO DE 6.5" CON

ANILLOS DE NEODIMIO

6XL650N-4

SPECIFICATIONS / ESPECIFICACIONES:

Nominal Diameter / Diámetro Nominal............................................................................................ 6.5" / 165 mm

Nominal Impedance / Impedancia Nominal .................................................................................................4 OHMS

RMS Power Handling / Manejo de Potencia RMS.................................................................................. 325 Watts

MAX Power Handling / Manejo de Potencia MAX.................................................................................. 650 Watts

Sensitivity (1w/1m) / Sensibilidad (1w /1m) ...............................................................................................98.5 dB

Frequency Response / Respuesta de Frecuencia............................................................................60Hz-12.5KHz

Recommended Hi Pass Crossover / Corte Paso Alto Recomendado..........................................................100 Hz

Sold as Pair or Single / Vendido en Par o Unidad ........................................................................... Single / Unidad

MOTOR / MOTOR:

Voice Coil Diameter / Diámetro de la Bobina de Voz..........................................................................2" / 50.8 mm

VC Former Material / Material Interior de Bobina de Voz............................................................................ Kapton

Winding Material / Material del Embobinado ................................................................................................. CCAW

Cone Material / Material del Cono ....................................................... Non-pressed Paper / Papel No Prensado

Dust Cap Material / Material de la Tapa Antipolvo............................................................................ Paper / Papel

Surround Material / Material de la Suspensión .....................................................................................Cloth / Tela

Basket Material / Material de la Canasta...............................................................................Aluminum / Aluminio

Basket Color / Color de la Canasta.................................................................................. Satin Black / Satén Negro

Magnet Material / Material del Imán ................................................................................Neodymium / Neodimio

Magnet Weight / Peso del Imán .....................................................................................................................11.4 Oz

Displacement Volume / Volumen de Desplazamiento ................................................................0.34L / 0.012ft3

THIELE & SMALL PARAMETERS / PARÁMETROS T/S:

Equivalent Volume / Volumen Equivalente..........................Vas..................................................5.86L / 0.206ft3

Excursion / Excursión ..............................................................Xmax ..............................................................3.7 mm

Free Air Resonance / Resonancia al Aire Libre.....................Fs ....................................................................100 Hz

Mechanical Factor / Factor Mecánico ...................................Qms...................................................................4.385

Electrical Factor / Factor Eléctrico.........................................Qes ....................................................................0.256

Total Factor / Factor Total ......................................................Qts .....................................................................0.242

Mechanical Mass / Masa Mecánica.......................................Mms ................................................................11.278

Mechanical Compliance / Cumplimiento Mecánico.............Cms ...................................................... 0.214 mm/N

BL Factor / Factor Bl ...............................................................Bl........................................................................9.449

Voice Coil Inductance / Inductancia de Bobina de Voz........Le ............................................................. 0.1744 mH

Cone Area / Área del Cono ......................................................Sd............................................................. 136.85 cm²

DC Resistance / Resistencia DC .............................................Re...................................................................3.2 ohm

Mechanical Mass w/o air / Mechanical Mass w/o air.........Mmd............................................................ 11.278 g

MEASUREMENT / MEDIDAS:

Overall Diameter / Diámetro Total .................................................................................................... 6.7" / 170 mm

Overall Depth / Profundidad Total..................................................................................................... 3.19" / 81 mm

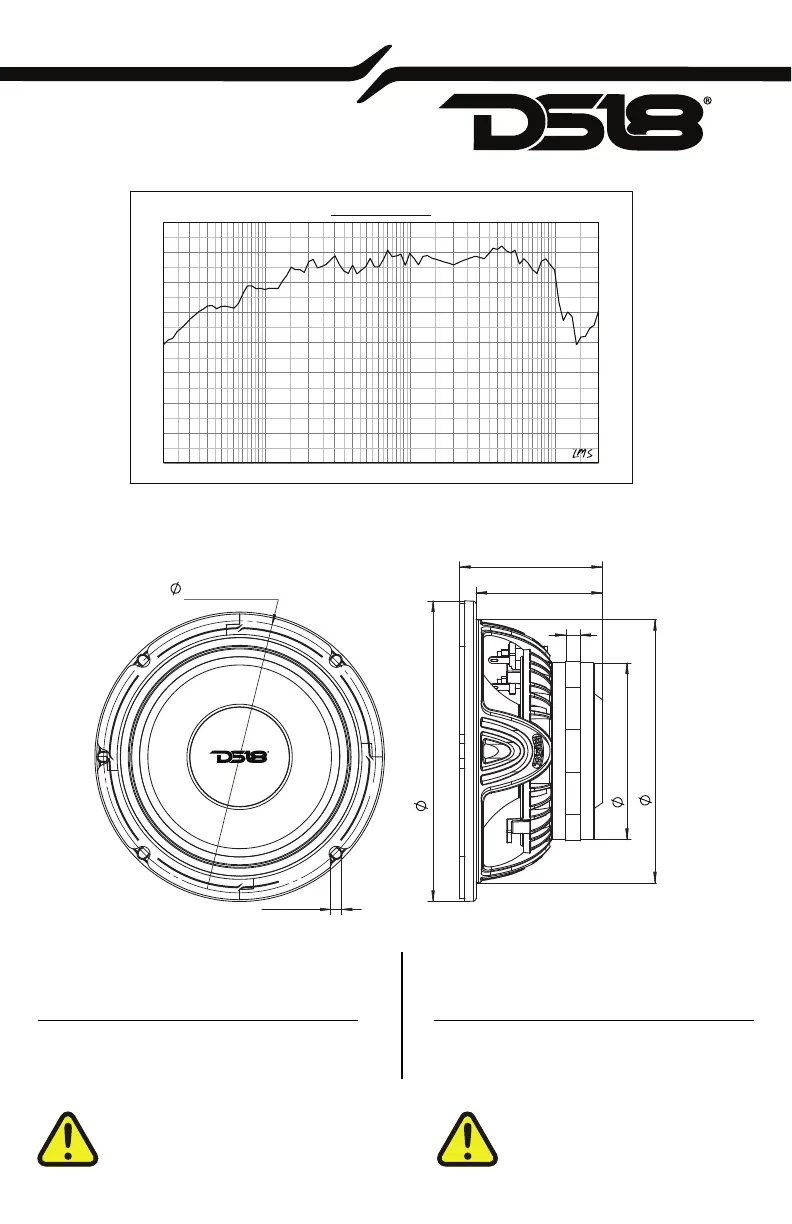

Front Mount Baffle Cutout

Corte del Orificio de Montaje............................................................ 5.9" / 150 mm

Mounting Depth / Profundidad de Montaje ..................................................................................... 2.83" / 72 mm

Motor Diameter / Diámetro del Motor............................................................................................4.13" / 105 mm

20 Hz 50 100 200 500 1K 2K 5K 10K 20K

dBSPL

100

110

SPL vs Freq
