Side 1/14

DVDO │ +1.408.213.6680 │ support@dvdo.com │ www.dvdo.com

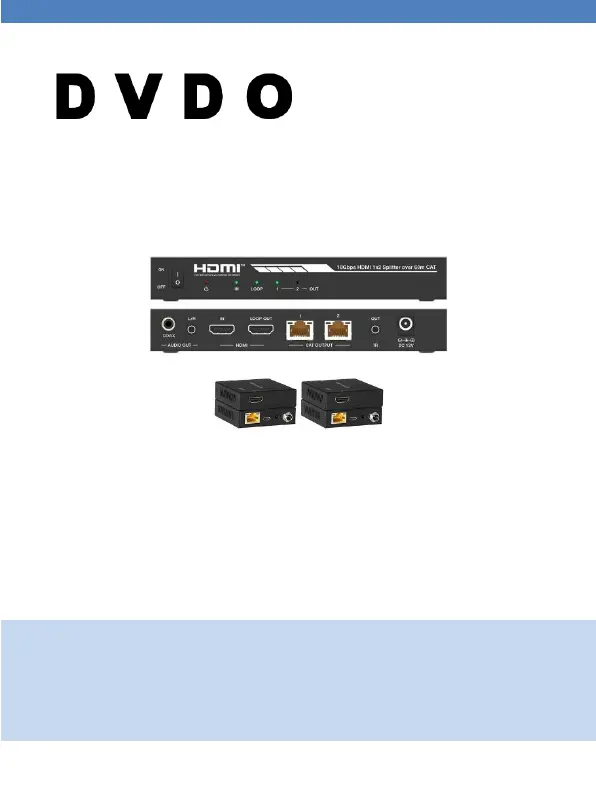

DVDO-Splitter-12-CAT

4K 1x2 HDMI Splitter with CAT Outputs

User Manual

Version v1.0

Thank you for purchasing DVDO-Splitter-12-CAT
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this manual
for future reference.
Surge protection device recommended
DVDO-Splitter-12-CAT contains sensitive electrical components that may be
damaged by electrical spikes, surges, electric shock, lighting strikes, etc.
Use of surge protection systems is highly recommended in order to protect
and extend the life of your equipment.
Caution
DVDO-Splitter-12-CAT requires the use of UTP connectors. Please
connect in direct interconnection method and do not cross connect.


White and Orange
Orange
White and Green
Blue
White and Blue
Green
White and Brown
Brown

Direct Interconnection Method
Table of Contents
1. Introduction. ........................................................................................
1

2. Features. ..............................................................................................
1

3. Package Contents. .............................................................................
1

4. Specifications. ....................................................................................
2

5. Operation Controls and Functions. ...................................................
3

5.1 Transmitter. ....................................................................................
3

5.2 CAT Receiver. ...............................................................................
5

5.3 IR Pin Definition ..............................................................................
6

6. EDID Mode. .........................................................................................
7

7. ASCII Commands. ..............................................................................
8

8. Application Example. .........................................................................
11
