DYSON CR01
DRUM BEARING REPAIR
I have written this guide assuming that the reader has no knowledge on how to dismantle
any part of the Dyson CR01. Having never worked on a CR02, I am unaware if the
construction of that model differs greatly.
I have borrowed various images from the net and thank everyone for their contribution.
Read each paragraph twice before starting that phase of dismantling.
Tools required.
a) Set of Torx bits / screwdrivers
b) Large hammer
c) Bolster.
d) Set of metric spanners / sockets
e) Digital Camera. (Always a good idea to photograph in situ before your remove)
1) Disconnect from the water and electricity supply and remove hoses. Drain as much
water from the machine as possible by removing the coin trap cover and putting the drain
pipe as low as possible.
2) Remove the top cover. Remove the two Phillips screws at the rear of the cover and slide
it backwards
3) Remove soap dispenser. The yellow catch at the rear of the dispenser allows it to be
removed.
4) Remove front controls / display.
a)This is held on with two torx screws and when removed should be slid downwards.
This will release the plastic tabs that hold it in place.
b) Disconnect the ribbon cable from where it attached to the machine body.
c)Remove the pressure sensor pipe. This just pulls off.
d) Disconnect the four power cables to the main on / off switch. The position of the
cables should be recorded for reassembly.
The entire control panel assembly should now be free
5) Remove exterior door. This is held in place with spring clips / hinges that are visible. I
found it easy to insert a flat screw driver into the hinge and push down the yellow clip.
6) Remove front panel. This is held in place with 4 torx screws and a number of plastic
tabs. Care should be taking not to break the plastic tabs. 2 screws are clearly visible on
the top of the panel and the other two are recessed into the hinge of the exterior door. If
you have not already removed the coin trap cover then this is the time do it as the front
panel will not come off while it is in place. After the screws and trap have been removed
gently slide the panel UPWARDS and it will come away from the machine. It will
however still be attached by a cable connecting the door lock which can be
disconnected at the base of the machine.
Screws Door Lock Connector
7) Remove the back panel. 7 screws hold it in place.
Ignore the red part as I borrowed this image from
the Dyson unpacking instructions

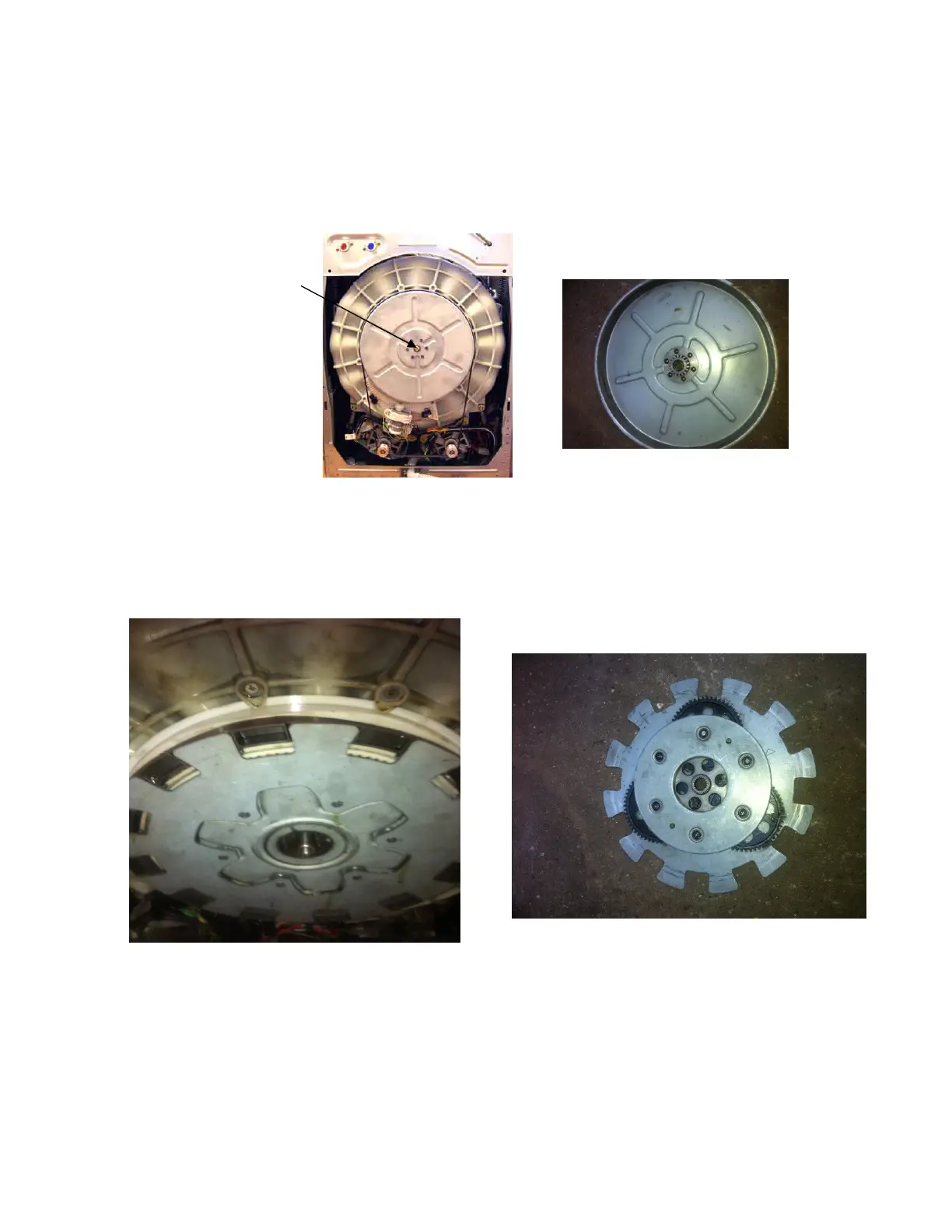

8) Remove drive belt .
9) Remove Drive wheel. This is held in place with a single Torx screw.
Screw
10) Remove the gear box. This sits on the centre spline and is not held by any form of
retaining screw or clip. Gently persuade it from the spline. You will see when you pull
that it is spring loaded and care must be taken not to dislodge the spring retaining clips
at the back.
