Side 1/18
For The Warranty Terms & Conditions, Please Refer To Warranty Certificate
Owner’s Manual
Please read this manual carefully before
operating your set.
Retain it for future reference.
Record model number and serial number
of the set.
See the label attached on the set and
quote this information to your dealer
when you require service.
TUMBLE DRYER
MODEL: ED-F7160(WH)
2
REMOVE ALL PACKING MATERIALS FROM THIS PRODUCT BEFORE USING IT. THIS
APPLIANCE MUST BE INSTALLED IN LEVEL. PLEASE ENSURE THE ELECTRICITY
SUPPLY TO THIS APPLIANCE IS DISCONNECTED BEFORE INSTALLING.
Please read this instruction carefully. It is advisable to keep this instruction manual in a
safe place for future reference.
SAFETY PRECAUTIONS
1. Keep this appliance out of reach from children. Do not let them to operate the
appliance without supervision.
2. Check the current rating on the rating plate and make sure the current supplied is
matched with the appliance before using.
3. This product is for household and indoor use only.
4. This product is not intended for use by person (including children) with reduced
physical, sensory or mental capabilities unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for their safety.
5. If the power cord or plug is damaged, it must be replaced by the service centre or a
qualified service technician to avoid hazard.
6. Any electrical work required to install this appliance should be carried out by a
qualified technician or competent personnel.
WARNING - to reduce the risk of fire or injury to persons or property, please
read and follow below instructions carefully:
Do not operate this appliance if it has malfunctioned, damaged or appears damaged in
any way. Make enquiry to our service centre and return the complete set to the place
of purchase for inspection, repair or replacement.
This appliance must be grounded and the ground wire should not be connected to any
heating pipe and gas pipe.
Avoid placing any objects into the appliance such as coins, nails, screws, or objects
which may cause severe damage to the drum.
Objects made with rubber or any latex material such as hand gloves and shower caps
should not be dried in the tumble dryer at any time.
Laundry which has been contaminated with flammable substance such as petrol,
kerosene, cooking oil or turpentine should be washed in hot water with detergent
before drying with this appliance. Only tumble dry laundry washed with water.
If the tumble dryer is place on top of a washing machine, it is compulsory to use the
stacking kit (optional accessory) to hold the appliance.
Do not overload the appliance. Laundry which is dripping wet should not be dried with
the appliance.
3
INSTALLATION
Position the tumble dryer so that the plug remains accessible after
installation. Do not block the back of the dryer, as this will impair the
working of the machine. Leave a space of 10cm between the rear of
the tumble dryer to the wall.
This appliance must not be installed behind a lockable door, a sliding
door or a door with hinges on the opposite side to that of the tumble
dryer.
Your tumble dryer will release warm, damp air during operation.
REAR VENTING
The dryer vents through a vent hose on the back of dryer.
Vent hose must be installed if they are placed under a work
surface or against a wall. To minimize condensation it is
preferable to vent outdoor. This may be through an open
door or window. The best solution is to connect the vent
hose to a permanent connection through a wall or a single
glazed window. This is particularly recommended for small,
cool rooms.
When using a vent hose, remember the following points:
- The vent hose must be at 10cm (4 in) in diameter.
- No more than three right-angled bends should be allowed when positioning the vent
hose.
- Do not distort or constrict the vent hose as this will reduce the airflow.
- The vent hose must not be shared with other appliances, for example, a cooker
hood outlet.
FINAL INSTALLATION
Push the filter into its operating position located under the door. Remove any dust by
wiping the drum and door with a damp cloth. Any initial smell of burning will be caused by
dust on the heater for the first use and will quickly disappear.
4
SAFETY PRECAUTIONS
Install or store the appliance where it will not
be direct exposed to water or sun, this may
cause permanent damage or malfunction of
the appliance.
Keep area around the exhaust opening
and adjacent surrounding areas free from
the accumulation of lint, dust and dirt. An
obstructed port might reduce the airflow.
Do not store plastic, paper or clothing that
may burn or melt on the top of the
appliance during operation.
The exhaust air must not be discharged
into a flue which is used for exhausting
fumes from appliance of burning gas or
other fuels.
Do not dry the laundry that have been
cleaned in, washed in, soaked in or spotted
with combustible or explosive substances
(such as wax, oil, paint, gasoline, degreasers,
dry-cleaning solvents, kerosene, etc.) as it
will damage the appliance.
Never attempt to operate this appliance if
it is damaged, malfunctioning, or broken
parts such as a damaged on power cord
or plug.
Do not allow children to operate this
appliance. Close supervision of children is
necessary when the appliance is used.
Please do not reach the appliance when
your foot or hand is wet.
5
This product belongs to type I electronic products and please take note of safety problem
accordingly:
1. It is always beware of the power which is buried in the earth and will not touch any
social equipment such as gas pipe or water pipe etc. Make sure the difference of
different lines and they are not connected.
2. When you are using the appliance, please make sure the maximum current will
reach 10A. Therefore, please make sure the power supply units (current, voltage
and cable) can meet the normal load requirements for the machine.

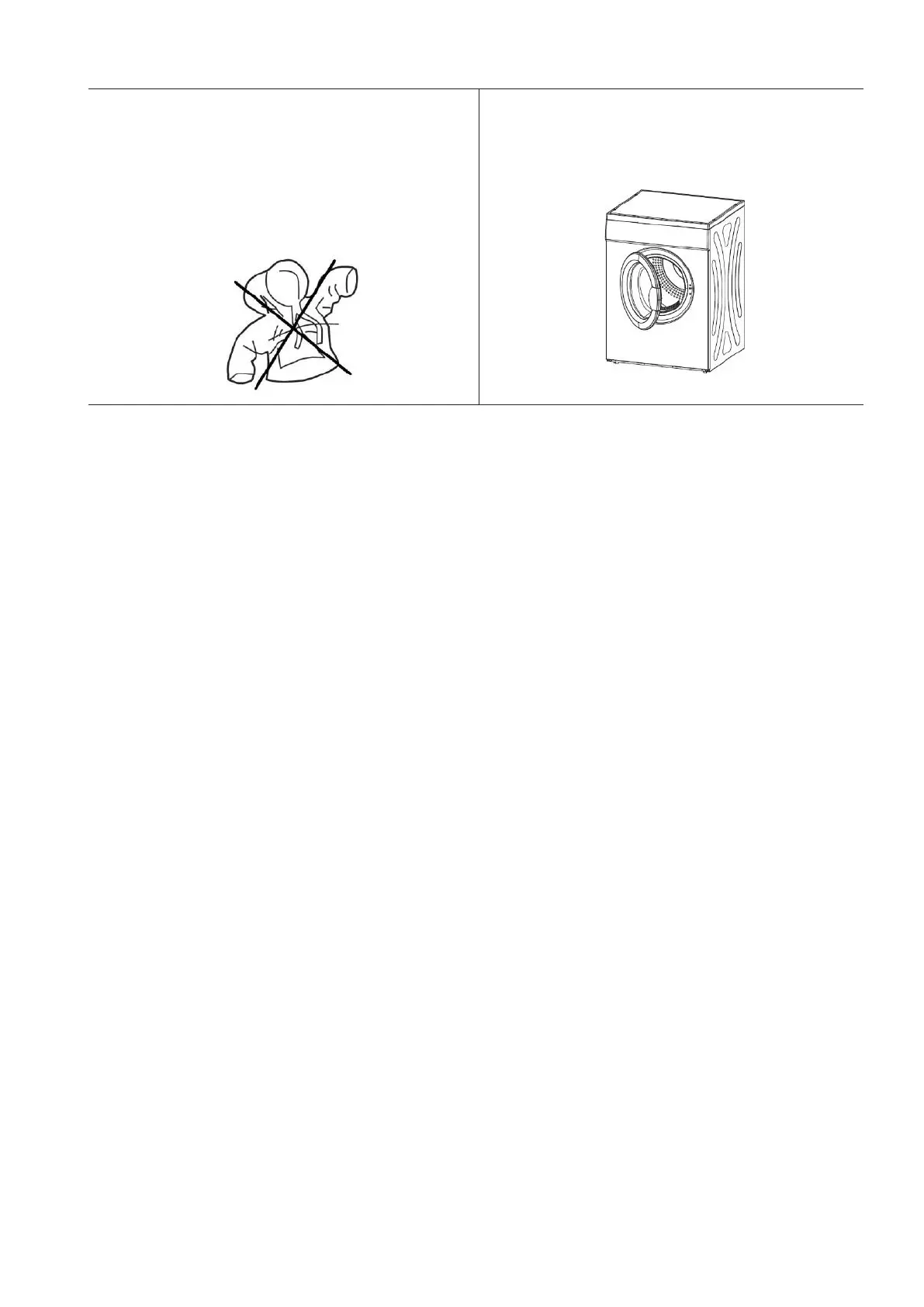

Do not dry laundry that contain rubber, plastic
or similar materials such as padded bras,
tennis shoes, galoshes, bath mats, rugs, bibs,
baby pants, raincoat, plastic bags or pillows
that may cause melt or burn. Some of the
rubber materials will cause fire when heated
and will permanently damage the appliance.
It is prohibited to open the door before the
drying program had finished as it will cause
injury from being scalded by hot steam or
over heated by the appliance.
6
PREPARATION
Please pay attention to use the appliance if the labels inside the garments cannot be dried
or contain the symbols as follows:
1. To avoid the need to iron easy-care polyester / cotton items, it is better to only dry
small loads (half fill drum) with small and large articles together.
2. Do not overload the dryer or dry large bulky items such as duvets, quilt, curtain or
sleeping bags as it is important to make sure the air flow through the dryer is not
obstructed.
3. Before drying, thoroughly spin the laundry in washing machine. Higher spin speed
can reduce the drying cycle time and save energy consumption.
4. Before drying, please close zips, hooks and eyelets, button up, tie fabric belts, etc.
5. Do not over dry the clothes. This will cause over dried clothes easily creases.
6. Do not dry the articles containing rubber or similar elastic materials.
7. The door can be opened only once the program of the drying completed.
8. Clean the lint filter and empty container after each use to avoid extension of drying
time and energy use.
7
PROGRAM TABLE
The above program is for reference only. Users may choose the appropriate program according to their needs and the condition of
laundry. For fabrics that are thick and multi-layered such as bedlinen, jeans, and jackets that not easily to dry, please choose mix
extra program and set to the maximum drying intensity level.
Program
Capacity
(max)
Descriptions
Delay Start
Cotton
For fabrics such as cotton or linen.
Extra
7.0kg
To dry cotton made laundry. Drying level: extra dry.
Y
Standard
To dry cotton made laundry. Drying level: standard dry.
Less
To dry cotton made laundry. Drying level: less dry.
Mix
To dry fabrics that mix with delicate cottons and synthetics together.
Extra
7.0kg
To dry mix made laundry. Drying level: extra dry.
Y
Standard
To dry mix made laundry. Drying level: standard dry.
Synthetics
For synthetic fabrics such as polyester, nylon and rayon
Extra
3.0kg
To dry synthetics made laundry. Drying level: extra dry.
Y
Standard
To dry synthetics made laundry. Drying level: standard dry.
Time
30 min
-
30 minutes laundry time.
Y
40 min
40 minutes laundry time.
50 min
50 minutes laundry time
60 min
60 minutes laundry time
Special
Delicate
-
To dry delicate laundry such as lingerie, hand washable fabrics, machine wash,
dry woollens, and heat sensitive items labelled tumble dry-low temperature.
Y
Refresh
Remove the smell of the laundry which had been kept for long time.
Quick
Rapidly warm the laundry.
Airing
Airing
-
To air clothes without hot air.
Y
Wool
Wool
-
For a fluffy and fresh wool effect. Cannot be used for drying wool clothing).
When the drying cycle is done, take out the clothes and dry it in open area.
Y
8
Note:
1. The dryer will blow cold wind for final cool down for 3 minutes before finishing the
laundry cycle done.
2. If anti-crease program is selected, the anti-crease process will prolonged to 2
hours, otherwise it keeps 30 minutes (by default).
3. The temperature and humidity inside the dryer will affect the drying performance.
4. Check the label attached on clothes and choose the right temperature and time
according to the program table.
The reference weight of laundry.

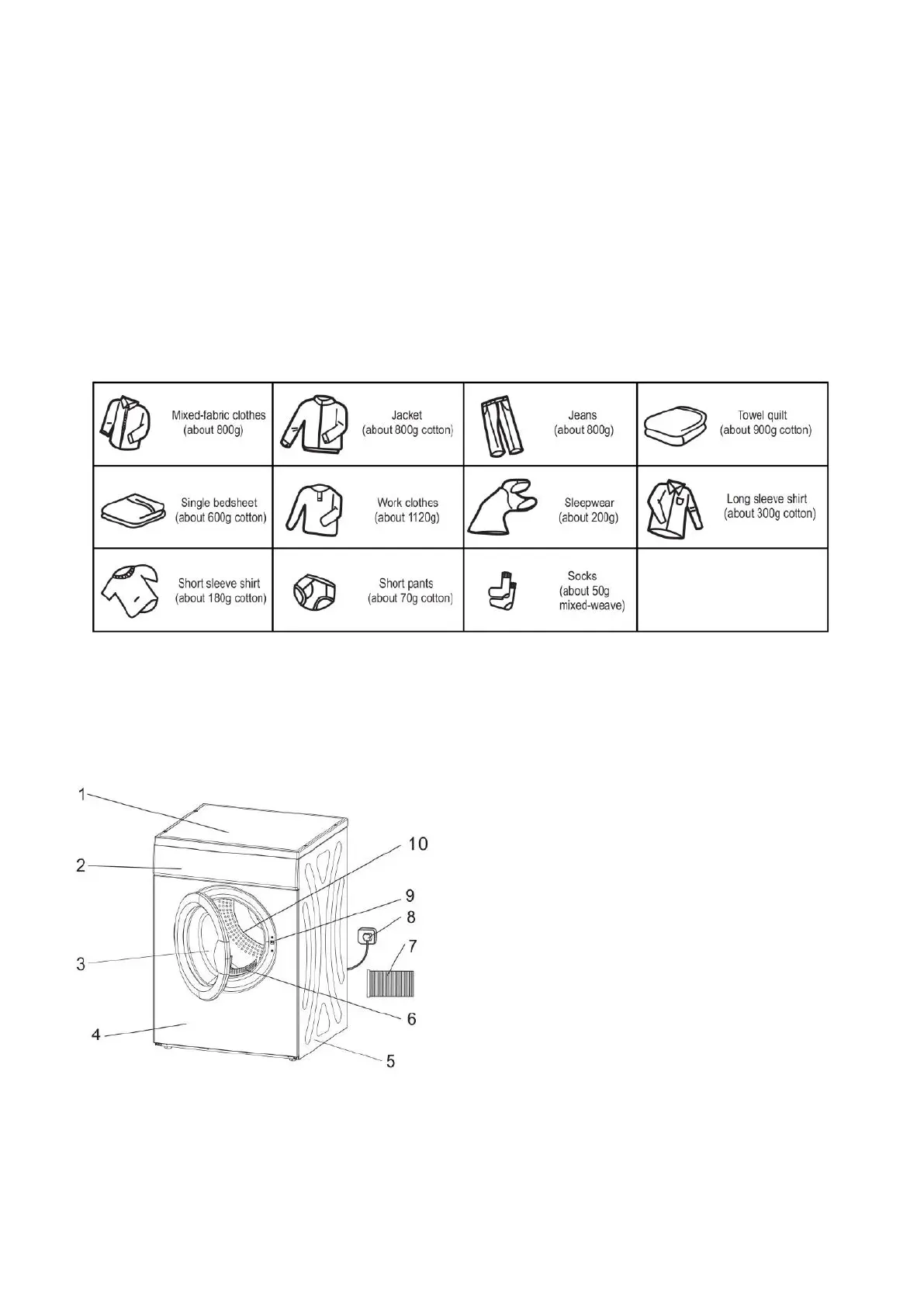

PRODUCT DESCRIPTION
1. Top Board
2. Control Panel
3. Door
4. Front Panel
5. Side Panel
6. Lint Filter
7. Vent Hose
8. Power Plug
9. Door Latch
10. Drum
