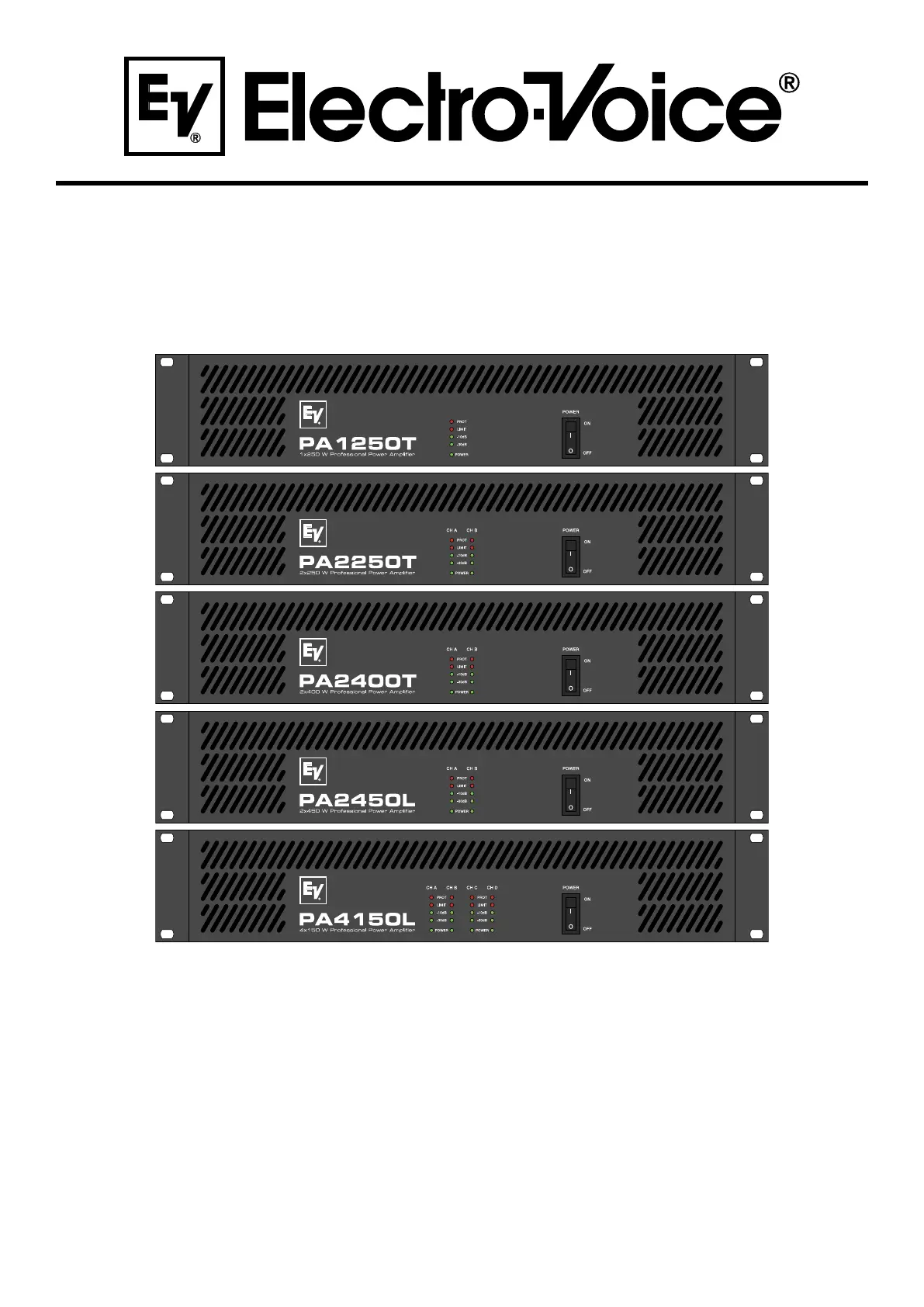

OWNER‘S MANUAL
BEDIENUNGSANLEITUNG
MODE D‘EMPLOI
PA1250T
PA2250T
PA2400T
PA2450L
PA4150L
PA SERIES
CONTENTS
ENGLISH
IMPORTANT SAFETY INSTRUCTIONS ...... 3
IMPORTANT SERVICE INSTRUCTIONS ...... 3
DESCRIPTION ...... 4
Unpacking & Warranty ...... 4
Installation Notes ...... 4
FRONT PANEL ...... 5
Mains Switch ...... 5
Protect ...... 5
Limiter ...... 5
Level Indication ...... 5
Power ...... 5
REAR PANEL ...... 6
Audio Signal Inputs ...... 6
Level Controls ...... 6
Mode Switch ...... 6
High Pass Filter ...... 6
Loudspeaker Outputs ...... 7
Mains Fuse ...... 8
Mains Socket ...... 8
Voltage Selector ...... 8
LF CONNECTION CORDS ...... 8
MAINS OPERATION & RESULTING
TEMPERATURE ...... 9
NOTES ...... 11
DEUTSCH
INHALT ...... 12
WICHTIGE SICHERHEITSHINWEISE ...... 13
WICHTIGE SERVICEHINWEISE ...... 13
BESCHREIBUNG ...... 14
Auspacken & Garantie ...... 14
Installationshinweise ...... 14
FRONTSEITE ...... 15
Netzschalter ...... 15
Protect ...... 15
Limiter ...... 15
Pegelanzeigen ...... 15
Power ...... 15
RÜCKSEITE ...... 16
Signaleingänge ...... 16
Level Regler ...... 16
Mode Schalter ...... 16
Hochpasslter ...... 16
Lautsprecherausgänge ...... 17
Netzsicherung ...... 18
Netzbuchse ...... 18
Spannungswahlschalter ...... 18
NF-VERBINDUNGSKABEL ...... 18
NETZBETRIEB & WÄRMEENTWICKLUNG ...... 19
NOTIZEN ...... 21
2
FRANCAISE
TABLE DES MATIÉRES ...... 22
INSTRUCTIONS DE SÉCURITÉ
IMPORTANTES ...... 23
INSTRUCTIONS DE RÉPARATION
IMPORTANTES ...... 23
INTRODUCTION ...... 24
Déballage et garantie ...... 24
Remarques concernant l’installation ...... 24
FACE AVANT ...... 25
Interrupteur secteur ...... 25
Protect ...... 25
Limiteur ...... 25
Indicateur de niveau ...... 25
Power ...... 25
PANNEAU ARRIÈRE ...... 26
Entrées Signal Audio ...... 26
Contrôles de niveau ...... 26
Sélecteur de Mode ...... 26
Filtre Passe-Haut ...... 26
Sorties Haut-Parleur ...... 27
Fusible secteur ...... 28
Prise secteur ...... 28
Sélecteur de tension ...... 28
CORDONS DE CONNEXION AUDIO ...... 28
ALIMENTATION SECTEUR ET
TEMPÉRATURE RÉSULTANTE ...... 29
NOTICES ...... 31
APPENDIX / ANHANG / APPENDICE
TECHNICAL SPECIFICATIONS ...... 32
BLOCK DIAGRAMM ...... 33
PA2450L / PA4150L ...... 33
PA4150L ...... 34
PA2400T / PA2250T ...... 35
PA1250T ...... 36
DIMENSIONS ...... 37
3
The lightning ash with arrowhead symbol, within an
equilateral triangle is intended to alert the user to the
presence of uninsulated „dangerous voltage“ within
the product’s enclosure that may be of sufcient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle
is intended to alert the user to the presence of
important operating and maintance (servicing)
instructions in the literature accompanying the
appliance.
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with a dry cloth.
7. Do not cover any ventilation openings. Install in accordance with the manufacture’s instructions.
8. Do not install near heat sources such as radiators, heat registers, stoves, or other apparatus
(including ampliers) that produce heat.
9. Do not defeat the safety purpose of the polarized or the grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an
electrican for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specied by the manufacturer.
12. Unplug this apparatus during lightning storms or when unused for a long period of time.
13. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged
in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the
apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
14. Do not expose this equipment to dripping or splashing and ensure that no objects lled with liquids, such as vases,
are placed on the equipment.
15. To completely disconnect this equipment from the AC Mains, disconnect the power plug from the AC receptacle.
16. The mains plug of the power supply cord shall remain readily operable.
CAUTION: These servicing instructions are for use by qualied personnel only. To reduce the risk of
electric shock, do not perform any servicing other than that contained in the Operating
Instructions unless you are qualied to do so. Refer all servicing to qualied service personnel.
1. Security regulations as stated in the EN 60065 (VDE 0860 / IEC 65) and the CSA E65 - 94 have to be obeyed when
servicing the appliance.
2. Use of a mains separator transformer is mandatory during maintenance while the appliance is opened, needs to be
operated and is connected to the mains.
3. Switch off the power before retrotting any extensions, changing the mains voltage or the output voltage.
4. The minimum distance between parts carrying mains voltage and any accessible metal piece (metal enclosure),
respectively between the mains poles has to be 3 mm and needs to be minded at all times. The minimum distance
between parts carrying mains voltage and any switches or breakers that are not connected to the mains (secondary
parts) has to be 6 mm and needs to be minded at all times.
5. Replacing special components that are marked in the circuit diagram using the security symbol (Note) is only
permissible when using original parts.
6. Altering the circuitry without prior consent or advice is not legitimate.
7. Any work security regulations that are applicable at the location where the appliance is being serviced have to be
strictly obeyed. This applies also to any regulations about the work place itself.
8. All instructions concerning the handling of MOS - circuits have to be observed.
SAFETY COMPONENT ( MUST BE REPLACED BY ORIGINAL PART )NOTE:
IMPORTANT SERVICE INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
Management of WEEE (waste electrical and electronic equipment) (applicable in Member States of the
European Union and other European countries with individual national policies on the management of
WEEE) The symbol on the product or on its packaging indicates that this product may not be treated as
regular household waste, but has to be disposed through returning it at a Telex dealer.
