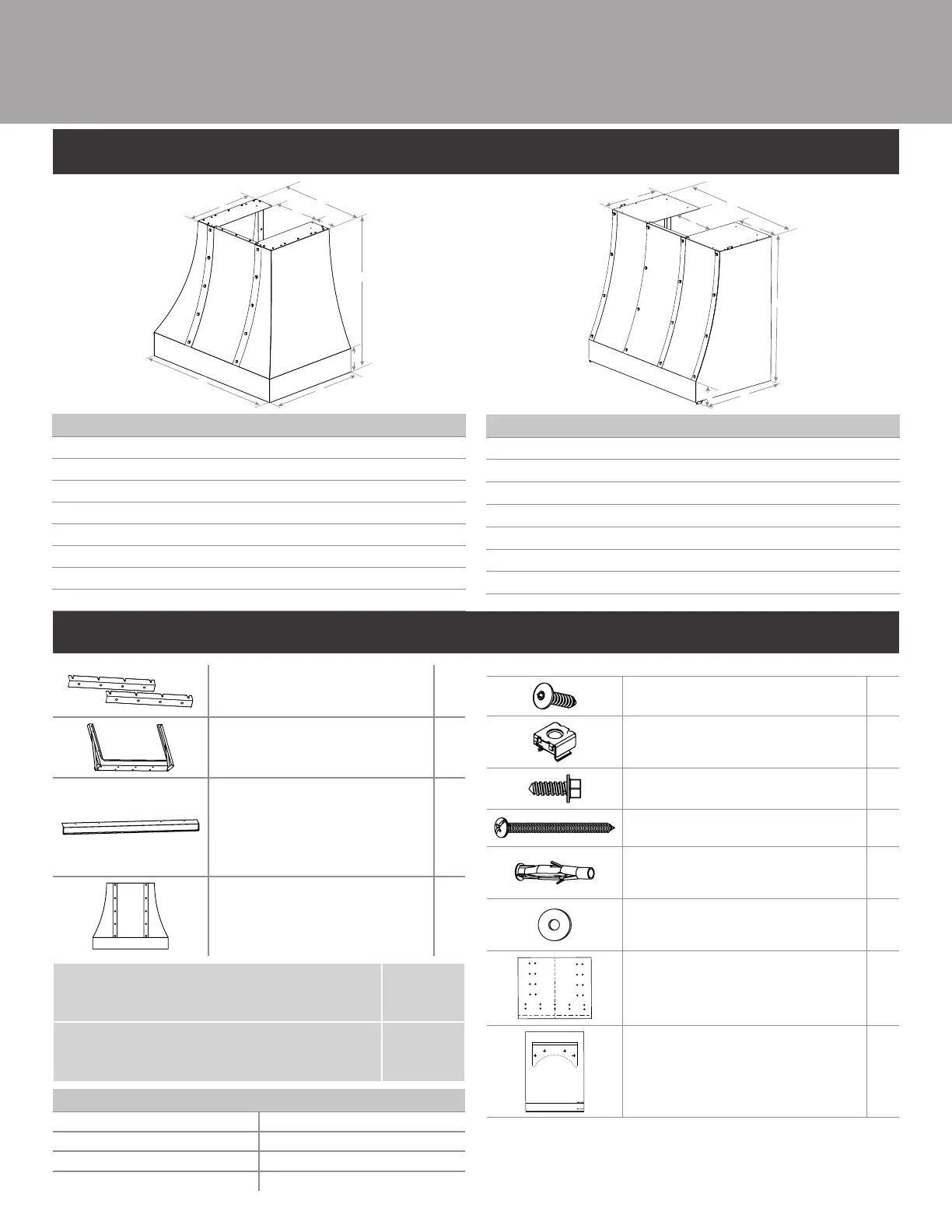

Instruction sheet for Hood Cabinet
Feuille d'instructions pour l'armoire à hotte
Hoja de instrucciones para el gabinete de la campana
INSTALLATION INSTRUCTIONS / INSTRUCTIONS D'INSTALLATION / INSTRUCTIONS D'INSTALLATION
DIMESIONS AND CLEARANCES / DIMENSIONS ET DÉGAGEMENTS / DIMENSIONES Y ESPACIOS LIBRES
E
D
C
B
H
F
A
G
EORX36SS EORX48SS
A 22 /" (57.8 cm) 22 /" (78.8 cm)
B 31 /" (80.3 cm) 31 /" (80.3 cm)
C 5 /" (14 cm) 5 /" (14 cm)
D 24 /" (61.7 cm) 24 /"(61.5 cm)
E 36 /" (91.9 cm) 48" (122.1 cm)
F 12" (30.4 cm) 12" (30.4 cm)
G 5 /" (13.7 cm) 9 /" (24.2 cm)
H 17 /"(44 cm) 17 /"(44 cm)
C
D
B
G
F
A
E
ECTX36SS ECTX48SS
A 36" (91.6 cm) 48" (122.1 cm)
B 34" (86.5 cm) 34" (86.5 cm)
C 5" (12.6 cm) 5" (12.6 cm)
D 22
/
" (56.2 cm) 22 1/8" (56.2 cm)
E 11
/
" (30 cm) 11
/
" (30 cm)
F 12
/
" (30.8 cm) 18
/
" (46 cm)
G 15
/
"(38.9 cm) 15
/
"(38.9 cm)
PARTS INCLUDED / PIÈCES INCLUSES / PIEZAS INCLUIDAS
Vertical supports /
Supports verticaux /
Soportes verticales
2
Horizontal support /
Support horizontal /
Soporte horizontal
1
Hood insert rear bracket (only for
ETRXXXXX hood models) / Support du
arrière de l'insert de capot (uniquement
pour ETRXXXXX modelès) / Soporte
trasero del inserto del capó (sólo para
modelos ETRXXXXX)
1
Cabinet /
Armoire /
Gabinete
1
Min. hood installation height for gas cooktop / Hauteur
minimum d'installation de la hotte pour une table de
cuisson à gaz / Altura mínima de instalación de la
campana para superficie de cocina de gas
30" (76.2 cm)
Min. hood installation height for electric cooking surface /
Hauteur minimale d'installation de la hotte pour une surface
de cuisson électrique / Altura mínima de instalación de la
campana extractora para la superficie de cocción eléctrica
24" (61 cm)
Cabinet / Armoire / Gabinete Hood / Hotte /Campana
EORX36SS EAR634SS & EAR134S4
EORX48SS EAR140S4
ECTX36SS ETR134S1 & ETR634SS
ECTX48SS ETR146SS
Hardware bag with /Sac de matériel avec /Bolsa de herramientas con:
3.5 x 9.5 mm screws /Vis 3.5 x 9.5
mm /Tornillos 3.5 x 9.5 mm
12
Clip nuts / Ecrous de fixation /
Tuercas de clip
4
6 x 16 mm screws /Vis 6 x 16 mm /
Tornillos 6 x 16 mm
4
5.4 x 75 mm screws /Vis 5,4 x 75 mm
/ Tornillos 5.4 x 75 mm
22
10 x 50 mm anchors /
Ancrages 10 x 50 mm /
Taquetes de de 10 x 50 mm
22
5.3 x 20 mm washers /
Rondelles de 5,3 x 20 mm /
Arandelas de 5.3 x 20 mm
22
Wall mounting template/
Gabarit de montage mural /
Plantilla de montaje para pared
1
Ceiling mounting template/
Gabarit de montage au plafond /
Plantilla de montaje para techo
1
FOG0182625B
