GEIST™ SWITCHAIR

AIRFLOW MANAGEMENT DEVICE

Quick Installation Guide

VM1180/590-2244-501A 1

Models:

SA2-004

Switch Type:

Front (Port) Air Intake - Rear

Exhaust 1U Switches

CAUTION: Ensure the required

airflow for safe operation of

equipment is not compromised

when installing the Geist SwitchAir

device.

WARNING: Take precaution to

avoid interference with the switch’s

input power cords when installing

behind a live switch.

1. Installing the airflow

channel

Using customer-provided

hardware, insert the cage nuts

into the four holes on the front

of the channel.

Select a 2U space in the rack.

With the channel facing the

centerline of the rack, hold the

channel on the inside of the left

rack upright. Fasten in place

using screws only in the top and

bottom holes of the 2U space.

Repeat the procedure to install

the airflow channel on the

opposite side.

2. Installing the switch

Slide the network switch into

the bottom 1U at the rear of the

rack’s 2U space. Using

customer-provided cage nuts

and screws, mount the switch

to the rear rack uprights.

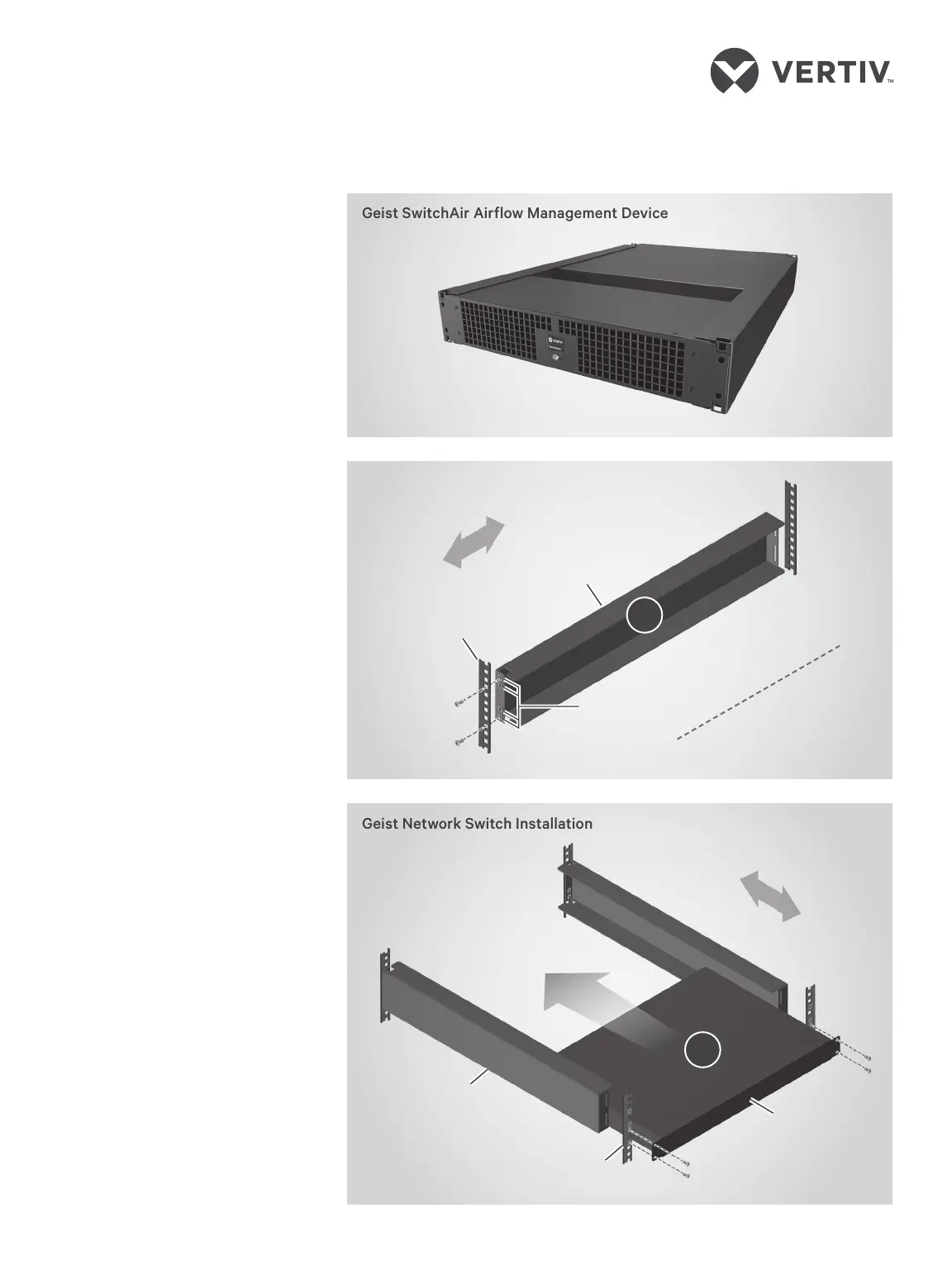

Geist Network Switch Installation

Geist SwitchAir Airflow Management Device

Geist SwitchAir Rack Rail Installation

Left front

rack upright

Top and bottom

screws of 2U space

CENTERLINE

OF RACK

Cage nuts x4

RACK

FRONT

RACK

REAR

Left rear

rack upright

Network

switch

RACK

FRONT

RACK

REAR

Side airflow

channel

Side airflow

channel

Produkspesifikasjoner

Merke:	Emerson
Kategori:	Ikke kategorisert
Modell:	SA2-004
Vekt:	6800 g
Bredde:	432 mm
Dybde:	178 mm
Høyde:	87 mm
Bruksanvisning:	Ja
Rammetype:	Åpen ramme
Sertifisering:	CE, FCC Part 15 Class A Conformance, UL & c-UL Listed 60950
Maksimal luftstrøm:	94 cfm
AC-inngangsspenning:	90 - 264 V
AC-inngangsfrekvens:	50 - 60 Hz
Produktfarge:	Sort
Kabler inkludert:	AC
Bærekraftsertifikater:	RoHS
Rack-kapasitet:	2U
Rack-montering:	Ja
Form for nedkjøling:	Aktiv
Innput-strøm:	0.5 A
