GB LED Highbay
CZ LED Svítidlo pro vysoké stropy (Highbay)
SK LED Svietidlo pre vysoké stropy (Highbay)
PL LED High-bay
HU LED-es szerelvény High-bay világításhoz
SI LED svetilka za visoke strope (Highbay)
RS|HR|BA|ME LED držači svjetla za High-bay rasvjetu
DE LED-Hallenleuchte (Highbay)
UA Cвітлодіодний світильник для високої стелі (Highbay)
RO|MD Lampă LED pentru tavane înalte (Highbay)
LT Pramoninių šviestuvų LED šviestuvo tvirtinimas (Highbay)
LV
LED gaismekļa stiprinājums augstu griestu apgaismojumam
(Highbay)
EE LED-valgustusseade kõrgjoaga valgusti jaoks (Highbay)
BG LED осветително тяло за помещения с високи тавани (Highbay)
FR Luminaire à LED pour plafond haut (Highbay)
IT Lampada da sotto a LED (Highbay)
ES Campana LED para techos altos (Highbay)
NL LED-verlichtingsarmatuur voor hoge plafonds (Highbay)
www.emos.eu
ZU210.12
ZU210.9
ZU210.6
ZU215.12
ZU215.9
ZU215.6
ZU220.12
ZU220.9
ZU220.6
2
1 2
6
4
3
5
7 8
Mounting
A
Mounting
B
3
1 2

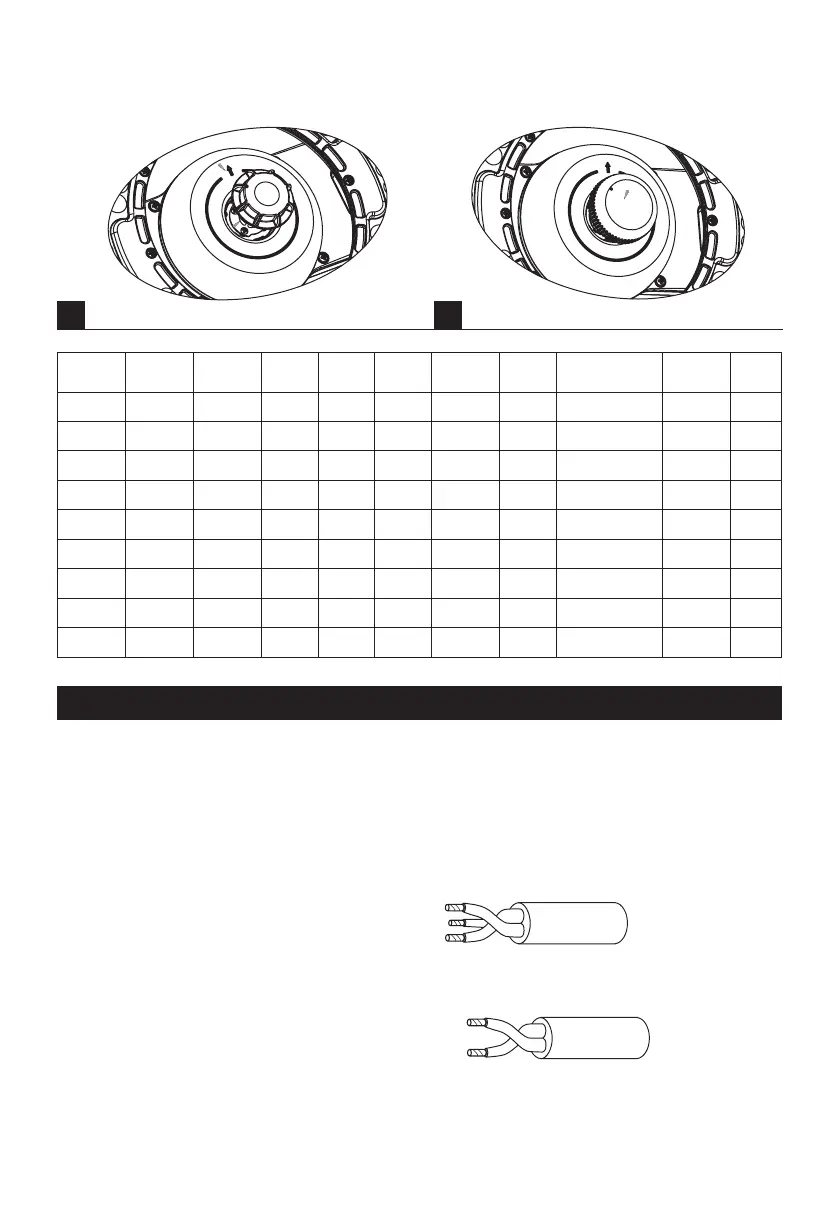

Model Voltage Frequency CCT Wattage PF Lumen Beam Angle Dimension
Working
temperature
Weight
ZU210.12 100–277 V 50/60 Hz 4 000 K 100 W ≥0.9 17 000 lm 120° ø 265 × 163 mm -35~+50°C 2.15 kg
ZU210.6 100–277 V 50/60 Hz 4 000 K 100 W ≥0.9 17 000 lm 60° ø 265 × 163 mm -35~+50°C 2.15 kg
ZU210.9 100–277 V 50/60 Hz 4 000 K 100 W ≥0.9 17 000 lm 90° ø 265 × 163 mm -35~+50°C 2.15 kg
ZU215.12 100–277 V 50/60 Hz 4 000 K 150 W ≥0.9 25 500 lm 120° ø 300 × 173 mm -35~+50°C 2.65 kg
ZU215.6 100–277 V 50/60 Hz 4 000 K 150 W ≥0.9 25 500 lm 60° ø 300 × 173 mm -35~+50°C 2.65 kg
ZU215.9 100–277 V 50/60 Hz 4 000 K 150 W ≥0.9 25 500 lm 90° ø 300 × 173 mm -35~+50°C 2.65 kg
ZU220.12 100–277 V 50/60 Hz 4 000 K 200 W ≥0.9 34 000 lm 120° ø 340 × 178 mm -35~+50°C 3.25 kg
ZU220.6 100–277 V 50/60 Hz 4 000 K 200 W ≥0.9 34 000 lm 60° ø 340 × 178 mm -35~+50°C 3.25 kg
ZU220.9 100–277 V 50/60 Hz 4 000 K 200 W ≥0.9 34 000 lm 90° ø 340 × 178 mm -35~+50°C 3.25 kg
Installation of Converters DALI
GB | LED Highbay
LED Highbay is designed for mounting onto a solid base or
for hanging both indoors and outdoors.
Ingress Protection IP65 – for outdoor use
Mounting

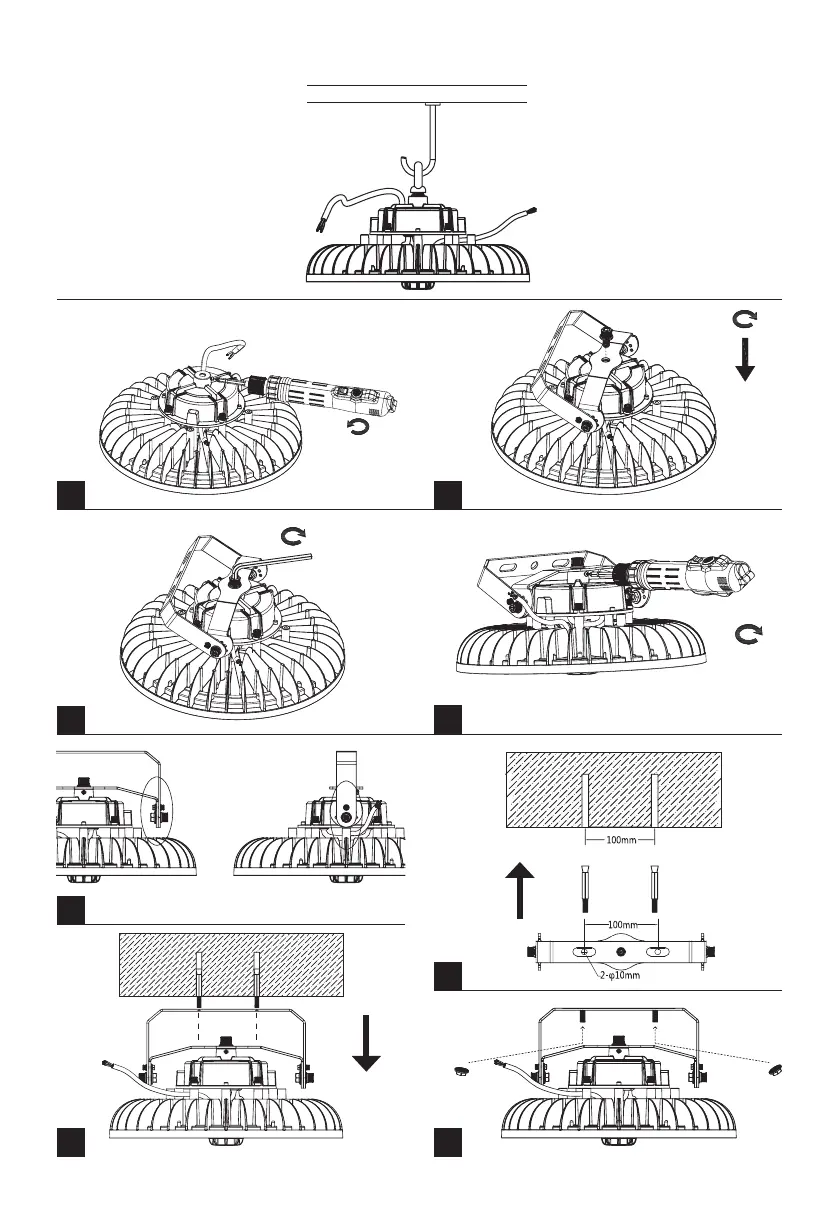

Method A: Loop
Install the loop with gasket to luminaire well in the specied
position.
Hang the luminaire well into the hook.
Wiring 1 to power supply cable: Brown-L; Blue-N; Green-G;
Wire 2 to dimmer: Purple – Dim+, Pink – Dim-.
Method B: Bracket
1. Use a tool to unscrew the auxiliary screws on the
mounting edge.
2. Place the bracket on the mounting connector, take
screws corresponding to the mounting connector from
the bracket kit and screw them into the mounting
connector
3. Use a hex wrench to tighten screws
4. Use tools to tighten auxiliary screws on the mounting
edge
5. Adjust the bracket to a proper installation angle and
tighten mounting screws on the side of the bracket
6. Drill the screw holes on the ceiling according to recom-
mended size and drive expansion screws into the holes
7. Align expansion expansion screw with the mounting
hole of the bracket and pass through the mounting hole
of the bracket
8. Tighten the washer and nut of the expansion screw.
9. Wiring 1 to power supply cable: Brown-L; Blue-N; Gre-
en-G; Wiring 2 for dimming: Purple – Dim+, Pink – Dim-
Installation height 2.5 m.
L
G
N
L – brown – live wire
G – green&yellow – earth wire (ground)
N – blue – neutral wire
Dim +
Dim -
Dim+ – purple – Dimming +
Dim- – pink – Dimming –
Dimming can be realised in two ways via convertors ZU9001
and ZU9002: 0–10 V, DALI.
